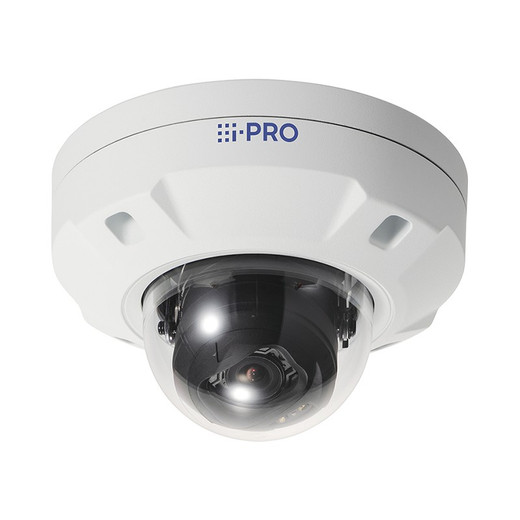

i-PRO WV-S25500-V3LN B1 5MP Vandal Resistant Dome Camera
The i-PRO WV-S25500-V3LN B1 is a high-performance 5MP network dome camera engineered for demanding outdoor surveillance in high-vandalism environments. Built on i-PRO's proven S-series platform, this camera combines professional-grade imaging with integrated AI analytics, making it ideal for security integrators deploying systems across retail, transportation, municipalities, and industrial facilities. Its IK10 vandal-resistant construction and IP66/NEMA 4X weatherproofing deliver reliability in harsh conditions, while advanced video processing and intelligent analytics reduce false alarms and operational overhead.
Key Features
- 5MP Resolution with 132dB Super Dynamic Range: Captures 3072×1728 pixel video with exceptional clarity in high-contrast scenes, simultaneously rendering detail in both bright sunlit areas and deep shadows without loss of subject identification.
- Integrated AI Engine with Multi-Application Support: Runs up to three simultaneous AI analytics applications from i-PRO's library, including people and vehicle detection with precision that dramatically reduces false alarm rates versus conventional motion detection.
- Color Night Vision: Delivers color video in extreme low-light conditions (0.05–0.07 lux) using built-in IR LED illumination, enabling 24/7 color identification without thermal artifacts or loss of detail.
- 3.1x Optical Zoom with Varifocal Lens: 2.9–9mm varifocal lens provides flexible field-of-view adjustment from installation, reducing the need for multiple cameras in monitored areas.
- Efficient H.265 Compression: Advanced video encoding minimizes bandwidth and storage requirements while maintaining image fidelity—critical for bandwidth-constrained networks and extended recording periods.
- PoE Power and ONVIF Compatibility: Single Ethernet connection delivers power and video data; ONVIF profile support ensures interoperability with standard VMS platforms and third-party integration.
Technical Specifications
- Durability: IK10 vandal rating (IEC 62262), IP66 weatherproofing (IEC 60529), NEMA 4X/Type 4X (UL50E) construction for outdoor extremes.
- Temperature Range: Operating −40°C to +60°C (−40°F to +140°F); power-on range −30°C to +60°C (−22°F to +140°F).
- Audio Support: Built-in audio input for two-way communication or incident verification.
- Storage: MicroSD card slot for local backup and edge recording.
- Security: NDAA Compliant, FIPS 140-2 Level 3 (EdgeLock SE050F), signed firmware, HTTPS encryption.
- Video Codecs: H.265, H.264, MJPEG support for codec flexibility and bandwidth optimization.
Ideal Applications
Retail loss prevention, parking lot and perimeter monitoring, municipal traffic enforcement, industrial facility access control, transportation hubs, and critical infrastructure protection. The combination of vandal resistance, intelligent analytics, and all-weather durability makes this camera suitable for both indoor ceiling/wall mount and outdoor installations requiring maximum uptime.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-S25500-V3LN B1 stands out in the mid-range dome segment for its balanced approach to hardware robustness and software intelligence. The IK10 rating combined with IP66 sealing addresses the top failure points in outdoor deployments—impact damage and moisture ingress. The integrated AI engine eliminates the computational burden on backend servers, enabling smarter detection at the edge without licensing per-camera analytics modules.
Super Dynamic Range at 132dB is particularly valuable in environments with mixed indoor-outdoor views or highly reflective surfaces common in retail and transportation settings. Color night vision at 0.05 lux (roughly equivalent to starlight) with built-in IR removes the need for separate lighting infrastructure while maintaining subject color identification critical for investigative footage review. FIPS 140-2 Level 3 certification and NDAA compliance address regulatory requirements for government and critical-infrastructure deployments.
The varifocal lens and compact dome form factor make this camera adaptable to diverse mounting scenarios without sacrificing impact protection or weatherproofing. PoE Class 0 power consumption keeps network switch port utilization low, allowing dense deployments on standard infrastructure.
Product Documentation
