i-PRO WV-S25500-V3LN1 5MP Vandal Resistant Dome

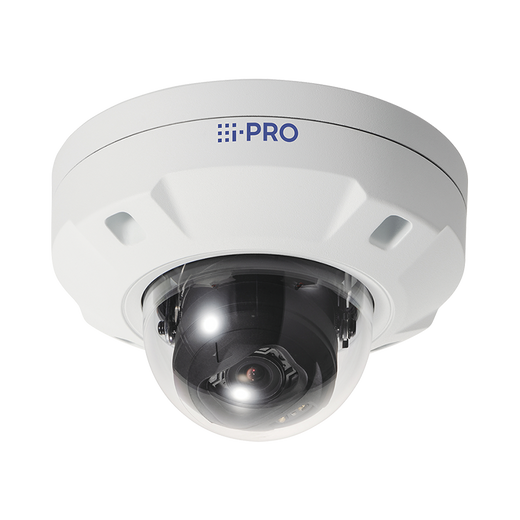

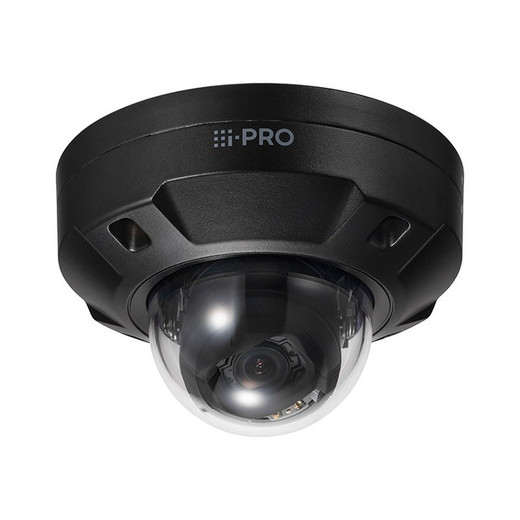

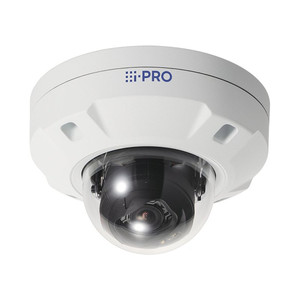

i-PRO WV-S25500-V3LN1 5MP Vandal Resistant Dome Camera

The i-PRO WV-S25500-V3LN1 is a 5MP network dome camera engineered for demanding outdoor and indoor security deployments requiring exceptional vandal resistance and AI-driven analytics. Combining high-resolution imaging with an onboard triple AI engine, this camera delivers intelligent surveillance across retail, transportation, industrial, and municipal environments while maintaining color visibility around the clock.

Key Features

• 5MP Resolution (2560 x 1920): 1/2.8" CMOS sensor captures forensic-grade detail across wide deployment areas
• Triple AI Analytics Engine: Runs up to three simultaneous AI applications including people and vehicle detection, significantly reducing false alarms versus conventional motion detection
• Super Dynamic 132dB WDR: Delivers artifact-free images across extreme brightness variations—essential for outdoor deployments spanning shadows and direct sunlight
• Color Night Vision (0.05–0.07 lx): Maintains full-color imagery at extremely low light levels without relying on infrared, enabling 24/7 color identification of people and vehicles
• Built-in IR LED (55m Range): Supplementary infrared illumination for complete darkness scenarios
• IK10 Vandal Rating: Impact-resistant dome withstands aggressive physical tampering, ideal for high-crime or unsupervised areas
• 3.1x Optical Zoom (2.9–9mm): Variable focal length lens provides flexible framing for diverse scene compositions
• PoE Powered: Single Ethernet connection delivers power and network connectivity, simplifying installation
• H.265 Compression: Reduces bandwidth and storage requirements by up to 50% versus H.264 without sacrificing image quality
• IP66 & NEMA 4X Rating: Sealed against dust, rain, and corrosive environments for reliable outdoor performance
• FIPS 140-2 Level 3 Compliant Secure Element: EdgeLock® SE050F (NXP® Semiconductors) provides tamper-resistant cryptographic protection
• AI Sound Classification: Audio detection with intelligent classification for multi-modal threat identification
• ONVIF Compatible: Integrates seamlessly with third-party VMS platforms
• MicroSD Storage: Local edge storage for video backup and redundancy

Technical Highlights

The WV-S25500-V3LN1 combines form factor versatility with enterprise-grade security. Ceiling and wall mounting options accommodate diverse installation geometries. Advanced video analytics—including Scene Change Detection (SCD), Privacy Zones, and Video Motion Detection (VMD)—enable intelligent event filtering at the edge, reducing alarm noise and improving response efficiency.

The integrated AI processor executes facial recognition and behavior analysis without cloud dependency, preserving privacy and guaranteeing compliance with data protection regulations. HTTPS encryption and signed firmware protect against unauthorized access and firmware tampering.

Ideal Applications

Retail loss prevention, perimeter security, parking structure monitoring, traffic enforcement, municipal public safety, and industrial facility access control.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S25500-V3LN1 represents i-PRO's commitment to edge intelligence in vandal-resistant form factors. The IK10 rating and IP66 sealing make it suitable for unsecured outdoor environments where conventional cameras fail. The triple AI engine distinguishes this model from single-algorithm competitors—running facial recognition alongside vehicle detection and custom behavioral analytics simultaneously reduces operational latency and eliminates the need for external GPU acceleration.

The 132dB Super Dynamic range is critical in high-contrast scenes (e.g., parking lots at sunset); cheaper competitors often produce blown-out highlights or crushed shadows in such conditions. Color night vision at 0.05–0.07 lx outperforms many 2MP alternatives, preserving evidentiary detail when conventional IR mode yields monochrome-only footage.

H.265 compression paired with PoE Class 0 power delivery enables cost-effective scaling across large deployments. The FIPS 140-2 secure element addresses enterprise compliance requirements, particularly for government and financial sector mandates. ONVIF compatibility ensures vendor lock-in is avoided, protecting infrastructure investment over multi-year lifecycles.
