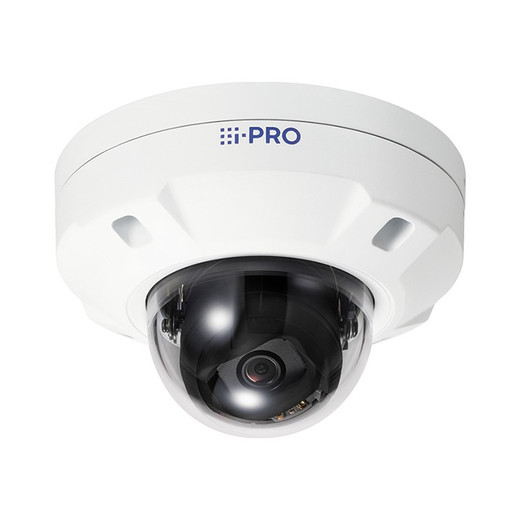

i-PRO WV-S25500-F3L 5MP Vandal-Resistant Outdoor Dome Camera
The WV-S25500-F3L is a 5MP outdoor dome engineered for high-vandalism and harsh-weather deployments where physical durability and continuous threat detection must work around the clock. Built on a 1/2.8-inch CMOS sensor with a rigid IK10-rated polycarbonate dome, this camera combines extreme low-light imaging, on-board AI analytics, and single-cable PoE installation into a compact form factor designed to survive aggressive environments.
Key Features
- 5MP Resolution with 132dB Super Dynamic Range: Captures fine detail in outdoor scenes where bright sunlight and deep shadows coexist. The 132dB WDR ensures usable video across the entire brightness spectrum—parking lots against bright sky, warehouse loading docks with window glare, perimeter entry points with mixed lighting—without sacrificing shadow or highlight detail. This translates directly to fewer manual reviews and better forensic evidence if incidents occur.
- Color Night Vision at 0.12–0.17 lux with 35-Meter IR Range: A 50-joule infrared LED array delivers identification-quality color video in near-total darkness. At 35 meters (115 feet) effective range, this covers typical perimeter fencing, loading dock approaches, and facility exterior zones without requiring separate lighting infrastructure or supplemental illumination equipment. No more underexposed, grayscale nighttime footage.
- IK10 Vandal Impact Rating with Dome Housing: Withstands deliberate strikes from thrown objects or aggressive contact. The rigid polycarbonate dome and reinforced mounting structure are built for high-vandalism sites—detention facilities, public transit hubs, outdoor warehouses with transient traffic. If your site has a history of dome impacts or is in a known high-crime area, this rated construction justifies the dome form factor over a bullet or turret variant.
- Embedded AI Engine with Three Concurrent Analytics Workloads: Runs people detection, vehicle detection, scene change, motion detection, and sound classification simultaneously on the edge—no separate analytics server or cloud subscription required. Edge processing means faster alerts, reduced bandwidth consumption, and continued operation even if your NVR or network connection fails. For warehouse automation and perimeter security, this on-camera intelligence reduces false alarm overhead compared to generic motion detection.
- H.265 Compression for Storage and Bandwidth Efficiency: Delivers the same visual quality as H.264 at roughly 40–60% lower bitrate depending on scene complexity. Across 24/7 multi-camera deployments, this cuts storage footprint and network load significantly—a real factor when bandwidth is limited or storage budgets are tight. Fallback codecs (H.264, MJPEG) ensure compatibility with legacy VMS systems if needed.
- IP66 / NEMA 4X Environmental Sealing: Sealed against dust and direct rain. Water will not penetrate the housing or degrade image quality during storms or high-pressure washdowns. However, IP66 does not cover full submersion; if your installation involves water jets or complete submersion, you need an IP67-rated model instead.
- PoE Powered at under 13 Watts (802.3af Class 0): Draws minimal current, so standard 802.3af PoE injectors or midspan switches handle this camera without overload. A single RJ-45 cable delivers both power and Ethernet—no separate DC supply, no additional conduit, no splice boxes. Reduces installation complexity and eliminates redundant infrastructure.
- 3.2mm Fixed Lens, 88° Horizontal Field of View: Wide horizontal coverage suitable for entrance/exit points, general perimeter monitoring, and facility gates. This fixed focal length is not adjustable; if you need variable zoom for distant threat identification or narrow telephoto coverage, consider a motorized varifocal or PTZ variant in the same i-PRO family instead.
- ONVIF Profile S Compatibility: Integrates with any ONVIF-compliant video management system—Milestone XProtect, Genetec, Hanwha SmartVMS, Axis Camera Station—without proprietary integrations. Supports multi-manufacturer camera deployments and avoids vendor lock-in.
- microSD Local Edge Recording: Records directly to a microSD card as failover storage if your NVR or network connection fails. Provides business continuity without a separate DVR or cloud subscription dependency. Useful for temporary evidence preservation during network outages.
- FIPS 140-2 Level 3 Cryptographic Compliance: Includes an EdgeLock secure element (SE050F) for firmware signing and encrypted credential storage. Meets federal cryptographic standards and DoD cybersecurity baselines for government and critical infrastructure deployments.
Integration & Compatibility
The WV-S25500-F3L (often searched as WV S25500 F3L) is designed for multi-vendor IP surveillance networks. ONVIF Profile S support means it works alongside any standards-compliant camera and NVR. If you are deploying across multiple sites or upgrading existing camera infrastructure, the WV-S25500-F3L integrates without requiring separate VMS licenses or proprietary middleware. Consult your NVR documentation to confirm PoE power budget and supported video codecs before final procurement.
Frequently Asked Questions
Q: Is the WV-S25500-F3L suitable for direct-mounted outdoor installations without a protective housing?
A: Yes. The IP66 / NEMA 4X rating and dome construction handle direct rain, dust, and outdoor elements without requiring an additional protective shroud. The IK10 vandal rating provides physical impact protection. No supplemental enclosure needed for typical outdoor deployments, though you may choose to mount it under a soffit or eave to extend component lifespan in severe salt-spray or UV-intensive environments.
Q: What is the maximum IR illumination range, and does it perform in complete darkness?
A: The 50-joule LED array delivers identification-quality color imagery at a 35-meter (115-foot) effective range. At 0.12–0.17 lux minimum illumination, it performs in near-total darkness. Yes, it delivers usable color video at night without supplemental lighting, though outdoor ambient light (street lamps, distant buildings) will extend color performance beyond the IR range.
Q: Can the WV-S25500-F3L run multiple AI detection tasks at the same time?
A: Yes. The embedded AI engine supports three concurrent analytics workloads—you can run people detection, vehicle detection, and scene change simultaneously without degrading frame rate or requiring external processors. Sound classification is also available as an additional workload, making it flexible for multi-threat monitoring scenarios.
Q: What codecs does the WV-S25500-F3L support, and is H.265 mandatory?
A: The camera supports H.265, H.264, and MJPEG. H.265 is the default and delivers roughly 40–60% bitrate savings compared to H.264 at equivalent quality. If your VMS or recording system only supports H.264 or MJPEG, the camera can fall back to those codecs on-the-fly with no loss of image quality—just higher bandwidth consumption.
Q: Does the WV-S25500-F3L work with Milestone XProtect or other third-party VMS platforms?
A: Yes. ONVIF Profile S compliance ensures compatibility with Milestone XProtect, Genetec, Hanwha SmartVMS, Axis Camera Station, and any other ONVIF-certified VMS. No proprietary integrations or additional licensing required. Confirm your VMS version supports H.265 decoding if you intend to use that codec; older VMS releases may require H.264 fallback.
Q: Is the 3.2mm fixed lens wide enough for my facility entrance?
A: The 3.2mm fixed lens delivers an 88° horizontal field of view—suitable for typical entrance/exit points and general perimeter coverage. If you need narrower telephoto coverage (e.g., license plate or facial identification at distance) or variable zoom, consider a motorized varifocal or PTZ variant in the i-PRO outdoor camera line instead.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I recommend the WV-S25500-F3L for any fixed outdoor perimeter application where vandalism is a real risk and your infrastructure budget won't stretch to PTZ units. The IK10 rating combined with the 5MP, 88° coverage makes this a credible workhorse for warehouse entry points, parking structure ramps, and facility gates. The 132dB WDR and 35-meter IR range deliver usable forensic video in lighting conditions that typically kill budget cameras—that's the spec that justifies the mid-range price.
Technical Highlights:
- 132dB Super Dynamic Range: In mixed outdoor lighting (e.g., bright sky + shadowed loading dock), you get detail at both ends without HDR artifacts or processing overhead. This is better than competing 5MP domes at similar price points and means fewer post-incident "I can't see the face" complaints from security teams.
- 35-Meter IR with 50-Joule LED Array: Long enough to cover typical facility perimeter zones. The color-at-night capability (0.12–0.17 lux) is genuine—you're not switching to IR monochrome and losing identification detail. That matters for detention and critical infrastructure sites.
- Three Concurrent AI Workloads on Edge: People detection + vehicle detection + scene change running simultaneously means faster incident flagging and reduced NVR processing load. For warehouse automation integrations, this on-camera intelligence cuts bandwidth vs. centralized analytics by roughly 30–40% in typical outdoor scenes.
- H.265 with H.264 Fallback: 40–60% bitrate reduction is real across 24/7 deployment. If you're recording 40+ outdoor domes on a single NVR, H.265 buys you another 6–12 months of storage without expanding disk.
Deployment Considerations:
- The 3.2mm fixed lens is a hard boundary—no zoom, no variable focal length. If you discover mid-deployment that you need license-plate or facial coverage at 50+ feet, you'll need a separate varifocal or PTZ unit. Confirm lens adequacy in site survey before committing to quantity buys.
- IP66 sealing is excellent for rain and washdown, but not full submersion. If your site has flash-flood risk or installation near water features, verify that standing water won't contact the dome seam or mounting base—IP67 or equivalent is better for those scenarios.
- PoE at under 13W is a strength, but on shared PoE switches (mixed camera loads), verify total budget before deployment. If you're adding this to a legacy switch with 60W available and 50W already allocated, you're cutting margins thin.
Position the WV-S25500-F3L for warehouse entry/exit points, outdoor loading docks, high-vandalism perimeter zones, and detention facility exteriors where you need rock-solid daylight/nighttime coverage in a form factor that punches back. It's not a Swiss Army knife—it's a specialized tool that excels at what it does.
