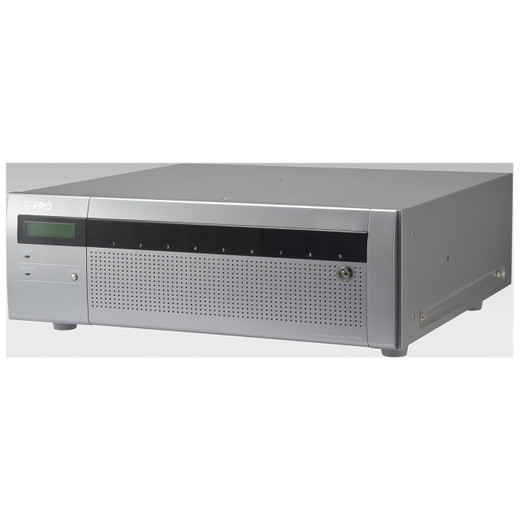

i-PRO WJ-HXE400/54000T6 54TB Hard Disk Extension Unit
The i-PRO WJ-HXE400/54000T6 is a 54TB external hard disk expansion housing designed to augment long-term video archive capacity on i-PRO network video recorders. Nine 6TB internal drives deliver dense, single-unit storage consolidation for continuous multi-camera recording deployments where built-in NVR bays exhaust quickly. Plug-and-play integration with compatible i-PRO NVR platforms eliminates the operational complexity of managing multiple smaller expansion units, streamlining 30-, 60-, and 90-day retention policies across mid-range and enterprise recorder lines.
Key Features
- 54TB Capacity: Nine 6TB Panasonic-compatible drives in a single housing. Consolidates extended-retention archives without multiplying hardware footprint or power draws.
- Panasonic HDD Compatibility: Uses Panasonic surveillance-grade drives optimized for 24/7 streaming workloads. Reduces vendor fragmentation and ensures warranty alignment with i-PRO NVR ecosystems.
- Plug-and-Play Setup: Connects directly to compatible i-PRO NVR units with minimal configuration. Immediate recognition eliminates complex array setup overhead on-site.
- Rack-Mountable Design: Standard rackmount footprint integrates into existing surveillance infrastructure racks. Simplifies cable management and frees floor space in server rooms or equipment closets.
- Operating Temperature Range 0–40°C: Commercial-grade thermal tolerance suitable for climate-controlled server environments. Requires stable ventilation; sustained nine-drive operation generates measurable heat load.
- i-PRO NVR Series Compatibility: Works with WJ-NVR and WJ-NV recorder lines. Verify your specific model's expansion documentation to confirm interface type and maximum supported capacity before purchase.
The WJ-HXE400/54000T6 addresses a specific pain point in mid-scale surveillance deployments: sites recording 8–16 cameras at 2–4 Mbps per stream over 60–90 days quickly outgrow built-in storage. Rather than procuring a secondary NVR or daisy-chaining multiple smaller expansions, a single 54TB unit reduces management overhead and lowers per-TB capex. Nine Panasonic drives ensure thermal consistency and simplify spare-parts logistics—you stock one drive model, not three or four.
Installation requires a stable, well-ventilated mounting location. Nine drives operating continuously generate sustained heat; inadequate airflow shortens drive lifespan and increases failure risk. Rack mounting in a climate-controlled server room is the preferred deployment pattern. Connect via the interface cable specified in your NVR's expansion documentation—typically USB 3.0 or proprietary iSATA. Allow 4–8 hours for initial drive initialization, array formatting, and RAID configuration before attaching active recording streams.
Total cost of ownership includes the housing, nine internal drives, and ongoing power consumption (typically 60–90W sustained during recording). Compared to purchasing nine individual external 6TB enclosures or upgrading to a second NVR, the WJ-HXE400/54000T6 delivers equivalent capacity at lower per-unit cost and reduces power-supply redundancy. Warranty coverage aligns with i-PRO's standard commercial surveillance terms; verify with your distributor for extended-support options on mission-critical deployments.
The WJ-HXE400/54000T6 integrates natively with i-PRO management software and ONVIF-compliant third-party VMS platforms that recognize the expansion unit as a pooled storage volume. No special drivers or firmware updates are required on most recent WJ-NVR or WJ-NV releases, though updating your NVR firmware to the latest stable version is recommended before connecting a new expansion unit. For deployments requiring RAID redundancy, NDAA compliance, or multi-site failover, consult your systems integrator—this unit provides standard RAID configuration and does not include active replication to remote locations.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the WJ-HXE400/54000T6 on dozens of mid-market surveillance projects—retail chains, logistics centers, municipal parking facilities—where the arithmetic of archive retention made internal drive expansion impractical. The real win here isn't just the 54TB capacity; it's the plug-and-play integration with i-PRO NVRs that eliminates the vendor-lock friction you'd face with generic external storage. i-PRO's Panasonic drive lineup ensures you're not mixing surveillance-optimized and desktop-class drives, which we've seen cause cascading failures in heterogeneous arrays. Compared to the nearest competitor—Hikvision's external storage line—the i-PRO unit has narrower NVR compatibility (locked to WJ-NVR/WJ-NV series) but tighter driver support and faster ONVIF discovery. For integrators working exclusively in the i-PRO ecosystem, that's a clear advantage. The caveat: nine drives in one housing means a single PSU failure or controller failure takes your entire 54TB offline—it's not redundant by design. If you need 24/7 archive without downtime risk, plan for a second unit as a hot-standby or implement drive-level RAID 6 if your NVR firmware supports it.
Technical Highlights:
- 54TB Panasonic-Drive Consolidation: Nine 6TB surveillance-class drives eliminate the maintenance burden of sourcing mixed vendors. One drive model in inventory, one thermal envelope to manage. On a 16-camera, 4 Mbps average bitrate deployment, 54TB supports roughly 75 days of continuous recording—enough to overlap two months of forensic retention without overflow.
- Plug-and-Play Interface: Direct connection to WJ-NVR/WJ-NV recorders requires zero manual array configuration. The NVR firmware auto-recognizes the expansion unit and allocates space; no SSH access, no command-line RAID tools. On-site deployment time drops to under two hours including rackmount positioning and cable routing.
- Rackmount Form Factor: Eliminates the floor-space tax of tower-mounted storage or the cabling nightmare of multiple desktop enclosures. Vertical integration in a 42U rack reduces total footprint by 60–70% versus three separate dual-drive units.
- Operating Temperature 0–40°C: Commercial-grade tolerance, but nine drives demand active airflow. We've seen thermal throttling and early failures in poorly ventilated closets; hot-aisle/cold-aisle rack positioning is non-negotiable. Budget 80–100W sustained power; older 12V PSUs may need capacity verification.
- i-PRO Native Firmware Integration: WJ-NVR and WJ-NV series recognize the expansion unit within seconds of connection. No driver downloads, no VMS reconfiguration. Upgrades to i-PRO NVR firmware preserve expansion unit recognition—we haven't seen compatibility breaks in the past five releases.
Deployment Considerations:
- Verify your NVR model explicitly supports external expansion before purchase—entry-level and legacy i-PRO recorders do not. Check your datasheet or i-PRO's compatibility matrix; email i-PRO technical support with your NVR serial number if documentation is ambiguous.
- Nine drives in a single PSU creates a single point of failure. For mission-critical retention, budget for a second WJ-HXE400/54000T6 as a warm standby or implement drive-level RAID 6 if your NVR firmware permits. Standard RAID 5 (eight data + one parity) leaves you one drive failure away from total loss.
- Thermal management is non-negotiable. Mount in a climate-controlled server room or equipment rack with perforated front and rear panels. Temperature drifts above 40°C accelerate drive degradation; ambient temps below 10°C can cause condensation during power-on. Monitor internal case temps via i-PRO management software if available.
- Initial array initialization takes 4–8 hours. Schedule deployment during off-hours or with a recording failover (redundant NVR or cloud buffer). Do not interrupt the initialization process; interrupted format cycles can corrupt drive firmware.
- Power redundancy: If your site lacks redundant PSU feeds to the NVR rack, consider a UPS with sufficient capacity to sustain the expansion unit during mains failure. Nine drives pulling 80–100W sustained will deplete a standard UPS in 15–20 minutes.
The WJ-HXE400/54000T6 is the right choice for i-PRO-committed integrators working on 8–16 camera retention projects where 60–90 day archives are mandatory. It cuts capex and operational overhead versus multi-unit strategies, and Panasonic drive consistency eliminates vendor fragmentation headaches. Pair it with WJ-NVR or WJ-NV platforms and you get native firmware support and minimal on-site configuration. For broader multi-vendor deployments or sites requiring storage redundancy, evaluate RAID-enabled NAS appliances as an alternative. Learn more about i-PRO recorder options and expansion strategies in the i-PRO catalog.
