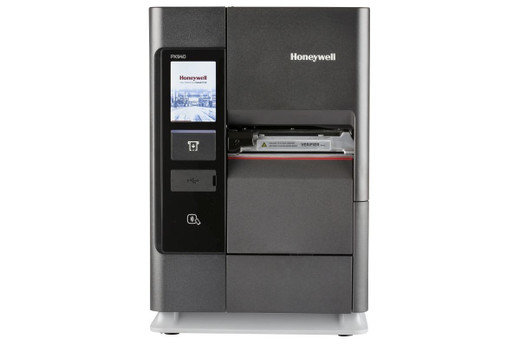

Honeywell PX940 Industrial Label Printer with Verifier

Honeywell PX940 Industrial Label Printer with Verifier

The Honeywell PX940V30100060200 is a production-grade industrial label printer engineered for high-volume thermal transfer printing with integrated barcode verification. Built for warehouse, manufacturing, and distribution environments, this system eliminates offline verification by grading every printed label at the point of production to ISO standards (1D and 2D barcodes), ensuring regulatory compliance and supply chain accuracy without workflow interruption.

Key Features

• 203 DPI thermal transfer printing at 25–350 mm/s (1–14 ips) for sharp, scannable output
• Integrated barcode verifier: 1D (ISO/IEC 15416) and 2D (ISO/IEC 15415) grading
• Rewinder, peeler, and label-taken sensor for automated label handling
• Dual-core ARM Cortex-A9 1 GHz processor with 1 GB DDR3 SDRAM
• 3.5-inch color touchscreen for intuitive job setup and real-time monitoring
• 450 m ribbon capacity with ink-in/ink-out configuration
• Multi-protocol support: ZPL II, ZSim2, Direct Protocol, Fingerprint, Intermec Printer Language
• Wired and wireless connectivity: Ethernet, USB 2.0, RS-232, Bluetooth, NFC

Technical Specifications

• Print Method: Direct thermal and thermal transfer
• Resolution: 203 DPI
• Media Capacity: 213 mm (8.38 in) maximum roll diameter
• Processor: Dual-core ARM Cortex-A9 @ 1 GHz
• Memory: 1 GB DDR3 SDRAM; 256 MB flash storage
• Display: 3.5-inch color touch LCD
• Operating Temperature: 5–40°C (41–104°F)
• Storage Temperature: −20–70°C (−4–158°F)
• Dimensions: 261 × 506 × 398.7 mm (10.3 × 19.9 × 15.7 in)
• Weight: 23.5 kg (51.8 lbs)

Why the PX940 Matters

Real-time barcode verification at print eliminates costly downstream quality failures. The integrated verifier grades labels immediately, allowing operators to reject and reprint non-compliant output before it enters the supply chain. This direct-at-source approach reduces waste, accelerates compliance audits, and maintains the high print consistency demanded by retail, pharmaceutical, and logistics operations.

The touchscreen interface and support for five printer-language emulations ensure seamless integration with existing warehouse management systems, ERP platforms, and legacy label workflows. With Ethernet, USB, Bluetooth, and NFC connectivity, the PX940 connects directly to dock-level networks without requiring separate print servers.

Thermal transfer printing delivers durability for outdoor labels, chemical-resistant tags, and high-impact shipping labels. The rewinder and peeler options automate post-print finishing, reducing manual handling and enabling unattended batch production.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PX940 is purpose-built for compliance-critical environments. The integrated verifier is not an afterthought—it is a core architectural feature that eliminates the need for external offline verification systems, saving floor space and labor. The 1 GB of RAM ensures smooth processing of complex graphical labels without throughput degradation, while the color touchscreen reduces operator training time.

For organizations managing SKU-heavy product lines or multi-tier distribution networks, the combination of high-speed printing (14 ips), real-time verification, and multi-protocol support represents a consolidated solution that reduces total cost of ownership. Suitable for mid-to-high-volume label production in FDA-regulated, GS1-compliance, or UL-audited environments.
