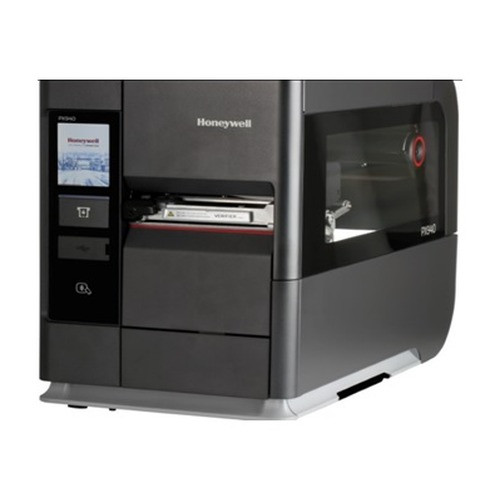

Honeywell PX940 Industrial Label Printer with Verifier

Honeywell PX940 Industrial Label Printer with Verifier

The Honeywell PX940 is a production-grade industrial label printer engineered for high-volume printing environments requiring integrated barcode verification. This 300 DPI thermal transfer system combines dependable print quality with real-time ISO-compliant barcode grading, eliminating offline verification steps and accelerating label production cycles in warehouse, manufacturing, and distribution operations.

Key Features

• 300 DPI thermal transfer printing at speeds up to 300 mm/s (12 ips) for crisp, consistently scannable output
• Integrated 1D and 2D barcode verifier with ISO/IEC 15416 and ISO/IEC 15415 compliance grading
• Rewinder, peeler, and label taken sensor for automated label handling and reduced manual intervention
• 3.5-inch color touch LCD display for intuitive job setup and real-time print monitoring
• Dual-core ARM Cortex-A9 processor with 1 GB DDR3 SDRAM for processing complex label templates and graphic-intensive designs
• 450 m maximum ribbon capacity with ink-in and ink-out configuration for extended production runs
• Multiple connectivity options: Ethernet, USB 2.0, RS-232, Bluetooth, and NFC for seamless warehouse management system integration
• Support for ZPL II, ZSim2, Direct Protocol, Fingerprint, and Intermec Printer Language for compatibility with legacy and modern workflows

Technical Specifications

• Print Resolution: 300 DPI
• Print Speed: 25–300 mm/s (1–12 ips)
• Print Method: Direct thermal and thermal transfer
• Media Support: Maximum roll diameter of 213 mm (8.38 in)
• Memory: 1 GB DDR3 SDRAM, 256 MB flash storage
• Operating Temperature: 5–40°C (41–104°F)
• Storage Temperature: –20–70°C (–4–158°F)
• Dimensions: 261 × 506 × 398.7 mm (10.3 × 19.9 × 15.7 in)
• Weight: 23.5 kg (51.8 lbs)

Applications

The PX940 delivers consistent performance across shipping label production, compliance label generation, product identification tagging, and supply chain tracking. Its integrated verifier ensures regulatory compliance and reduces costly label reprints, while automated label handling minimizes operator fatigue and maximizes throughput. Multi-protocol emulation support enables drop-in deployment in mixed-vendor environments without workflow disruption.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PX940 represents a mature, well-architected solution for operations prioritizing barcode accuracy alongside production speed. The integrated verifier—capable of grading both 1D and 2D codes to international standards—fundamentally changes the economics of label production by capturing verification failures at the point of print rather than during downstream scanning or regulatory audits. This real-time feedback loop is particularly valuable in pharmaceutical, food and beverage, and logistics sectors where barcode failures trigger costly recalls or compliance violations.

The combination of 1 GB DDR3 SDRAM, dual-core ARM processing, and support for five printer language emulations positions the PX940 as a bridge device—capable of handling legacy ZPL-based workflows while remaining forward-compatible with modern Android-based printing ecosystems. The 3.5-inch color touchscreen and Bluetooth/NFC connectivity reflect design decisions favoring operator usability and mobile device integration, reducing training overhead and enabling ad-hoc label production from warehouse floor devices.

For high-mix, moderate-volume production, the peeler and rewinder accessories justify the system's footprint and cost. However, ultra-high-speed operations (>400 mm/s) requiring label stacking or cutting will require consideration of larger industrial platforms. The US power cord specification indicates North American primary deployment, though ROW regulatory certification ensures global compatibility with regional power adapters.
