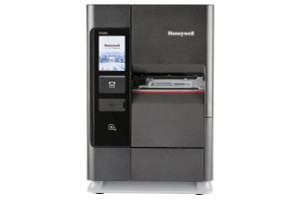

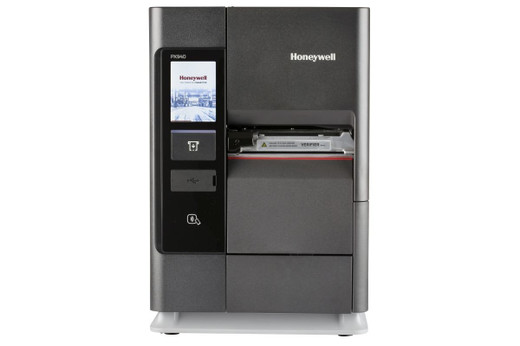

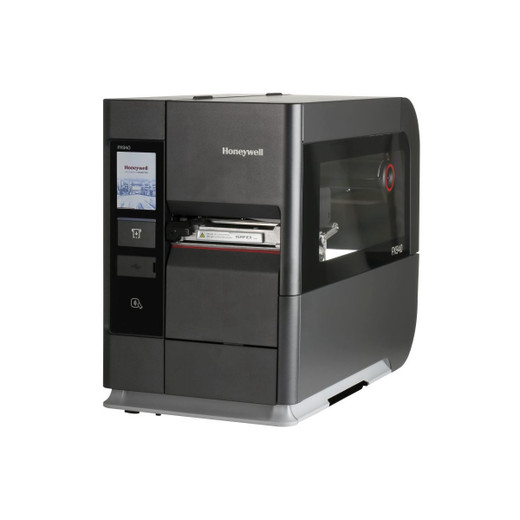

Honeywell PX940 Industrial Label Printer with Verifier

Honeywell PX940 Industrial Label Printer with Verifier

The Honeywell PX940 PX940V30100000202 is a production-grade industrial label printer engineered for high-volume printing environments requiring integrated barcode quality assurance. This dual-core ARM Cortex-A9 powered system combines 203 DPI thermal transfer printing with real-time barcode verification, eliminating offline quality control steps and ensuring every label meets ISO standards before it leaves the production line.

Key Features

• Integrated barcode verifier for 1D (ISO/IEC 15416) and 2D (ISO/IEC 15415) barcodes
• 203 DPI resolution with print speeds up to 350 mm/s (14 ips)
• Direct thermal and thermal transfer printing capability
• 3.5-inch color touch LCD display for intuitive operation
• 1 GB DDR3 SDRAM for complex label templates and graphic-intensive formats
• 256 MB Flash storage with multiple printer language emulations
• 450 m maximum ribbon length and 213 mm media roll diameter support

Connectivity & Integration

Multi-protocol connectivity enables seamless enterprise integration. Ethernet, USB 2.0, RS-232, Bluetooth, and NFC interfaces connect directly to warehouse management systems, ERP platforms, and production networks. Support for ZPL II, ZSim2, Direct Protocol, Fingerprint, and Intermec Printer Language ensures compatibility with existing label workflows and legacy printer environments across multi-vendor installations.

Technical Specifications

• Processor: Dual Core ARM Cortex-A9 1 GHz
• Memory: 1 GB DDR3 SDRAM, 256 MB Flash storage
• Display: 3.5-inch color touch LCD
• Print Resolution: 203 DPI
• Print Speed: 25-350 mm/s (1-14 ips)
• Ribbon Configuration: Ink-In and Ink-Out, 3-inch core
• Operating Temperature: 5–40°C (41–104°F)
• Storage Temperature: -20–70°C (-4–158°F)
• Dimensions: 261 x 506 x 398.7 mm (10.3 x 19.9 x 15.7 inches)
• Weight: 23.5 kg (51.8 lbs)

Applications

Ideal for warehousing, manufacturing, distribution, and logistics operations where barcode accuracy directly impacts supply chain compliance and operational efficiency. The PX940 handles shipping labels, compliance labels, product identification tags, and variable data printing in high-throughput environments requiring validated print quality and regulatory documentation.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The integrated verifier is the PX940's defining advantage in regulated supply chain environments. Unlike systems requiring offline verification, this printer validates barcode readability at point-of-print, reducing labor costs, eliminating rework, and providing immediate feedback on print quality issues. The dual-core processor and 1 GB RAM enable handling of complex label templates without throughput degradation—critical for operations running dynamic data across high-speed production lines.

Multi-protocol language support minimizes migration friction when upgrading from competing systems. Wide operating temperature range (5–40°C) suits warehouse and distribution floor conditions. For organizations balancing production speed, barcode compliance, and total cost of ownership, this configuration represents significant operational leverage.
