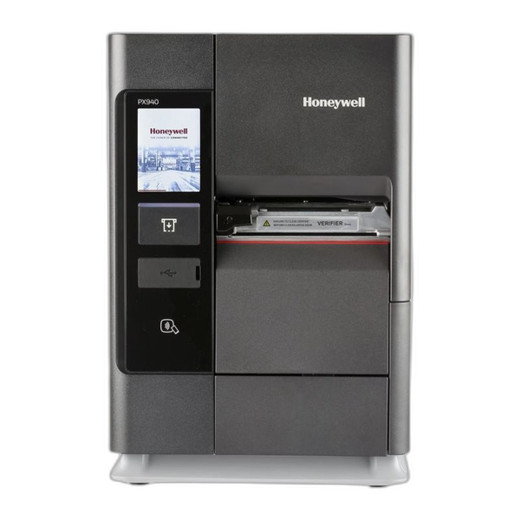

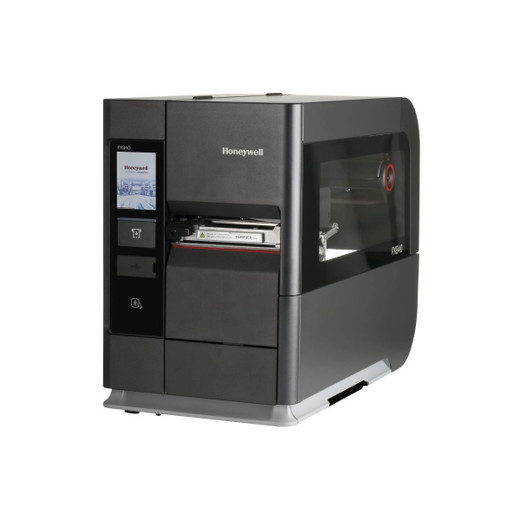

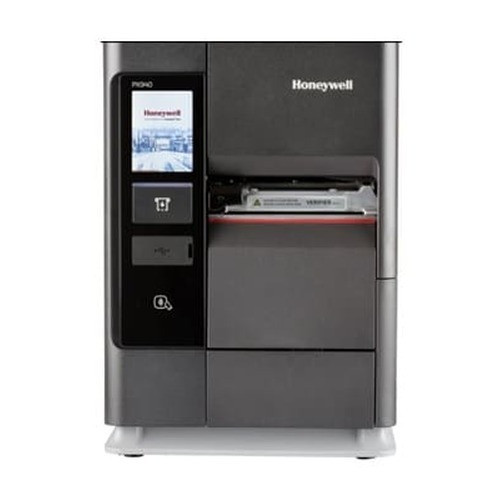

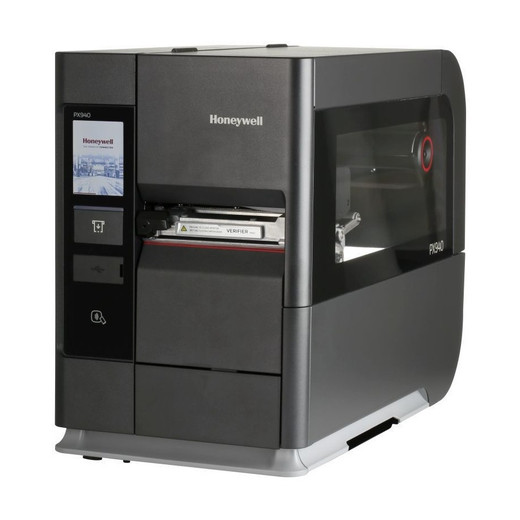

Honeywell PX940 Industrial Label Printer with Verifier

Honeywell PX940 Industrial Label Printer with Verifier

The Honeywell PX940 PX940V30100060622 is a high-performance industrial label printer engineered for mission-critical applications requiring integrated barcode verification. This system combines 600 DPI print resolution with real-time quality assurance, eliminating the need for separate offline verification equipment and ensuring every label meets ISO compliance standards before leaving the printer.

Key Features

• 600 DPI print resolution for crisp, scannable barcodes and detailed graphics
• Integrated barcode verifier supporting 1D (ISO/IEC 15416-2016) and 2D (ISO/IEC 15415-2011) codes
• Print speeds up to 150 mm/s (6 ips) at full resolution
• 3.5-inch color touch LCD for intuitive operator control
• Dual-core ARM Cortex-A9 processor with 1 GB DDR3 SDRAM
• Direct thermal and thermal transfer printing capabilities
• Automatic rewinder, peeler, and label-taken sensor for hands-free operation
• Multi-protocol connectivity: Ethernet, USB 2.0, RS-232, Bluetooth, and NFC

Technical Specifications

• Print Width: 105.6 mm (4.16 in) at 600 DPI
• Media Capacity: Up to 114 mm (4.5 in) wide, 213 mm (8.38 in) maximum roll diameter
• Ribbon System: Ink-in/ink-out configuration with 450 m (1,476 ft) maximum ribbon length on 3-inch core
• Memory: 256 MB flash storage for label templates and firmware
• Operating Temperature: 5–40°C (41–104°F)
• Dimensions: 261 × 506 × 398.7 mm (10.3 × 19.9 × 15.7 in)
• Weight: 23.5 kg (51.8 lbs) with verifier
• Emulation Support: ZPL II, ZSim2, Direct Protocol, Fingerprint, Intermec Printer Language

Applications

The PX940 is ideal for warehousing, logistics, pharmaceuticals, healthcare, and manufacturing environments where label quality directly impacts compliance and operational efficiency. Real-time verification ensures GS1 and FDA regulatory adherence without manual inspection or rework.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PX940 addresses a critical gap in production environments: print speed and quality assurance in a single device. By integrating ISO-compliant barcode verification at the point of print, this system eliminates the bottleneck of offline verification, reducing label rejection rates and production downtime. The dual-core processor handles complex label logic efficiently, while the 3.5-inch touch interface reduces operator training time.

Connectivity via Ethernet and USB integrates seamlessly with WMS and ERP systems, making this printer suitable for automated high-volume operations. The rewinder and peeler attachments further streamline production with minimal manual handling, critical for facilities processing thousands of labels daily.
