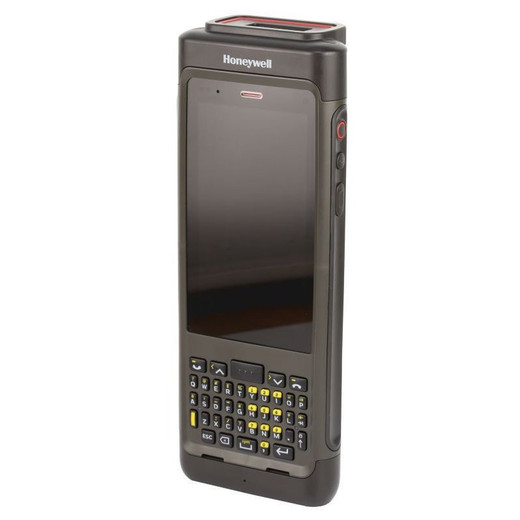

Honeywell CN80G-L0N-6HN231F Handheld Mobile Computer
The Honeywell CN80 is an ultra-rugged handheld mobile computer purpose-built for demanding warehouse, logistics, and field service environments. Built on the Honeywell Mobility Edge platform with a Qualcomm Snapdragon 660 octa-core 2.2 GHz processor, 4 GB RAM, and 32 GB microSD storage, the CN80G-L0N-6HN231F delivers enterprise-grade performance for scan-intensive operations. This configuration features a 6603 Imager with DPM (Direct Part Marking) barcode engine, QWERTY keypad, and Android non-GMS operating system optimized for business applications.
Key Features
- IP65/IP67 sealed enclosure with 3.0 m (10 ft) drop rating at room temperature and 1.8 m (6 ft) across full operating range
- 6603 Imager with DPM for 1D/2D and direct part marking barcode capture
- 4.2-inch color touchscreen (854 x 480) with glove-friendly multi-touch input
- Qualcomm Snapdragon 660 octa-core processor with 4 GB RAM for reliable multitasking
- QWERTY keypad for rapid alphanumeric data entry in high-volume workflows
- 5800 mAh Li-Ion battery supporting 12+ hours continuous operation
- Wide operating temperature range: -20°C to 50°C (-4°F to 122°F)
Connectivity & Wireless
Multi-mode wireless connectivity includes 802.11 a/b/g/n/ac Wi-Fi with 2x2 MIMO for strong signal penetration across large facilities, Bluetooth 5.0 for peripheral pairing, USB, and Ethernet support. Audio support and day/night operation modes enhance versatility in varied lighting and environmental conditions.
Ruggedness & Durability
The CN80 is engineered for harsh industrial environments with IP65/IP67 sealing that protects against dust and water immersion. The 3.0 m drop specification at room temperature ensures survivability from typical warehouse heights, while the 1.8 m drop rating across the full -20°C to 50°C operating range accommodates temperature-stress conditions. At 500 g with battery, the device remains lightweight for all-day handheld use.
Data Capture Performance
The integrated 6603 Imager with DPM support enables reliable capture of 1D barcodes, 2D codes, and direct part markings on components and assemblies—critical for inventory tracking, asset management, and manufacturing quality control workflows. The combination of advanced imaging and QWERTY input eliminates workflow friction in high-throughput operations.
Technical Specifications
- Processor: Qualcomm Snapdragon 660 Octa-Core 2.2 GHz
- Memory: 4 GB RAM / 32 GB microSD storage
- Display: 4.2-inch color (854 x 480 resolution)
- Dimensions: 204 x 78 x 33.2 mm (8.0 x 3.1 x 1.3 in)
- Weight: 500 g (17.6 oz) with battery
- Storage Temperature: -30°C to 70°C
- Certifications: FCC
- Platform: Honeywell Mobility Edge Android
Ideal Applications
The CN80G-L0N-6HN231F is optimized for warehouse receiving and putaway, cross-dock operations, parcel and package handling, retail inventory, field service dispatch, and manufacturing line tracking. Its combination of barcode scanning performance, rugged construction, and extended battery life supports mission-critical mobility in logistics, retail, and industrial environments.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CN80 represents a balanced mid-range enterprise handheld that prioritizes barcode capture and data entry over multimedia functionality—the absence of a camera is deliberate, reducing cost and complexity while maximizing battery efficiency. The Snapdragon 660 processor paired with 4 GB RAM is sufficient for warehouse management system (WMS) apps, warehouse control system (WCS) client software, and voice-directed picking applications, though demanding real-time video streaming or heavy AI processing may require higher-tier models. The dual IP65/IP67 rating is industry-standard for logistics; the 3.0 m drop spec competes favorably against Symbol/Zebra MC3300 variants.
Battery life claims of 12+ hours are achievable in moderate-use scanning environments but will vary with Wi-Fi intensity and screen brightness. The QWERTY keypad is a key differentiator for facilities that prioritize speed over mobile-first touchscreen workflows, particularly in cold-storage or gloved environments.
