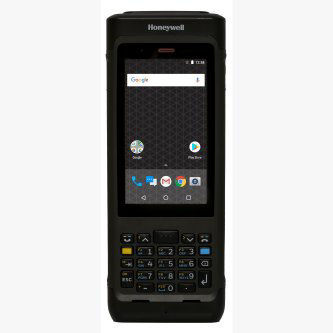

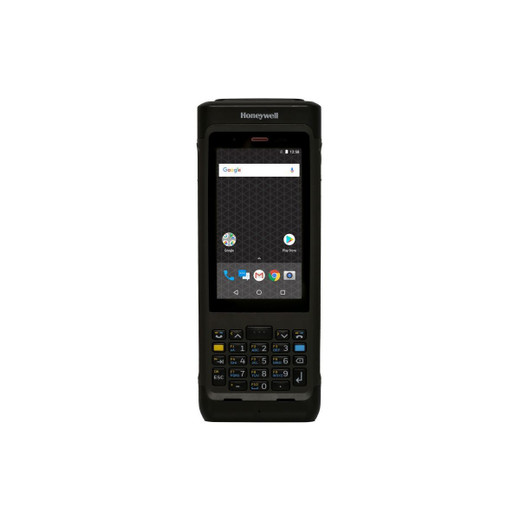

Honeywell CN80G-L0N-5HN241F Handheld Mobile Computer
The Honeywell CN80 is an ultra-rugged handheld mobile computer purpose-built for demanding warehouse, logistics, and field service environments. Configured with a numeric keypad, 6603 Imager with DPM barcode engine, and Android (non-GMS) operating system, this device combines enterprise-grade processing power with military-grade durability to handle high-volume scan workflows in challenging conditions.
Key Features
- IP65/IP67 sealed enclosure with 3.0 m (10 ft) drop rating at room temperature
- 6603 Imager with DPM for 1D/2D and Data Matrix barcode capture
- Qualcomm Snapdragon 660 octa-core processor on Honeywell Mobility Edge platform
- 4.2-inch color touchscreen (854 x 480) with glove-friendly multi-touch input
- Numeric keypad for efficient data entry and transaction processing
- 5800 mAh Li-Ion battery with 12+ hours continuous operation
- Wide operating temperature range: -20° to 50°C (-4° to 122°F)
- Wi-Fi 802.11 a/b/g/n/ac with 2x2 MIMO and Bluetooth 5.0
Technical Specifications
Processor & Memory: The Snapdragon 660 octa-core 2.2 GHz processor delivers consistent performance for enterprise applications, supported by 4 GB RAM and 32 GB internal storage with microSD expansion for extended data capacity.
Display & Input: The 4.2-inch display offers bright, readable output across indoor and outdoor lighting conditions. The numeric keypad provides reliable tactile input without requiring touchscreen interaction, critical for high-speed data entry in retail and warehouse operations.
Barcode Scanning: The integrated 6603 Imager with DPM capability reads standard 1D barcodes (Code 39, Code 128, UPC/EAN) and 2D codes (QR, Data Matrix, PDF417), plus damaged or printed barcodes using Direct Part Marking technology.
Durability: IP65 sealing protects against dust and water spray, while IP67 rating enables temporary submersion. The 3.0 m (10 ft) drop specification at room temperature and 1.8 m (6 ft) across the full operating temperature range ensures survival of typical workplace drops on concrete or hard flooring.
Connectivity: Dual-band Wi-Fi (802.11ac) with 2x2 MIMO provides strong signal penetration in large facilities. Bluetooth 5.0 enables wireless accessories, while USB and Ethernet connectivity support enterprise integration and charging infrastructure.
Battery Life: The 5800 mAh capacity supports 12+ hours of mixed-use operation, reducing midday charging requirements and enabling full-shift productivity in high-volume environments.
Typical Applications
- Warehouse receiving, putaway, and inventory cycles
- Retail point-of-sale and stock verification
- Field service technician asset tracking
- Parcel and logistics last-mile operations
- Manufacturing floor work-in-process tracking
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CN80 represents Honeywell's balanced approach to rugged mobility: it prioritizes barcode scanning speed and durability over camera-based capabilities, making it ideal for organizations with established barcode infrastructure. The numeric keypad differentiates it from full-touch competitors, reducing accidental input errors during high-speed transactions. The Snapdragon 660 processor is sufficient for line-of-business Android applications but not optimized for image-heavy workflows.
The IP65/IP67 dual rating and 3.0 m drop spec position it in the premium durability tier, suitable for harsh environments like cold storage and outdoor receiving docks. For businesses standardized on Android (non-GMS), this device offers native Honeywell Mobility Edge integration, streamlining deployment and management. The 12+ hour battery life is competitive for full-shift operations, though peak scanning loads and extreme temperature conditions may require mid-shift charging in demanding scenarios.
