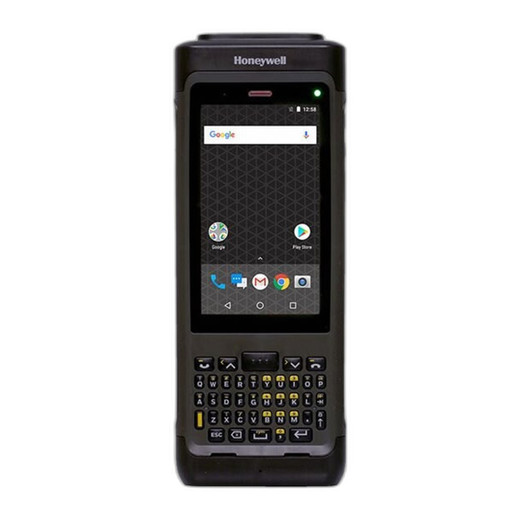

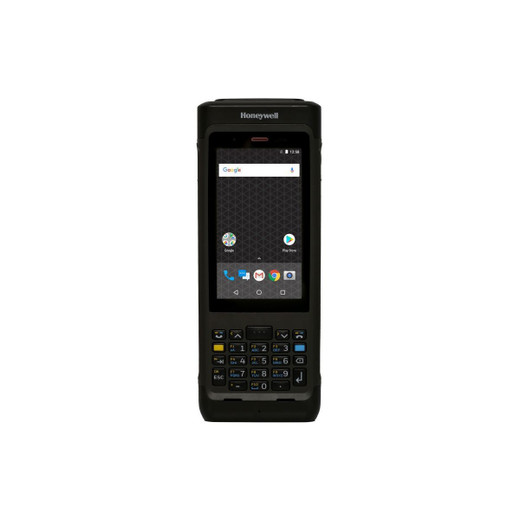

Honeywell CN80G-L0N-6MN241F Handheld Mobile Computer
The Honeywell CN80G-L0N-6MN241F is a purpose-built handheld mobile computer engineered for high-volume scan-and-transmit workflows in warehouse, logistics, and cold-chain environments. Built on the Honeywell Mobility Edge platform with a Qualcomm Snapdragon 660 octa-core processor running at 2.2 GHz and 4 GB RAM, the CN80G delivers sufficient computational headroom for multi-threaded barcode applications without the power drain of flagship mobile processors—a meaningful advantage when shift lengths exceed 12 hours on battery.
Ruggedness & Field Durability
- Drop Rating: 3.0 m (10 ft) at room temperature; 1.8 m (6 ft) across the full -20°C to 50°C operating range. This specification means the device survives accidental drops in warehouse racks and loading docks without requiring replacement, reducing total cost of ownership over a multi-year deployment.
- IP65 Sealed Enclosure: Dust and water jets won't infiltrate the housing—essential for outdoor staging yards, wet dock areas, and manufacturing floors where moisture and particulate are constant.
- Compact Footprint: 204 x 78 x 33.2 mm (8.0 x 3.1 x 1.3 in) and 500 g (17.6 oz with battery) keep the device balanced in one hand during long scanning sessions, reducing operator fatigue.
- Extended Battery Life: 5800 mAh Li-Ion battery rated for 12+ hours of continuous scan-and-transmit operation, eliminating the need for mid-shift charging in most single-shift deployments.
Data Capture & Scanning
- EX20 Near/Far Imager: Captures 1D and 2D barcodes across variable distances without requiring operators to adjust focus or manually switch scan modes. This reduces workflow friction—users scan once and move on, whether the label is arm's length away or mounted high on a shelf.
- QWERTY Keypad: Physical buttons enable efficient alphanumeric entry in gloved conditions and reduce reliance on touchscreen typing, which slows productivity in fast-paced picking and packing environments.
- No Integrated Camera: A deliberate design choice that eliminates cost, reduces system complexity, and removes potential security/compliance concerns around image capture in sensitive facilities.
Connectivity & Network Integration
- Wi-Fi 802.11 a/b/g/n/ac with 2x2 MIMO: Multi-band coverage provides reliable facility-wide connectivity in buildings with varied RF environments—a necessity when deploying dozens of handhelds across a warehouse without dead zones.
- Bluetooth 5.0: Pairs with external peripherals (printers, scales, sensors) and supports device-to-device communication for coordinated workflows without requiring network traffic.
- Ethernet & USB Docking: Enables rapid data synchronization when devices return to the dock, and supports POE Class 1 for centralized power delivery in staging areas.
Operating System & Management
- Android (non-GMS): Enterprises retain control over app distribution, security patches, and system customization—critical for organizations running proprietary warehouse management systems or delivery applications without relying on Google Play services or carrier approval processes.
- Honeywell Mobility Edge Platform: Streamlines application development and device management, reducing deployment timelines and IT overhead compared to generic Android devices.
- FCC Certification: Cleared for regulated deployments; compliance documentation is on file.
When to Choose a Different Model
If your workflow requires integrated image capture (asset documentation, proof-of-delivery photography), the CN80G-L0N-6MN241F is not the right fit—consider a higher-spec variant in the CN80 family with integrated cameras. If operating temperatures drop below -20°C or exceed 50°C persistently, or if you need submersion-rated protection (IP67+) rather than water-jet resistance, evaluate alternatives within the Honeywell mobile computer line or industrial-grade tablets.
Frequently Asked Questions
Q: What barcode types does the EX20 Near/Far Imager support?
A: The EX20 captures standard 1D barcodes (Code 128, EAN/UPC, Code 39) and 2D symbologies (QR codes, Data Matrix, PDF417, Aztec). Consult the manufacturer datasheet for a comprehensive symbology list.
Q: Does the CN80G-L0N-6MN241F work with third-party warehouse management systems?
A: Yes. The Honeywell Mobility Edge platform and Android (non-GMS) OS support custom application deployment. Integration depends on your WMS vendor's support for Android and the Mobility Edge framework. Verify compatibility with your software provider before procurement.
Q: How long does the battery last on a typical shift?
A: The 5800 mAh battery delivers 12+ hours of continuous scan-and-transmit operation under normal warehouse conditions. Battery life varies with processor load, screen brightness, and radio activity; heavy computational use or constant Wi-Fi scanning will reduce runtime.
Q: Can the CN80G-L0N-6MN241F handle cold storage environments?
A: Yes. The operating temperature range extends to -20°C (-4°F), and the IP65 rating prevents frost buildup inside the enclosure. However, the drop rating decreases to 1.8 m (6 ft) across the full temperature range, so handle carefully in freezer conditions.
Q: Is expandable storage included?
A: The CN80G-L0N-6MN241F features microSD card support. Storage capacity and pre-installed media are not specified in the base configuration; verify with your distributor if expansion is required.
Q: What warranty and support options are available?
A: Warranty terms are not specified in the product documentation. Contact your authorized distributor or the manufacturer directly for warranty period, support response times, and device-replacement programs.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CN80G-L0N-6MN241F occupies a specific niche: mid-to-high-volume scanning operations where drop resilience, battery longevity, and network reliability matter more than computational power or multimedia capture. The Snapdragon 660 processor and 4 GB RAM are deliberately modest—they're sufficient for barcode applications and lightweight business logic without the power overhead of flagship silicon, which directly translates to the 12+ hour battery claim.
Technical Highlights:
- EX20 Near/Far Imager Dual-Range Capability: Eliminates workflow friction caused by manual focus or device switching. Users in dynamic environments (retail backroom, pharmacy, parcel sorting) scan once at any distance and move on. This is worth quantifying: a user scanning 500 SKUs per shift saves 5–10 minutes if they don't need to adjust focus or swap devices.
- IP65 + 3.0 m (10 ft) Drop Rating Combined: Warehouse drops are brutal and frequent. The 10 ft specification at room temperature is aggressive—most consumer rugged phones max at 6 ft. Across the full -20°C to 50°C range it dips to 1.8 m, but that's still industrial-grade. Cost avoidance from fewer device replacements compounds over a 3-year fleet lifecycle.
- 5800 mAh Battery / 12+ Hour Runtime: Single-shift operations without mid-shift charging mean operators don't interrupt productivity for dock charging stations. Realistically achievable in scan-and-transmit workflows; heavy computational load or continuous screen-on time will reduce this figure by 20–30%.
- Android (non-GMS) + Mobility Edge: This combination is intentional. Enterprises avoid Google Play dependencies, carrier approval delays, and unwanted system updates. You control the app stack. Proprietary WMS systems and closed-loop delivery apps benefit from this isolation.
Deployment Considerations:
- The absence of an integrated camera is not a limitation if your workflow is barcode-centric. If you need periodic proof-of-delivery photography or asset documentation, you'll need a higher-spec CN80 variant or a separate imaging solution.
- Drop rating degradation in cold storage (-20°C environment) is meaningful: 1.8 m vs. 3.0 m is a real difference. If your freezer operations are rough-and-tumble, acknowledge that risk during deployment planning.
- Wi-Fi 2x2 MIMO coverage is solid but not exceptional. In RF-hostile environments (metal racks, high-density metal shelving), verify site survey before committing to fleet-wide rollout. A single dead zone in a large warehouse can cripple a picking operation.
This device is purpose-built for logistics and warehouse automation where barcode velocity, durability under drop/moisture stress, and battery endurance determine success. It's not a general-purpose rugged smartphone; it's an industrial tool that happens to run Android. Deploy it against scan-intensive, single-shift operations where IT can manage a closed application ecosystem. In retail backroom receiving, parcel sorting hubs, and cold-chain fulfillment, the CN80G-L0N-6MN241F (often searched as CN80G L0N 6MN241F) justifies its cost through reduced device attrition and operator efficiency gains.
