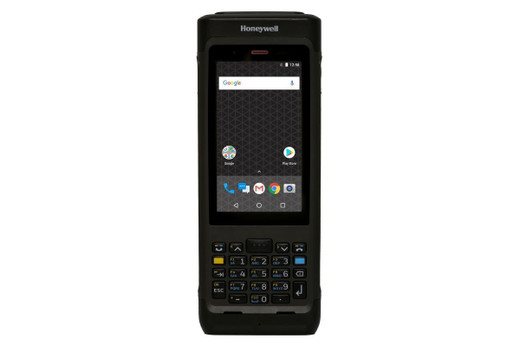

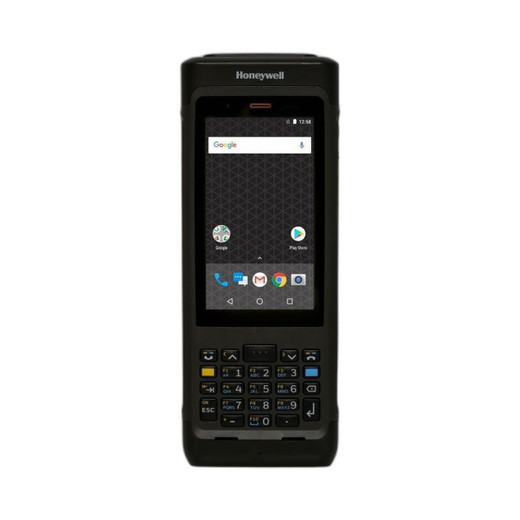

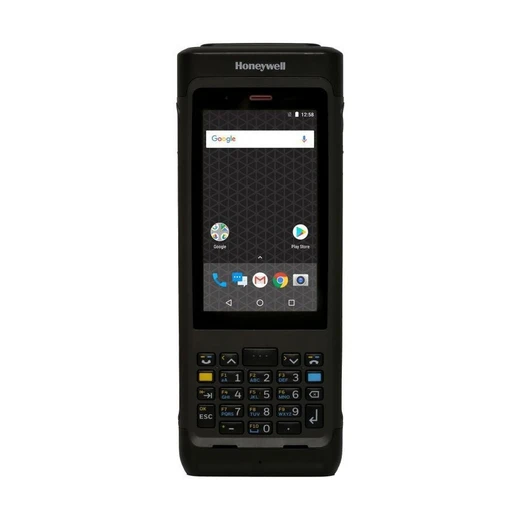

Honeywell CN80G-L0N-5EN231F Handheld Mobile Computer

The Honeywell CN80 is an ultra-rugged handheld mobile computer purpose-built for enterprise scan-intensive operations in warehouse, logistics, retail, and field service environments. This configuration combines a numeric keypad, 6603ER Extended Range Imager, and Android non-GMS operating system on the Honeywell Mobility Edge platform to deliver dependable performance in demanding conditions.

Key Features

• Qualcomm Snapdragon 660 Octa-Core 2.2 GHz processor with 4 GB RAM and 32 GB flash storage
• 6603ER Extended Range Imager for 1D/2D barcode capture up to 15.2 m (50 ft)
• 4.2-inch color touchscreen (854 x 480) with outdoor-ready brightness and glove-friendly capacitive input
• IP65/IP67 ingress protection with 3.0 m (10 ft) drop rating at room temperature
• Operating temperature range -20 to 50°C (-4 to 122°F)
• 5800 mAh Li-Ion battery for extended shift operation
• Numeric keypad optimized for transaction-heavy workflows
• FIPS 140-2 certified and Non-Incendive rated for regulated environments

Technical Specifications

The CN80 integrates dual-band Wi-Fi (802.11 a/b/g/n/ac) with 2x2 MIMO and Bluetooth 5.0 for seamless connectivity across large facilities and mobile deployments. The device weighs only 500 g (17.6 oz) with battery, maintaining a compact 204 x 78 x 33.2 mm footprint for one-handed operation throughout long shifts.

Ruggedness is central to the CN80's design. The IP65 and IP67 dual ratings protect against dust and water ingress, while the 3.0 m drop specification at room temperature and 1.8 m across the full operating temperature range ensure survival in high-impact warehouse environments. The extended operating temperature range from -20 to 50°C supports deployment in freezers, outdoor loading docks, and heated environments without performance degradation.

The 6603ER Extended Range Imager delivers superior barcode read performance across varying distances and barcode densities, eliminating the need for multiple scanning devices. The numeric keypad configuration supports PIN entry, quantity input, and transaction confirmation without full QWERTY complexity.

Security & Compliance

FIPS 140-2 certification and Non-Incendive rating make this configuration suitable for government procurement, pharmaceutical facilities, and hazardous location deployments. The Android non-GMS platform provides control over application ecosystem and data handling.

Ideal Applications

• Warehouse receiving, picking, and inventory management
• Logistics and last-mile delivery operations
• Retail point-of-sale and markdown verification
• Field service dispatch and asset tracking
• Cold chain and pharmaceutical traceability
• Regulated manufacturing environments

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CN80G-L0N-5EN231F represents Honeywell's mature approach to rugged mobile computing. The Snapdragon 660 provides sufficient processing power for real-time barcode processing and warehouse management system integration without the thermal overhead of higher-tier processors. The numeric keypad configuration is intentional—it reduces complexity, improves durability, and accelerates training for high-turnover warehouse labor.

The 6603ER imager is a proven extended-range solution that outperforms standard mobile computer imagers at distance, reducing scanning errors and repeat scans in high-volume operations. The dual IP65/IP67 rating is significant: IP65 daily protection against splash and light dust, with IP67 survivability for occasional submersion scenarios common in beverage, meat processing, and cold storage logistics.

Non-Incendive rating opens deployment in EPA List 1 hazardous locations (atmospheres containing flammable gases or vapors) where standard mobile computers are prohibited. This specialized compliance makes the CN80 the practical choice for pharmaceutical manufacturing, chemical handling, and oil & gas operations where alternative solutions don't exist.
