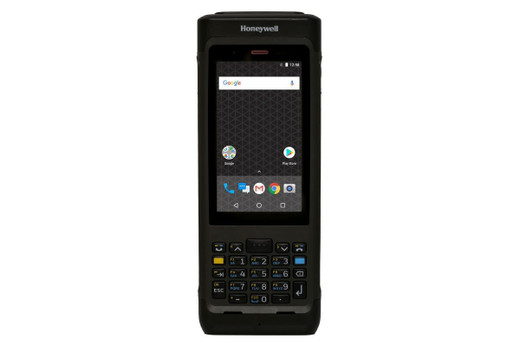

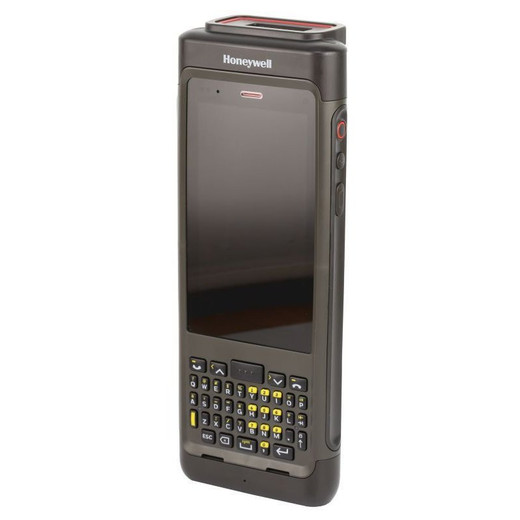

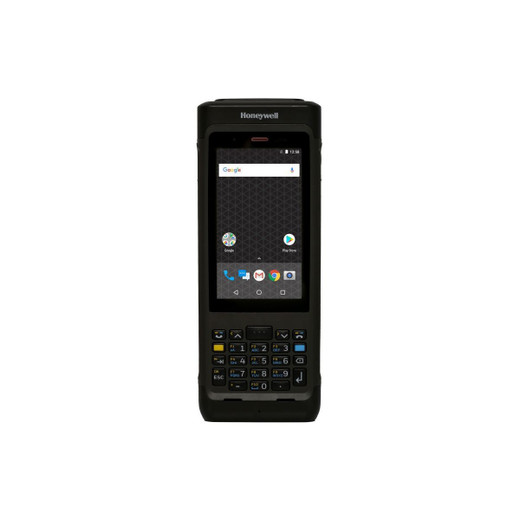

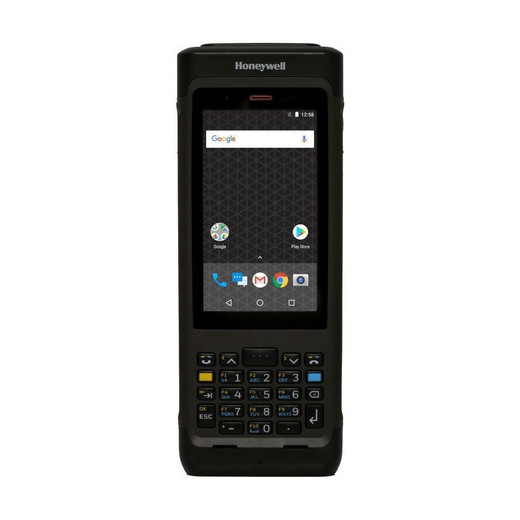

Honeywell CN80G-L0N-6HC231F Handheld Mobile Computer

Honeywell CN80G-L0N-6HC231F Handheld Mobile Computer

The Honeywell CN80 is an ultra-rugged handheld mobile computer purpose-built for demanding warehouse, logistics, and field service environments. This configuration pairs enterprise-grade processing with industrial-strength durability, delivering reliable barcode capture and data entry in the most challenging conditions.

Key Features

• IP65/IP67 sealed enclosure with 3.0 m (10 ft) drop spec at room temperature and 1.8 m (6 ft) across full operating range
• 6603 Imager with DPM for 1D/2D and direct part marking barcode capture
• Qualcomm Snapdragon 660 Octa-Core 2.2 GHz processor on Honeywell Mobility Edge platform
• 4 GB RAM and 32 GB expandable microSD storage
• QWERTY keyboard for rapid data entry in gloved environments
• 4.2-inch color touchscreen (854 x 480) with multi-touch and glove-friendly operation
• Integrated rear camera for image capture and supplemental documentation
• 802.11 a/b/g/n/ac Wi-Fi with 2x2 MIMO and Bluetooth 5.0 connectivity
• 5800 mAh Li-Ion battery with 12+ hours continuous operation
• Android non-GMS operating system

Technical Specifications

• Processor: Qualcomm Snapdragon 660 Octa-Core 2.2 GHz
• Memory: 4 GB RAM with 32 GB internal storage (microSD expandable)
• Display: 4.2-inch color touchscreen, 854 x 480 resolution
• Barcode Engine: 6603 Imager with DPM capability
• Connectivity: Wi-Fi 802.11 a/b/g/n/ac 2x2 MIMO, Bluetooth 5.0, USB, Ethernet
• Battery: 5800 mAh Li-Ion
• Durability: IP65/IP67 ingress protection, -20°C to 50°C operating temperature
• Dimensions: 204 x 78 x 33.2 mm (8.0 x 3.1 x 1.3 in)
• Weight: 500 g (17.6 oz) with battery

Applications

Ideal for warehouse management, inventory tracking, shipping and receiving, field service dispatch, retail stock counts, and any mobile workforce requiring ruggedized scanning in high-impact environments. The combination of sealed construction and extensive drop protection ensures reliable operation across demanding supply chain and logistics operations.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CN80 represents Honeywell's commitment to practical enterprise mobility. The Snapdragon 660 processor delivers sufficient throughput for real-time barcode capture and database synchronization without unnecessary overhead. IP65/IP67 dual rating—achieved through integrated sealing rather than add-on cases—means the device maintains its protective envelope across temperature extremes.

The 6603 Imager's DPM support addresses modern supply chain requirements where direct laser-marked components bypass traditional label infrastructure. The 4.2-inch display strikes a balance between screen real estate and one-handed operability; smaller than consumer phones, larger than legacy handheld terminals. QWERTY keyboard retention, despite touchscreen adoption industry-wide, reflects real-world workflow where gloved workers require tactile feedback.

Battery capacity and processor efficiency yield realistic 12+ hour runtime—critical for shift-based logistics operations. The Android non-GMS configuration prioritizes security and management control over consumer app ecosystem access. This device competes effectively against similar form-factor competitors by optimizing the scanner-to-compute ratio for logistics-specific workflows rather than attempting mobile device convergence.
