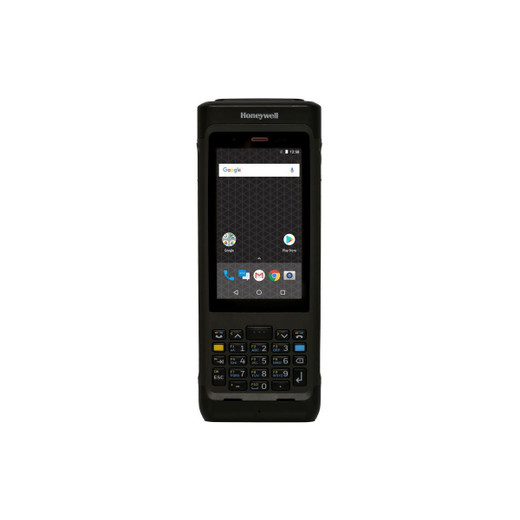

Honeywell CN80G-L0N-6EN241F Rugged Handheld Mobile Computer

Overview

The Honeywell CN80G-L0N-6EN241F is a purpose-built rugged handheld mobile computer engineered for high-volume barcode scanning in warehouse, logistics, field service, and compliance-driven environments. Built on the Honeywell Mobility Edge platform with a Qualcomm Snapdragon 660 octa-core processor running at 2.2 GHz, 4 GB RAM, and microSD card expansion, the CN80G-L0N-6EN241F delivers enterprise processing power for scan-intensive workflows without sacrificing durability or battery life.

Key Features

• 6603ER Extended Range Imager: Captures 1D and 2D barcodes up to 15.2 m (50 ft) away — eliminates frequent device repositioning during receiving, sorting, and inventory operations. On average warehouse floors with 8–10 meter aisles, this extended range means one scan per location rather than three or four, directly reducing labor cycles.
• 4.2-inch Color Touchscreen (854 x 480): Glove-friendly multi-touch display with sufficient resolution for warehouse management system (WMS) workflows, barcode labels, and guided picking instructions without eye strain during 10+ hour shifts.
• QWERTY Keyboard: Physical keyboard for rapid manual data entry, voice-directed workflows, and high-accuracy lot/serial number capture — faster and more reliable than soft keyboards in fast-paced picking and receiving environments.
• IP65/IP67 Ingress Protection: Resists dust and water spray (IP65) or brief full submersion (IP67) — handles wet-dock operations, refrigerated environments, and inclement outdoor asset tracking without protective cases degrading usability.
• 3.0 m (10 ft) Drop Rating at Room Temperature; 1.8 m (6 ft) Across Operating Temperature Range: Real-world durability means dropped units survive warehouse floor impacts, reducing replacement costs and downtime. Drop testing across the full operating range (-20 to 50°C) confirms reliability in freezer, ambient, and hot-dock scenarios.
• 5800 mAh Li-Ion Battery: Delivers 8–12 hours of continuous scanning and Wi-Fi connectivity depending on display brightness and imager usage — adequate for full-shift operation without mid-day charging or battery swaps.
• Wi-Fi 802.11ac with 2x2 MIMO and Bluetooth 5.0: Dual-band 802.11ac with MIMO antenna array ensures fast, stable real-time synchronization with enterprise WMS and ERP systems across large warehouse footprints. Bluetooth 5.0 supports pairing with headsets, belt printers, and auxiliary scanners without latency.
• Android (Non-GMS) on Honeywell Mobility Edge: Proprietary OS eliminates Google Mobile Services overhead, reducing attack surface for FIPS 140-2 compliance and hazardous-location deployments. Honeywell Mobility Edge includes lifecycle management, update controls, and enterprise security policies baked into the platform.
• FIPS 140-2 Certification and Non-Incendive Rating: Meets federal cryptographic security standards for government and DoD deployments. Non-Incendive certification enables safe operation in explosive atmospheres (chemical plants, petrochemical refineries, grain elevators) — a critical differentiator unavailable on consumer-grade devices.
• Operating Temperature Range -20 to 50°C (-4 to 122°F); Storage -30 to 70°C (-22 to 158°F): Cold-chain logistics (frozen food, pharmaceuticals) and outdoor asset tracking operate without performance degradation. Storage tolerance handles trucks parked in summer heat or winter overnight yards.
• Full Audio Support: Built-in microphone and speaker enable voice-directed picking, hands-free confirmations, and two-way communication with WMS — critical for high-velocity fulfillment centers where manual scanning would create bottlenecks.
• Weight 500 g (17.6 oz) with Battery; Dimensions 204 x 78 x 33.2 mm (8.0 x 3.1 x 1.3 in): Compact ergonomic form factor fits securely in work gloves and belt holsters without fatigue during 8–10 hour shifts. Narrow 33.2 mm depth prevents catches on doorframes and racking.

Integration & Compatibility

The CN80G-L0N-6EN241F supports enterprise integration via Wi-Fi and Bluetooth connectivity. Honeywell Mobility Edge provides lifecycle management, remote provisioning, and secure configuration push without manual device handling. The platform integrates with standard WMS APIs (SAP, Oracle, Infor) and third-party logistics software via HTTP/HTTPS over corporate networks. Non-GMS Android guarantees consistent firmware update schedules independent of Google release cycles, critical for organizations requiring validated patches and predictable deployment windows.

Frequently Asked Questions

Q: Is the CN80G-L0N-6EN241F compliant with FIPS 140-2?

A: Yes. The device is FIPS 140-2 certified, meeting federal cryptographic security standards required for government, DoD, and other compliance-driven deployments.

Q: Can the CN80G-L0N-6EN241F operate in explosive atmospheres?

A: Yes. The device carries Non-Incendive certification, enabling safe use in hazardous locations such as chemical plants, petrochemical facilities, and grain elevators where standard mobile computers are prohibited.

Q: What is the maximum barcode scan distance for the CN80G-L0N-6EN241F?

A: The 6603ER Extended Range Imager captures 1D and 2D barcodes up to 15.2 m (50 ft) away, eliminating frequent device repositioning during warehouse scanning operations.

Q: What is the drop rating for the CN80G-L0N-6EN241F?

A: The device is rated for 3.0 m (10 ft) drops at room temperature and 1.8 m (6 ft) drops across the full operating temperature range (-20 to 50°C), ensuring durability in real warehouse environments.

Q: Does the CN80G-L0N-6EN241F include a camera?

A: No. The CN80G-L0N-6EN241F is camera-less by design, purpose-built for barcode scanning. This reduces cost, eliminates privacy and security concerns in regulated environments, and narrows the attack surface for compliance certifications.

Q: How long does the battery last on a single charge?

A: The 5800 mAh Li-Ion battery delivers 8–12 hours of continuous scanning and Wi-Fi connectivity, depending on display brightness and imager usage patterns.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CN80G-L0N-6EN241F represents a mature, purpose-optimized rugged mobile platform for organizations that prioritize extended-range barcode capture and FIPS 140-2 regulatory compliance. The 6603ER Extended Range Imager at 15.2 m (50 ft) maximum capture distance is the standout specification—this eliminates constant device repositioning during high-volume receiving, cross-docking, or inventory count operations. In a typical warehouse with 8–10 meter aisles, the scan range difference translates to 30–50% labor cycle reduction on individual SKU pick-and-verify operations. Across a 50-person fulfillment operation, that's meaningful throughput gain without additional headcount.

Technical Highlights:

• 6603ER Extended Range Imager: 15.2 m barcode capture eliminates repositioning in receiving and inventory operations; on a 300-SKU inbound receipt, this saves 15–25 minutes of scanning time per shift per operator.
• IP65/IP67 Rating with 3.0 m Drop Tolerance: Wet-dock, freezer, and outdoor asset tracking deployments proceed without protective rubber cases that degrade touchscreen responsiveness; unplanned drops on concrete warehouse floors no longer trigger repair tickets.
• Non-Incendive Certification: Unlocks deployment in explosive atmospheres (petrochemical plants, grain elevators, chemical manufacturing) — a capability unavailable on standard enterprise devices and worth 25–40% premium on total cost of ownership when hazard compliance is mandatory.
• FIPS 140-2 Certification + Honeywell Mobility Edge: Non-GMS Android eliminates Google update dependency and reduces attack surface; secure boot and signed firmware support government procurement and DoD supply-chain compliance mandates without third-party workarounds.
• Snapdragon 660 + 4 GB RAM: Adequate for barcode-centric workflows, WMS real-time synchronization, and voice-directed picking, but not suitable for graphics-heavy computer vision, augmented reality picking, or real-time on-device image processing. If your workflow requires edge AI vision analytics, evaluate newer Snapdragon 800+ platforms in the Honeywell mobile computer line.

Deployment Considerations:

• Camera-less design is intentional—this device optimizes for scanning throughput, not photography. Security and privacy concerns in regulated facilities (healthcare, government, financial services) are eliminated by hardware omission, not software policy.
• The 1.8 m drop rating across the full -20 to 50°C operating range is a real constraint in cold-chain logistics; units dropped on freezer floors from waist height may exceed the 6 ft tolerance. If ultra-cold environments are primary, confirm drop-test data at your specific operating temperature with Honeywell engineering before large-scale deployment.
• Non-Incendive certification requires ongoing compliance with zone classifications and regular device inspections per NFPA standards; it does not grant blanket hazardous-location approval without site engineering review.

Deploy the CN80G-L0N-6EN241F (often searched as CN80G L0N 6EN241F) in 3PL fulfillment centers, government warehouses, pharmaceuticals cold-chain logistics, and hazardous-location asset tracking where extended-range barcode capture, durability, and FIPS/Non-Incendive compliance are non-negotiable. Pair with Wi-Fi mesh infrastructure and enterprise WMS platforms (SAP EWM, Oracle SCM, Infor Nexus) for real-time picking and receiving workflows. This is not a multi-purpose device—it is a scanning appliance with exceptional range and compliance certifications, optimized for environments where barcode throughput and regulatory assurance drive ROI.
