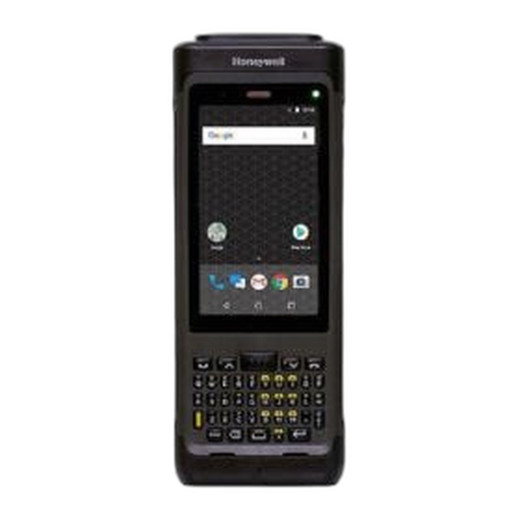

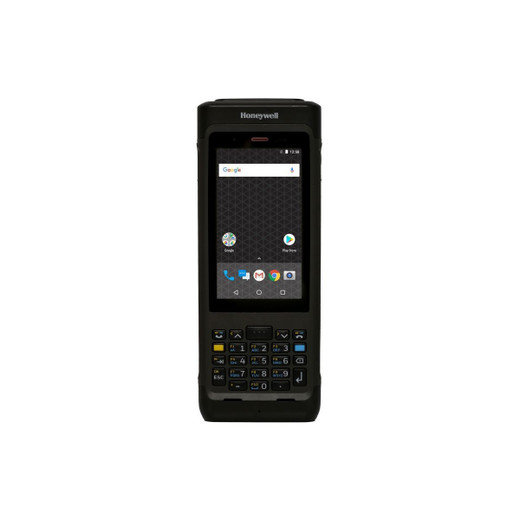

Honeywell CN80G-L0N-5HN231F Handheld Mobile Computer
The Honeywell CN80 is an ultra-rugged handheld mobile computer purpose-built for demanding warehouse, logistics, and field service environments. Built on the Honeywell Mobility Edge platform with a Qualcomm Snapdragon 660 octa-core 2.2 GHz processor, 4 GB RAM, and 32 GB microSD storage, the CN80G delivers enterprise-grade processing for scan-intensive workflows. This configuration features a numeric keypad, integrated 6603 Imager with DPM barcode scanning, and Android non-GMS operating system, optimized for mission-critical data capture applications.
Key Features
- IP65/IP67 sealed design with 3.0 m (10 ft) drop rating at room temperature, 1.8 m (6 ft) across full operating range
- 6603 Imager with DPM for 1D/2D and direct part mark barcode capture
- Qualcomm Snapdragon 660 octa-core 2.2 GHz processor on Mobility Edge platform
- 4.2-inch color touchscreen (854 x 480 resolution) with glove-friendly multi-touch input
- Numeric keypad for efficient data entry and transaction processing
- 5800 mAh Li-Ion battery supporting 12+ hours continuous operation
- Dual connectivity: 802.11 a/b/g/n/ac Wi-Fi with 2x2 MIMO and Bluetooth 5.0
- Compact form factor: 204 x 78 x 33.2 mm, 500 g with battery
- Wide operating temperature range: -20 to 50°C (-4 to 122°F)
- Camera-free configuration for streamlined deployment
Technical Specifications
Processor & Memory: Qualcomm Snapdragon 660 octa-core 2.2 GHz, 4 GB RAM, 32 GB microSD expandable storage
Display: 4.2-inch color touchscreen, 854 x 480 resolution with multi-touch and glove operation support
Barcode Scanning: 6603 Imager with DPM (Direct Part Mark) technology enables robust 1D/2D and high-density barcode capture even in challenging lighting conditions
Connectivity: 802.11 a/b/g/n/ac dual-band Wi-Fi with 2x2 MIMO, Bluetooth 5.0, USB, and Ethernet connectivity support
Durability: IP65/IP67 ingress protection rated for dust and water immersion; withstands 3.0 m drops at room temperature and 1.8 m across full temperature range
Battery: 5800 mAh Li-Ion with 12+ hour runtime under typical warehouse workloads
Environmental: Operating temperature -20 to 50°C; storage temperature -30 to 70°C; audio support and day/night operation
Ideal Applications
- Warehouse receiving, pick/pack, and shipping operations
- Inventory management and cycle counting
- Logistics and supply chain tracking
- Field service and asset management
- Retail stock replenishment and loss prevention
- Manufacturing quality control and material handling
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CN80G-L0N-5HN231F represents a solid mid-range enterprise handheld optimized for barcode-centric workflows. The 6603 Imager with DPM support is a standout feature for operations requiring direct part mark or high-density code reading—critical in automotive, electronics, and pharmaceutical supply chains where traditional labels may not be present. The numeric keypad configuration reduces accidental touchscreen inputs common in fast-paced warehouse environments, improving data accuracy and operator confidence.
IP65/IP67 dual protection and the 3.0 m drop specification position the CN80 in the premium durability tier, suitable for concrete-floor environments and high-velocity operations. The Snapdragon 660 processor is mature, proven, and sufficient for real-time barcode scanning, inventory lookup, and wireless communication—not over-provisioned for this use case, which translates to cost efficiency and extended battery life. The Honeywell Mobility Edge platform enables rapid application deployment and vendor-neutral Linux support, reducing lock-in risk. The absence of a camera is appropriate for security-sensitive environments where photo capture poses compliance concerns. For organizations seeking rugged mobile computers without premium pricing, the CN80G delivers dependable performance in high-volume, scan-intensive deployments.
