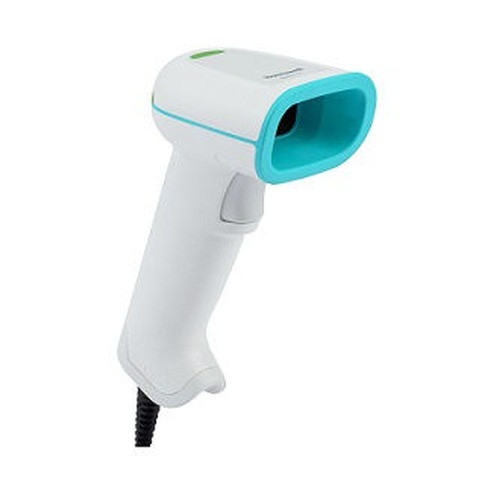

Honeywell 1960HHD-5USB-N Xenon XP 1952g Barcode Scanner Accessory
The 1960HHD-5USB-N is a genuine accessory for Honeywell's Xenon XP 1952g area imager scanner, engineered to bridge connectivity and environmental demands in warehouse, logistics, and field service operations. This unit maintains OEM compatibility and preserves manufacturer warranty coverage—a meaningful advantage when standardizing barcode capture fleets across multiple locations or when replacing damaged units without disrupting your scanning ecosystem.
Key Features
- Dual Connectivity (Bluetooth 4.2 + USB): Switch between wireless and wired modes without changing hardware. Bluetooth 4.2 frees operators from cable constraints during high-velocity inventory counts or receiving operations—useful when docking stations are too distant or when mobile scanning efficiency is critical. USB mode delivers stable, power-efficient scanning at fixed workstations or when already-deployed docking infrastructure is in place, eliminating the RF interference risk in congested warehouse environments.
- IP65 Environmental Rating: Dust and direct water spray protection means this accessory won't fail in moisture-heavy warehouse settings—food distribution cold storage, pharmaceutical environments, or outdoor receiving areas with occasional cleaning spray exposure. IP65 does not guarantee submersion; if your dock protocol involves full washdown or tank immersion, verify that your paired scanner meets IP67 or higher before committing.
- 2.0 m (6.5 ft) Drop Rating: A quantified specification, not marketing language. Frequent drops from waist height or conveyor-level handling are absorbed without optical or mechanical failure, directly reducing accessory replacement cycles and downtime in high-turnover operations. Exceeding 2.0 m introduces unquantified risk of internal optical misalignment.
- Area Imager (1D/2D) Scan Engine: Reads traditional linear barcodes (UPC/EAN) as well as 2D matrix codes (QR, Data Matrix, PDF417). Critical for mixed-label environments where receiving vendors use different label standards—retail fulfillment, pharmaceutical batch tracking, or asset management across multiple supply partners.
- Working Range 2.5–50.8 cm (1–20 in): Short-range imaging means operators must hold the scanner relatively close to the barcode—useful for detail work and high-density label arrays, but slower for distance scanning (e.g., pallet labels at arm's length or overhead conveyor reads). Assess your existing scanning posture and typical label placement before migrating from a longer-range linear imager.
- Lightweight 0.32 lbs Design: Reduces operator fatigue during prolonged scanning shifts, meaningful for compliance in jurisdictions with ergonomic break requirements. Weight is low enough that wrist-strap failure introduces no injury risk, even during all-shift deployment.
- Operating Temperature 0° to 50°C (32° to 122°F): Performs in unheated warehouses during winter and cold-chain environments, but may require operator breaks in non-climate-controlled outdoor receiving areas during summer peaks. For sub-zero or sustained above-50°C environments (e.g., blast freezers, heated manufacturing floors), consult the manufacturer datasheet or escalate support.
Integration & Compatibility
As a genuine Honeywell accessory, the 1960HHD-5USB-N integrates directly with the Xenon XP 1952g scanner without firmware updates or driver conflicts. Bluetooth 4.2 pairing follows standard HID protocols, compatible with most enterprise barcode scanning systems and WMS platforms (SAP, NetSuite, Oracle). USB connectivity uses standard USB-HID, avoiding custom cable assemblies and reducing procurement variance across your fleet when standardizing on this form factor.
When evaluating this accessory, confirm your scanner's environmental rating matches your deployment—if the paired Xenon XP 1952g lacks IP65 protection, this accessory's ruggedness becomes moot at the weakest link. For RF-sensitive environments (medical ICU scanning, heavy machinery floors with noise), consider a USB-only pilot deployment before committing Bluetooth across your operation.
Frequently Asked Questions
Q: Is the 1960HHD-5USB-N compatible with my existing Xenon XP 1952g scanners?
A: Yes. This is a genuine Honeywell accessory designed for the Xenon XP 1952g. No firmware updates or hardware modifications are required. Pairing follows standard Bluetooth HID protocols.
Q: Can I switch between Bluetooth and USB mode on the same unit?
A: Yes. The dual-mode design allows you to pair via Bluetooth for mobile operations and dock the unit via USB for fixed workstations. No hardware change is necessary—mode switching is handled at the host device level (mobile device, desktop terminal, or docking station).
Q: What happens if the scanner is dropped beyond 2.0 m?
A: The 2.0 m (6.5 ft) drop rating is a tested specification for the sealed plastic housing and optical elements. Impacts beyond this height may cause internal misalignment of the imager lens, resulting in scan failures or optical ghosting. Honeywell does not warrant damage from drops exceeding the rated specification.
Q: Is the 1960HHD-5USB-N suitable for wet-environment scanning (e.g., washdown facilities)?
A: The IP65 rating protects against direct water spray and dust ingress, but not submersion. If your operation involves full washdown protocols or tank immersion, verify that your Xenon XP 1952g scanner also carries an IP67 rating. IP65 alone is insufficient for submerged environments.
Q: What is the operating temperature range, and will it work in freezer environments?
A: Operating temperature is 0° to 50°C (32° to 122°F). The unit will function in cold-chain environments above 0°C, including unheated warehouses. Sub-zero environments (blast freezers below 0°C) are outside the rated specification and require escalation to Honeywell technical support.
Q: Does the 1960HHD-5USB-N work with my enterprise WMS?
A: Bluetooth 4.2 and USB HID protocols are standard across most WMS systems (SAP, NetSuite, Oracle, intraWarehouse). Confirm your mobile device or fixed terminal supports standard HID input; no proprietary drivers are required. If your WMS uses a custom barcode-entry format, test with a pilot device before fleet deployment.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 1960HHD-5USB-N is a straightforward accessory for operators who need flexibility between wireless mobility and wired docking—but it's easy to overestimate what IP65 and a 2.0 m drop rating actually protect against. The real value lies in its dual-mode connectivity and the fact that it's a genuine OEM part, which means zero integration risk and warranty retention on your Xenon XP 1952g fleet.
Technical Highlights:
- Bluetooth 4.2 + USB HID: Two transport modes on one device eliminate the cost and logistics pain of maintaining separate wireless and wired SKUs. Bluetooth 4.2 is solid for standard warehouse RF environments, but run a site survey if you operate alongside industrial machinery or medical IoT—interference can tank pairing reliability.
- IP65 vs. IP67 distinction: This accessory survives spray and dust, but not submersion or sustained high-pressure washdown. If your receiving dock runs full washdown cycles, you need both the accessory and scanner to carry IP67. Mismatching ratings creates a warranty liability—the weakest link fails first.
- 2.5–50.8 cm working range: Short-range area imaging is accurate and fast for dense label arrays, but slower for pallet-level or overhead scanning. Measure your typical barcode-to-scanner distance before migration; if you're used to scanning from 60+ cm away, this range will feel cramped and slow your throughput.
Deployment Considerations:
- Temperature boundary at 0°C is a hard stop for sub-zero environments. Blast freezer operations need vendor sign-off before deployment—operating outside the rated band voids warranty.
- Bluetooth pairing in RF-congested spaces (medical ICUs, automotive assembly) is a real gotcha. If Bluetooth drops are a risk, configure USB-only docking as fallback or pilot Bluetooth in a controlled area first.
The 1960HHD-5USB-N makes sense for mixed-environment operations where some staff work mobile inventory and others are anchored at receiving stations. It's especially valuable if you're already invested in the Xenon XP 1952g line and need to replace damaged units without breaking your ecosystem. For pure-warehouse scanning above freezing, it's a solid, low-risk accessory choice.
