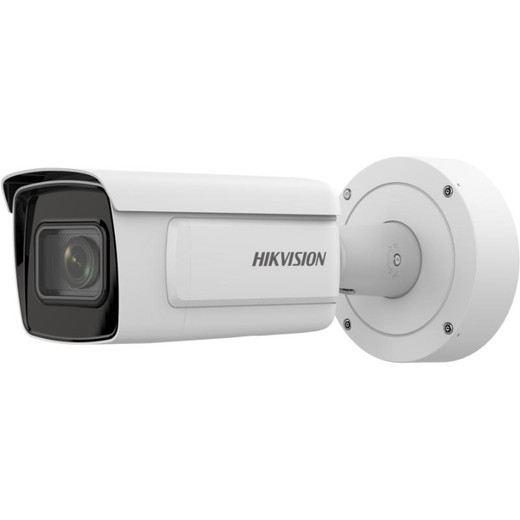

Hikvision IDS-2CD7AC5G0-IZHSYR 12MP DeepinView AI WDR EXIR Outdoor Bullet IP Camera

Hikvision IDS-2CD7AC5G0-IZHSYR 12MP DeepinView AI Bullet Camera

The Hikvision IDS-2CD7AC5G0-IZHSYR is a premium 12-megapixel outdoor bullet network camera engineered for mission-critical surveillance applications. Built on a 1/1.7" progressive scan CMOS sensor with 4000 × 3000 native resolution, this camera delivers forensic-grade detail across expansive coverage areas. The varifocal lens system—offering dual focal lengths of 2.8–12 mm and 8–32 mm—provides flexible deployment options with horizontal FOV ranging from 96.2° down to 14.4°, making it ideal for both wide perimeter coverage and long-distance target identification.

Advanced AI and Analytics

• DeepinView AI technology with multi-target detection (human body + face simultaneously)
• Face capture: detects up to 30 faces with -60° to 60° horizontal swing; supports 3 face libraries with 30,000 faces each
• People counting and queue management with real-time reporting and raw data export
• Perimeter protection: line crossing, intrusion, region entrance/exit detection with target-type filtering (eliminates false alarms from animals, leaves, light)
• 8 face features and 13 human body features for precise identification

Exceptional Low-Light Performance

Superior night vision capabilities ensure round-the-clock surveillance without image degradation. The camera achieves 0.009 Lux in color mode and 0.0009 Lux in black & white at F1.2 with AGC enabled. Dual IR supplemental light options—50 m for the 2.8–12 mm lens and 100 m for the 8–32 mm lens—deliver intelligent 850 nm IR illumination with smart technology to prevent overexposure. The extreme shutter range (1 s to 1/100,000 s) accommodates challenging lighting transitions and fast-moving subjects.

Robust Outdoor Design

• IP67 and IK10 ratings with aluminum alloy construction for harsh environment durability
• NEMA 4X anti-corrosion protection (with -Y variant)
• Operating range: -40°C to 60°C with 95% humidity tolerance
• Integrated heater for consistent performance in sub-zero conditions
• Digital WDR and advanced image enhancement (BLC, HLC, 3D DNR, defog, EIS, distortion correction)

Flexible Streaming and Storage

Five independent video streams plus custom stream support enable optimized bandwidth and storage utilization. Main stream supports up to 4096 × 2160 at 25/30 fps with H.265+/H.265/H.264+/H.264 compression, while sub-streams and tertiary streams scale down to 704 × 576. Built-in microSD/microSDHC/microSDXC slot (up to 256 GB) supports on-device recording with auto network replenishment (ANR) and memory card encryption. Full NAS integration (NFS, SMB/CIFS) and compatibility with Hikvision NVR systems ensure scalable storage architectures.

Enterprise-Grade Security and Connectivity

• PoE (IEEE 802.3at) and 12 VDC power options; max 18 W consumption
• Gigabit Ethernet with full protocol stack: TCP/IP, HTTPS, SFTP, RTSP, ONVIF (Profile S/G/T), ISAPI, SDK
• Advanced authentication: 802.1X (EAP-TLS, EAP-LEAP, EAP-MD5), HTTPS encryption, IP filtering, watermarking
• Up to 32 concurrent users with three permission levels; 20-channel simultaneous live view
• Compatible with iVMS-4200, Hik-Connect, and Hik-Central management platforms
• 2 alarm inputs, 2 alarm outputs; audio I/O with mono support (G.711, G.726, MP3, PCM compression)

Technical Specifications

• Sensor: 1/1.7" Progressive Scan CMOS, 12MP
• Lens: Varifocal, dual focal lengths with F1.2–F2.5 (2.8–12 mm) and F1.7–F1.73 (8–32 mm) aperture
• Video Codec: H.265+, H.265, H.264+, H.264, MJPEG; 32 Kbps–16 Mbps bitrate with CBR/VBR control
• Durability: IP67, IK10, NEMA 4X, CE-RoHS certified
• Dimensions: Ø144 × 347 mm; 1920 g

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The IDS-2CD7AC5G0-IZHSYR represents Hikvision's top-tier surveillance offering for organizations requiring intelligence-driven perimeter security and forensic detail in outdoor environments. The 12MP sensor with varifocal optics strikes an optimal balance between wide-area coverage and long-distance target recognition—critical for facilities spanning industrial parks, airport perimeters, and large-scale public venues. DeepinView AI's multi-target detection and face modeling eliminate reliance on post-incident forensics; real-time alerts can trigger immediate response protocols.

The quad-redundant analytics engine (line crossing, intrusion, region detection, face/body tracking) with smart filtering outperforms legacy motion detection systems that generate excessive false positives from environmental noise. Dual IR supplemental lights with 100 m range eliminate NVR storage bottlenecks caused by aggressive low-light compression, while the 5+N stream architecture allows simultaneous high-resolution recording and bandwidth-optimized remote viewing. For large deployments, native ONVIF support, ANR memory card backup, and FTP/NAS tiering ensure system resilience without vendor lock-in.

Enterprise-class encryption, 802.1X authentication, and watermark verification address regulatory compliance (HIPAA, GDPR, PCI-DSS). The camera's -40°C to 60°C operating envelope and integrated heater make it viable for arctic and desert installations. Maintenance-free operation is supported by pixel counter diagnostics and self-healing ANR protocols.
