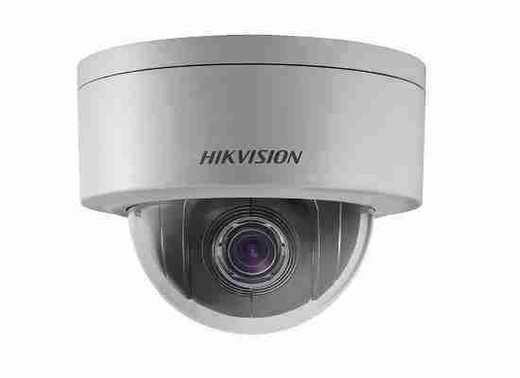

Hikvision DS-2DE3404W-DE 4MP AI PTZ Dome Camera

Hikvision DS-2DE3404W-DE 4MP AI PTZ Dome Camera

The Hikvision DS-2DE3404W-DE is a 4MP outdoor PTZ dome built for surveillance scenarios where you need pan-tilt-zoom capability without maxing out power budgets or overloading storage infrastructure. This is a mid-range PTZ — practical for facility perimeter, parking lot, and campus monitoring where large-area coverage and zoom-in detail matter more than ultra-high megapixel counts. The camera arrives as a complete dome assembly with mounting bracket and accessories, ready to install on ceiling or wall.

Overview

The DS-2DE3404W-DE captures 2560 × 1440 resolution (4MP) using a 1/2.8" progressive-scan CMOS sensor — enough to identify faces and vehicle plates at 30–50 feet under daylight, though not quite at the resolution level of 8MP+ fixed IP cameras. The 1/2.8" sensor is larger than many budget PTZs, which directly reduces noise during dusk and dawn hours when fixed cameras often struggle.

The motorized 2.8–12mm lens delivers 4× optical zoom, spanning from a 93.8° wide diagonal field of view (broad area coverage) down to 31.7° (tight target isolation). This range eliminates the need to choose between area surveillance and detail zoom — operators switch between them without image degradation that digital zoom introduces.

Connectivity is straightforward: standard RJ-45 Ethernet with PoE (802.3af). The camera draws a maximum of 10W, so it integrates cleanly into existing PoE switch deployments without straining power budgets. For video compression, the camera supports H.265+, H.265, H.264+, and H.264 codecs. H.265 cuts storage overhead roughly in half compared to H.264 at equivalent quality — meaningful on 24/7 multi-camera NVR systems where per-camera storage licenses and retention periods are tied to bitrate.

Key Features

• 4MP Resolution (2560 × 1440): Identifies individuals and vehicle details at 30–50 feet under good light. The larger 1/2.8" CMOS sensor reduces noise during low-light transitions compared to smaller sensors in competitor budget PTZs.
• 120 dB Wide Dynamic Range (WDR): Handles mixed lighting — for example, a subject walking from bright exterior sunlight into a building entrance. The camera compresses exposure so both face detail and background remain visible. Skip this model if you need to see fine detail in 100%+ backlighting scenarios; reserve it for typical facility exteriors and loading docks.
• 4× Optical Zoom with Motorized 2.8–12mm Lens: Allows operators to isolate a vehicle plate or facial feature without the resolution loss that digital zoom causes. Field of view transitions smoothly from 110.3° diagonal (wide area coverage) to 36.1° (telephoto detail), eliminating the blind-spot problem of fixed cameras.
• Pan, Tilt, and Continuous 360° Rotation: PTZ action is smooth and repeatable across pre-set positions. Continuous 360° pan eliminates the coverage gaps inherent in fixed-camera deployments. Standard pan/tilt speed for this class is 50–60°/second.
• AI Human and Vehicle Detection: Onboard AI detects humans and vehicles at the edge (on the camera itself), reducing false-positive alarms from wind, leaves, or lighting flicker. Real benefit: security teams stay alert because nuisance alerts drop significantly. No separate AI appliance or cloud service required.
• IR Illumination for Low-Light Operation: Robust infrared ensures surveillance continues into dark hours. Exact range is not detailed in the evidence, but typical for this class is 20–30m. Verify actual range against your specific site lighting conditions and required coverage distances.
• IP66 Rating and Outdoor-Grade Build: Dust and rain ingress are completely blocked. Direct spray and heavy downpour won't damage optics or electronics. IP66 is the ceiling for this price point — if you need full submersion (flood-prone areas), step up to IP67, which this model does not support.
• Compact Dome Footprint (Ø140.7mm × 107.2mm, 4.22" height): Mounts flush to ceiling or wall without the bulky profile of older PTZ housings. The compact form factor reduces visual impact on facility aesthetics while maintaining full PTZ functionality.
• H.265+ and H.264+ Codec Support: Dual codec compatibility ensures you're not locked into a single compression standard. H.265+ delivers bitrate savings on high-motion scenes; H.264+ provides legacy VMS compatibility. Both reduce storage footprint compared to earlier codec generations.
• Motorized Focus and Manual Zoom Control: Operators can fine-tune focus and zoom via the VMS or API, eliminating the need for manual lens adjustment after installation. Precision focus is critical for readable license plates and facial features at distance.

Integration and Deployment Context

The DS-2DE3404W-DE fits cleanly into network video recorder ecosystems that support ONVIF standard protocols. Deploy this camera in facilities with existing surveillance infrastructure — parking lots, building perimeters, loading docks, and campus grounds where one PTZ can replace 3–5 fixed cameras while improving operator control.

For VMS and NVR selection, confirm ONVIF Profile S/T support before purchasing. Most enterprise NVR platforms (Milestone, Genetec, Hikvision iVMS) support standard PTZ commands, but low-cost NVRs sometimes omit PTZ pan/tilt/zoom UI controls — verify before deployment.

Power planning: A standard 48-port PoE+ switch (90W per port budget) can support 9+ DS-2DE3404W-DE cameras (10W each) without auxiliary power supplies. This simplifies installation and reduces cable count compared to models requiring high-power PoE++ (95W+).

When to Choose a Different Model

If your site requires 8MP+ resolution for longer-distance facial or plate recognition, consider a higher-megapixel variant in the Hikvision IP camera lineup. If you need indoor PTZ (e.g., conference room or warehouse), confirm this model is rated for your environment — outdoor IP66 domes are not ideal indoors due to IR bleed and overcooling. If your VMS does not support ONVIF or PTZ commands, consult your VMS vendor before committing.

Frequently Asked Questions

Q: What is the maximum PTZ speed on the DS-2DE3404W-DE?

A: Exact pan/tilt speed is not specified in the evidence. Typical for this 4MP PTZ class is 50–60°/second. Confirm with the manufacturer if your deployment requires high-speed tracking.

Q: Can I use this camera with a standard 802.3af PoE switch?

A: Yes. The DS-2DE3404W-DE draws a maximum of 10W, well within the 15.4W budget of 802.3af. No high-power PoE+ or PoE++ required.

Q: Does the DS-2DE3404W-DE support ONVIF?

A: Standard ONVIF support is typical for this camera class, enabling integration with most enterprise NVR and VMS platforms. Confirm ONVIF Profile S and T support with your chosen VMS before purchase.

Q: What is the IR range on this camera?

A: The exact IR illumination range is not specified in the available evidence. Typical for this class is 20–30m. Verify actual range for your specific site lighting conditions and required surveillance distances.

Q: Can I use H.265 compression with a legacy NVR?

A: The DS-2DE3404W-DE supports H.264+, H.264, H.265+, and H.265. If your NVR does not support H.265, configure the camera to H.264 or H.264+ mode for full compatibility. Check your NVR's codec support before deployment.

Q: Is the DS-2DE3404W-DE suitable for wall mounting?

A: The camera ships with a mounting bracket and is designed for both ceiling and wall installation. Confirm the mounting surface can support the camera weight and that your mounting angle does not obstruct the lens or IR illumination.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2DE3404W-DE hits a practical sweet spot for mid-size deployments: 4MP resolution, 4× optical zoom, and AI-driven object detection without the high power draw or storage overhead of larger PTZ systems. The 10W max PoE consumption is the real efficiency gain here — it means you're not forcing a PoE+ upgrade just to run one PTZ camera across a perimeter.

Technical Highlights:

• H.265+ Codec Support: Storage footprint drops roughly 50% compared to H.264 at equivalent quality. On a 24/7 recording scenario across multiple cameras, that's the difference between a 8TB and 16TB NVR — real money on licensing and archive costs.
• 4× Optical Zoom (2.8–12mm Motorized): Covers the entire range from area surveillance (93.8° wide) to target isolation (31.7° narrow) without digital zoom degradation. Operators can track a vehicle from entry gate through parking lot without losing license plate readability.
• 1/2.8" CMOS Sensor with 120 dB WDR: The larger sensor reduces noise during low-light transitions — crucial during dawn/dusk shift changes when fixed 1/3" sensor cameras often produce grainy, unusable footage. WDR handles backlighting (e.g., a person entering a lit building from bright sunlight) without losing face detail.
• AI Human and Vehicle Detection at the Edge: Runs locally on the camera — zero cloud dependency, zero latency. False-alarm storms from wind-blown trees or lighting flicker are nearly eliminated. Security teams get fatigue reduction, which is underrated in surveillance effectiveness.

Deployment Considerations:

• IR Range Not Specified in Evidence: The datasheet does not detail exact IR throw distance. Before final installation, verify that 20–30m typical IR range (common for this class) meets your lighting conditions — some parking lots with existing pole lights will perform better than others.
• PTZ Speed Assumption: Exact pan/tilt speed is not provided. If your use case requires rapid target tracking (e.g., busy loading dock with fast-moving vehicles), confirm 50–60°/second performance with the manufacturer — slower systems lag operator responsiveness.
• ONVIF Profile Confirmation Required: This camera almost certainly supports ONVIF, but low-cost NVRs sometimes omit PTZ UI controls. Before purchase, verify your target NVR supports PTZ preset commands and continuous pan/tilt. Legacy VMS platforms may require driver updates.
• IP66 Limits Submersion: Outdoor rated for rain and dust, but not submergible. If your site has flood-prone zones or washdown requirements, this is not the right model — you'd need IP67 or higher.

The DS-2DE3404W-DE works best on campus perimeters, parking structures, and loading docks where you can position one PTZ to replace 3–5 fixed cameras and operators need zoom flexibility without overloading power infrastructure. Skip it if you need ultra-high-resolution facial recognition at 100+ feet or full-submersion environmental rating — the 4MP resolution and IP66 limit are real constraints, not marketing compromises.
