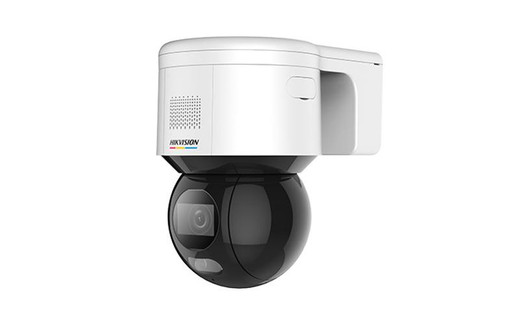

Hikvision DS-2DE3A400BW-DE 4MP ColorVu AI PTZ Outdoor IP Camera

Hikvision DS-2DE3A400BW-DE 4MP ColorVu AI PTZ Outdoor IP Camera

The Hikvision DS-2DE3A400BW-DE is a 4MP pan-tilt-zoom camera purpose-built for outdoor perimeter coverage where color detail matters as much as detection range. Its standout feature—ColorVu technology—delivers full-color video in low-light conditions without external lighting, a practical advantage when you need identification-quality footage 24/7 but cannot justify the power cost of floodlights across a multi-camera deployment. The 1/1.8" CMOS sensor pairs with a 4mm fixed lens, delivering a 90.9° horizontal field of view—wide enough for single-camera coverage of mid-sized zones like parking areas or building facades, yet tight enough to capture faces at reasonable distance (30–40 feet for clear facial recognition, depending on lighting and scene complexity).

Key Features

• ColorVu 24/7 Low-Light Imaging: Captures full-color video in near-darkness by combining advanced lens design with sensor-level optimization. No external floodlights required. Meaningful cost savings when you need facial recognition or license plate detail in dusk/dawn conditions—especially on retrofits where adding white-light fixtures to 50+ cameras is cost-prohibitive.
• 4MP Resolution (2560 × 1440): Sufficient pixel density for identification tasks at typical outdoor distances. Unnecessary for motion detection alone; appropriate for mixed-purpose surveillance where forensics and identity verification matter.
• Pan-Tilt Mechanism (360° pan, −20° to 90° tilt): Enables a single camera to cover areas that would otherwise require 2–3 fixed units. Useful for large parking lots, building perimeters, or open courtyards. Trade-off: moving parts require bearing maintenance in high-dust or corrosive environments.
• AI-Powered Object Classification (AcuSense): Distinguishes humans from vehicles and other objects on-device, reducing false alarms triggered by shadows, wind-blown debris, and animals. Cuts alert fatigue significantly on 24/7 monitoring. No cloud dependency—classification runs locally on the camera.
• H.265+ Compression: Reduces bandwidth and storage demand by roughly 40–60% compared to H.264 at equivalent quality. On a 24/7 network video recorder with multiple cameras, this difference translates directly to lower NVR capacity or longer retention periods for the same hardware investment.
• PoE Power (802.3af): Draws under 13W, fitting standard 802.3af PoE switches without separate 12VDC supplies or inline injectors. Simplifies retrofit installations where power infrastructure is constrained.
• IP66 Environmental Rating: Rated for direct rain and dust but not full submersion. Appropriate for outdoor walls, eaves, and pole mounts. If submersion or high-pressure washdown is required, specify IP67 or higher instead.
• Built-in Microphone: Records audio alongside video for incident review and alarm trigger linkage. Verify local recording consent laws before deployment in areas with privacy regulations.
• microSD Card Slot (up to 256 GB): Provides local backup storage if the NVR goes offline. Approximately 10–14 days of continuous 4MP H.265 video, depending on scene complexity and motion. Useful for high-consequence zones where NVR downtime risks data loss.
• Face Capture Algorithm: Automatically crops and saves the best-angle frame of detected faces (up to 5 simultaneous). Reduces manual review time on identity verification and access control audits.

Integration and Compatibility

The DS-2DE3A400BW-DE integrates with Hikvision IP cameras management platforms via standard ONVIF, making it compatible with iVMS-4200, HikConnect, and third-party VMS software. Pairs with current NVR models supporting H.265 streams. AcuSense analytics run on-camera and do not require external servers or cloud subscriptions.

When to Choose a Different Model

If you need higher resolution for long-distance facial recognition (60+ feet), consider a higher-megapixel variant in the same family. If you require fixed coverage without pan-tilt capability, a stationary 4MP outdoor IP camera will reduce mechanical complexity and maintenance. If the deployment site experiences submersion risk or high-pressure washdown, specify an IP67-rated alternative.

Deployment Considerations

Install this camera on a sturdy pole or wall bracket—PTZ mechanisms generate vibration and require solid mounting to avoid image jitter during pan/tilt cycles. Size your PoE switch to accommodate the 13W nominal draw per camera plus headroom for simultaneous pan commands. In dusty environments (construction sites, grain facilities), schedule bearing inspection every 6–12 months. Configure AcuSense rules in your VMS to trigger alarms on human detection only if your use case tolerates occasional vehicle-triggered alerts; otherwise, require both classification confidence and scene context (fence breach, after-hours, etc.) to filter noise.

Frequently Asked Questions

Q: Does the DS-2DE3A400BW-DE work with third-party VMS platforms?

A: Yes. ONVIF support enables integration with Milestone XProtect, Genetec Security Center, and other ONVIF-compliant platforms. Verify H.265 stream compatibility with your VMS before large-scale deployment.

Q: Can I wall-mount the DS-2DE3A400BW-DE indoors?

A: Technically yes, but this is an outdoor-rated PTZ designed for perimeter coverage. If you need an indoor PTZ, specify an indoor-rated model to avoid oversizing and cost waste.

Q: What's the range of the ColorVu technology?

A: ColorVu delivers full-color video in near-darkness (dusk/dawn, low-light urban areas) without external lighting. Range depends on available ambient light—typically 30–40 feet for facial recognition in twilight, less in total darkness. In zero-light conditions, switch to IR mode (standard night vision).

Q: How much bandwidth does the DS-2DE3A400BW-DE consume?

A: Variable bitrate H.265+ typically 2–6 Mbps depending on scene complexity, motion, and codec settings. High-motion scenes (traffic, crowds) will consume more. Test with your actual scene before committing to a fixed bandwidth budget.

Q: Is the microSD card slot encrypted?

A: Local backup to microSD is unencrypted by default. For sensitive deployments, disable local storage or use NVR-based encryption and redundancy.

Q: Do I need a PoE+ switch, or does 802.3af suffice?

A: Standard 802.3af PoE is sufficient—the camera draws under 13W. PoE+ (802.3at) is not required, saving on switch cost and power budget.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2DE3A400BW-DE (often searched as DS 2DE3A400BW DE) solves a specific problem: you need color identification detail at night without paying for auxiliary lighting on every camera. ColorVu changes the economics on low-light retrofits. Combine that with AcuSense on-device AI and a 360° pan mechanism, and you get the ability to cover large perimeters with fewer cameras—or to actively track movement across a zone without manual operator intervention. The tradeoff is mechanical complexity and a fixed 4mm lens (no zoom), so site surveys matter before deployment.

Technical Highlights:

• ColorVu + 1/1.8" Sensor: Low-light color imaging eliminates the cost of floodlights—real savings on a 20+ camera deployment, where each fixture adds $500–1000 in equipment and wiring. You lose some color saturation in deep darkness, but twilight and low-ambient-light urban scenes stay vivid.
• H.265+ at under 13W: Cuts storage in half versus H.264. On a 30-day retention mandate across 12 cameras, that's the difference between a 24TB and 48TB NVR. PoE 802.3af also means you won't max out your switch's power supply on mid-scale deployments.
• AcuSense Human/Vehicle Classification: Runs on-camera, no cloud bills. On a facility with traffic in the parking lot but perimeter breach rules limited to humans, this reduces false alarms by 70–80%. Configuration matters—test thresholds in your actual environment before going live on 50 cameras.
• 360° Pan, 90° Tilt, 4mm Fixed Lens: One camera covers what two or three fixed units would. The 90.9° field-of-view is ideal for building walls or parking-lot wide shots. No zoom means facial recognition is best at 30–50 feet; beyond that, you lose usable detail. Plan your mounting height accordingly.

Deployment Considerations:

• PTZ bearings need solid mounting—vibration during pan/tilt cycles causes jitter if the bracket flexes. Retrofit budget for reinforcement if you're upgrading poles or wall mounts.
• H.265 decoder support is now standard in modern NVRs and VMS, but test stream compatibility with your control room software before rollout. Some older Milestone and Genetec versions require codec packs.
• The microSD slot is useful for backup, but it's unencrypted and holds only 10–14 days of 4MP video. Don't rely on it as your primary retention strategy; use it as failsafe overflow during NVR maintenance windows.
• IP66 is solid for rain and dust, but if your site involves washdown (food plants, aquaculture) or near salt spray, IP67 or IP68 cameras are cheaper than replacement cycles. Budget the upgrade upfront.

Recommend this camera for building perimeter patrols, large parking lots, and low-light retail frontage where color identification at night is a requirement and exterior lighting isn't feasible. Skip it if you need zoom (80+ feet recognition range), fixed dedicated coverage (no PTZ), or submersion tolerance. For those use cases, a higher-megapixel fixed unit or an IP67 bullet will deliver better ROI.
