Type:
Dome
Features:
AI
Features:
AcuSense
Frame Rate:
30 fps
Sensor Type:
1/2.8" progressive scan CMOS
Max. Resolution:
2560 × 1440
Min. Illumination:
0.005 Lux color / 0 Lux IR
Shutter Speed:
1/1 s to 1/30000 s
Day & Night:
IR cut filter
Zoom:
25x optical, 16x digital
Slow Shutter:
Yes
DORI:
Detect 2047m, Observe 812m, Recognize 409m, Identify 205m
Focal Length:
4.8 mm to 120 mm
Field of View:
50.8° to 2.6° (horizontal)
Focus:
Auto, semi-auto, manual
Aperture:
Max. F1.5
Zoom Speed:
Approx. 4.8 s
Supplement Light Type:
IR
Supplement Light Range:
IR Distance: up to 200 m
Movement Range (Pan:
360°
Movement Range (Tilt:
-15° to 90° (auto flip)
Pan Speed:
0.1–160°/s (configurable), 240°/s preset
Tilt Speed:
Configurable 0.1–120°/s, preset 200°/s
Proportional Pan:
Yes
Presets:
300
Preset Freezing:
Yes
Patrol Scan:
8 patrols, up to 32 presets for each patrol
Pattern Scan:
4 pattern scans
Park Action:
Preset, Pattern, Auto, Tilt, Random, Frame, Panorama
3D Positioning:
Yes
PTZ Status Display:
Yes
Scheduled Task:
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-Off Memory:
Yes
Main Stream:
2560×1440 @ 25fps
Sub-Stream:
704×576 @ 25fps
Third Stream:
1920×1080 @ 25fps
Video Compression:
Main stream: H.265+/H.265/H.264+/H.264, +more
Video Bit Rate:
32 kbps to 16384 kbps
H.264 Type:
Baseline Profile/Main Profile/High Profile
H.265 Type:
Main Profile
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
8 fixed regions for each stream
Audio Compression:
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate:
16-192 Kbps
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering:
Yes
Protocols:
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View:
Up to 20 channels
API:
Open Network Video Interface v19.12, ISAPI, SDK
User/Host:
32 users, 3 levels
Security:
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security aud
Network Storage:
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client:
iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser:
IE11, Chrome 57+, Firefox 52+, Safari 11+
Image Settings:
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR:
120 dB
SNR:
> 52 dB
Defog:
Digital defog
Image Stabilization:
EIS
Image Enhancement:
BLC, HLC, 3D DNR
Privacy Mask:
24 programmable polygon masks
Regional Focus:
Yes
Regional Exposure:
Yes
Ethernet Interface:
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage:
microSD/SDHC/SDXC, up to 256GB
Built-In Speaker:
1 speaker, 30m range
Audio Support:
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm:
2 inputs, 1 output
Reset:
Yes
Basic Event:
Motion detection, video tampering alarm, exception, alarm input and output
Smart Event:
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Linkage:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking:
Manual tracking, auto-tracking
Face Capture:
Up to 5 faces simultaneously
Perimeter Protection:
Line crossing, intrusion, region detection, alarm by type
Power Type:
PoE
Dimension:
Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
Weight:
Approx. 5 kg (11.03 lb.)
Material:
ADC12
Operating Condition:
-30°C to 65°C, 90% RH non-condensing
Demist:
Yes
EMC:
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Safety:
UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Environment Rating:
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection:
IP66, IK10, 6kV surge protection
Product Type:
Dome
Connectivity:
Wired
Resolution:
4MP
Night Vision:
IR
Housing Color:
White
Warranty:
5-year warranty
Package Contents:

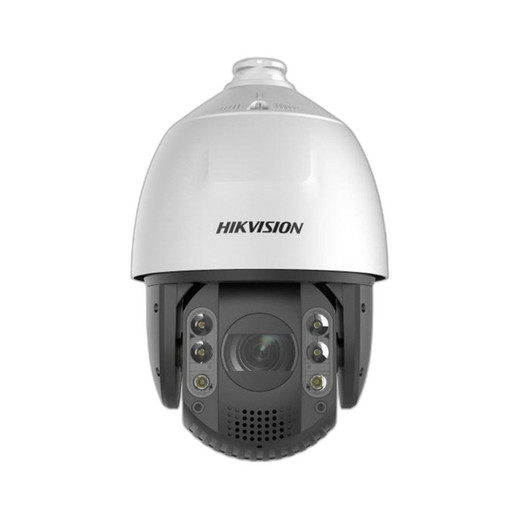

Hikvision AcuSense DS-2DE7A425IW-AEB 4 MP Outdoor AI IR PTZ Speed Dome Network IP Camera Mounting Bracket and Accessories Quick Start Guide Warranty Card Elevate your outdoor surveillance capabilities with the Hikvision DS-2DE7A425IW-AEB. Whether it'
