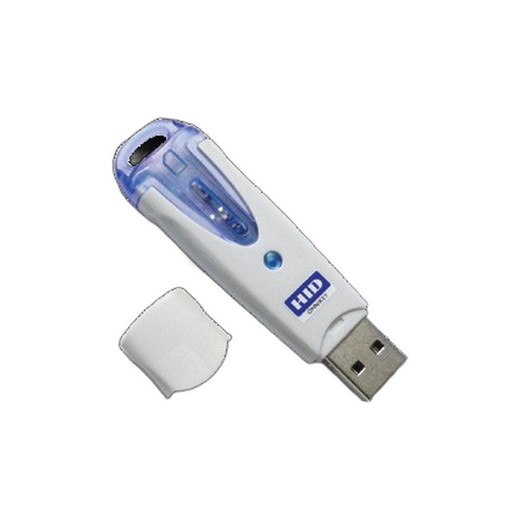

HID R61210320-2 OMNIKEY 6121 Contact Smart Card Reader
Overview
The HID R61210320-2 OMNIKEY 6121 is a contact-based USB smart card reader purpose-built for enterprise identity verification and access control deployments. Operating over a standard USB 2.0 connection, this reader integrates into existing credential management systems where contact-based smart card authentication is the requirement—think PIV (Personal Identity Verification) programs, multi-factor identity verification, or legacy access control platforms that depend on physical card contact to read stored credentials.
The silver finish housing suits both portable field deployment (badge readers at entry points, mobile provisioning carts) and fixed integration into unattended kiosks or cabinet-mounted control systems. This is a no-frills device: it does contact card reading and nothing else, which makes compatibility predictable and deployment straightforward for integrators already managing contact smart card readers in their fleet.
Key Features
- USB 2.0 Wired Connectivity: Direct USB connection eliminates wireless pairing overhead and eliminates RF interference concerns—useful in secure facilities where wireless devices may be restricted or where deterministic, audit-friendly connections are mandated.
- Contact Card Protocol Support: Reads standard contact smart cards (ISO 7816 family) via physical electrical contact. No need for contactless antennas or Bluetooth—contact readers are inherently air-gapped from a data leakage standpoint, which appeals to compliance-heavy verticals.
- Mobile-Class Form Factor: Compact enough to integrate into portable credential verification kits, badge readers, or integration with docking stations without significant footprint penalty.
- Silver Housing Finish: Neutral aesthetics for both fixed and portable mounting—blends into reception desk environments or fits into transport cases without visual clash.
- Enterprise Credential Management Integration: The R61210320-2 works with HID access control platforms as well as third-party identity and access management (IAM) systems that support standard contact card protocols. Verify with your credential database and control software before bulk deployment to confirm API or driver compatibility.
- Standard USB Power and Data: Single USB connection provides both data and bus power where available—no separate power supply required in most fixed deployments, simplifying cable runs and reducing power supply inventory.
Integration & Compatibility
The OMNIKEY 6121 (R61210320-2) is a device-level reader—it abstracts the contact smart card and exposes the credential data to your host system. Compatibility depends entirely on your access control software, credential database, and any intermediate readers or integration middleware.
Before deployment: confirm your control platform has driver support or API bindings for this specific model. HID provides OMNIKEY drivers for Windows and Linux; integration partners often layer their own credential provisioning software on top. If you are migrating from an older contact reader, sample a few units in your target environment—contact card reader performance can vary slightly based on card wear, chip tolerance, and firmware revision.
For access control system planning, budget for driver installation, credential provisioning training, and a commissioning period where you validate card read rates and user experience before full rollout.
Frequently Asked Questions
Q: Does the HID R61210320-2 work with Milestone XProtect or other IP video management systems?
A: The R61210320-2 is a standalone smart card reader, not a camera or video device. It integrates with access control and identity management systems, not video management platforms. If you need to tie card swipes to video events, that integration occurs at the access control system level, not through the video VMS.
Q: Can I deploy the R61210320-2 in outdoor or high-humidity environments?
A: The OMNIKEY 6121 is not rated for outdoor exposure. It is designed for indoor, climate-controlled deployment. If you need outdoor contactless card readers, consider outdoor-rated contactless alternatives in the HID product family, but those are a different technology and use case.
Q: What type of smart cards does the R61210320-2 support?
A: The R61210320-2 supports standard ISO 7816 contact smart cards (T=0 and T=1 protocols). This includes PIV cards, legacy ID-1 cards, and most enterprise credential cards that use physical electrical contact. Do not use this reader with contactless-only cards (those require inductive coupling, not electrical contact).
Q: Is the R61210320-2 NDAA Section 889 compliant?
A: Evidence does not confirm NDAA Section 889 compliance for this model. If NDAA compliance is a hard requirement for your deployment, contact HID directly or consult your contracting officer for certification status.
Q: What is the warranty period for the HID R61210320-2?
A: Warranty details are not included in the available evidence. Consult the product datasheet or contact the manufacturer for warranty terms and support options.
Q: Does the reader require a separate power supply, or does it draw power from USB?
A: The R61210320-2 draws its power and data from the USB 2.0 bus. No separate power supply is required for most deployments, simplifying installation and reducing cable clutter.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The R61210320-2 OMNIKEY 6121 is a straightforward contact card reader—no analytics, no wireless, no bells. That simplicity is its strength in secure credential environments. USB 2.0 wired connectivity means no RF interference, no pairing failures, and audit logs that show a direct physical connection to your identity system. Useful in PIV environments or legacy access control platforms where "air-gapped" and "deterministic" matter more than feature breadth.
Technical Highlights:
- ISO 7816 Contact Card Support: Reads T=0 and T=1 protocol smart cards via physical electrical contact. This means compatibility with PIV cards, legacy enterprise credentials, and any card that uses contact pins rather than RFID or NFC. No contactless overhead—contact readers are inherently resistant to remote card cloning since they require physical presence.
- USB 2.0 Bus-Powered Design: Draws power and data from a single USB connection. No separate 12V supply, no serial port hunting—plug into any USB 2.0 port and you're ready to read. Reduces cable runs and power supply inventory, a real win in distributed deployments (reception desks, kiosks, portable verification carts).
- Mobile-Class Form Factor: Compact footprint suits both fixed mounting and portable integration. Silver housing is neutral enough for enterprise aesthetics without standing out. Fits easily into mobile credential provisioning kits or integration into docking stations.
Deployment Considerations:
- Driver and API support is critical. The R61210320-2 requires HID OMNIKEY drivers (Windows, Linux) and compatible credential provisioning software. Verify your access control platform has driver bindings before committing to fleet deployment. Legacy systems may require middleware or custom integration layers.
- Contact card readers are sensitive to chip wear and contact oxidation. Budget for sample testing and user training on proper card handling—bent pins or dirty contacts can result in read failures even on functioning readers. In high-volume badge environments, expect some card-specific troubleshooting.
Deploy the R61210320-2 where security requirements demand air-gapped, deterministic card reads—PIV programs, federal facilities, or access control systems where contactless or wireless readers are prohibited. Not a fit for high-speed, touchless badge verification or environments where you need wireless convenience over connection assurance.
