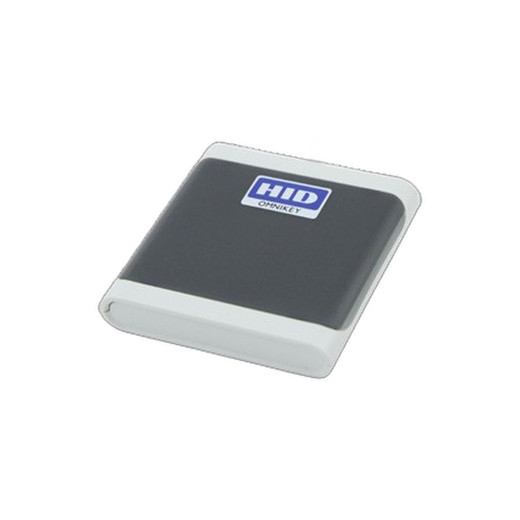

HID R50270001 Omnikey 5027 Dual-Interface Smart Card Reader
Overview
The HID R50270001 Omnikey 5027 is a wired dual-interface reader designed to handle both contact and contactless smart card credentials in enterprise access control, identity verification, and IT asset management workflows. This USB 2.0 device integrates directly into door access systems, credential verification stations, and identity management platforms without requiring proprietary drivers or specialized interfaces. RoHS compliance makes it suitable for regulated procurement environments where environmental standards matter.
Key Features
- Dual-Interface Technology: Supports both contact smart cards and contactless (NFC) credentials from a single reader. This means one device can authenticate multiple credential types — reducing deployment complexity and hardware sprawl across access points.
- USB 2.0 Connectivity: Standard USB connection ensures compatibility with any modern workstation or access control terminal. No proprietary adapters or special power supplies required — the device draws power directly from the USB bus, simplifying installation and reducing cable runs.
- Broad OS Support: Certified for Microsoft Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Ubuntu 11.04, and Debian Linux 6.0.x environments. This flexibility allows deployment across heterogeneous IT infrastructure — critical if your organization runs mixed Windows and Linux systems.
- Enterprise-Grade Compliance: RoHS certification ensures the reader meets environmental and material-restriction standards required by government and corporate procurement policies. No hidden compliance headaches during enterprise vetting.
- Straightforward Integration: Works with standard credential verification APIs and identity management platforms. Does not require custom drivers or firmware customization — reduces commissioning time and ongoing support burden.
- Compact Form Factor: Desktop-mount design places the reader at a verification station or access point without consuming significant space. Suitable for high-traffic entrance areas, data center access stations, and administrative credential verification kiosks.
Integration and Compatibility
The R50270001 is widely deployed in enterprise door access control systems, particularly those managing smart card or NFC-based credentials. Standard USB 2.0 connectivity and cross-platform OS support (Windows Server and Linux) mean integration into most identity management platforms and physical access control systems (PACS) is straightforward. No special network requirements — the device operates as a standard USB peripheral on any properly configured workstation or controller.
When to Choose a Different Reader
If your workflow requires wireless credential reading, a Bluetooth or wireless NFC variant would be needed — the R50270001 is wired-only. If you need mobile credential capture (smartphone-based NFC), consider readers with integrated mobile handset interfaces. For very high-volume credential processing or multi-lane scenarios, evaluate multi-reader configurations or door-integrated readers designed for throughput rather than desktop verification.
Typical Applications
- Building entry access control stations
- Data center and secure facility credential verification
- IT asset management and device provisioning workflows
- Telecom and enterprise security deployments
- Badge issuance and credential management kiosks
Frequently Asked Questions
Q: Does the HID R50270001 work with standard PC-based access control software?
A: Yes. The USB 2.0 interface and Windows Server/Linux compatibility mean the reader integrates with most enterprise identity management and physical access control platforms that support standard credential APIs. Confirm your PACS vendor has tested compatibility with the Omnikey 5027 line.
Q: What is the warranty on the R50270001?
A: Warranty terms are not specified in the manufacturer documentation. Contact the vendor or your system integrator for warranty coverage and support terms.
Q: Can the R50270001 read both contact and contactless cards simultaneously?
A: The reader supports both contact and contactless interfaces, but sequential operation is typical — one credential type per read cycle. It does not simultaneously read two different cards.
Q: Is the HID R50270001 suitable for outdoor deployment?
A: No. This is a desktop/indoor reader. For outdoor credential reading, you will need a weatherproofed reader rated for temperature and moisture extremes — consult your access control integrator for outdoor-rated alternatives.
Q: Does the R50270001 require special drivers?
A: Operating as a standard USB device, the reader typically requires only standard Windows or Linux USB smart card drivers. Most modern platforms include these natively. Check with your PACS vendor for any application-specific middleware.
Q: What power consumption should I budget for?
A: The R50270001 draws power directly from the USB bus. Power draw is minimal for a smart card reader — typical USB readers of this class consume under 500 mA. No external power supply is required.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HID R50270001 is a workhorse for any enterprise credential verification workflow that can tolerate a wired desktop reader. Dual-interface support (contact + contactless) in a single USB device eliminates the need for dual readers at access points, and the broad Windows Server and Linux compatibility ensures it will fit into heterogeneous IT environments without driver headaches or compatibility surprises.
Technical Highlights:
- Dual-Interface Architecture: One reader handles smart cards and NFC credentials — reduces hardware complexity and consolidates driver and API requirements into a single device.
- USB 2.0 Bus Powered: No external power supply needed. The R50270001 draws power directly from the USB port, simplifying installation and eliminating a failure point in the credential verification chain.
- Cross-Platform OS Support: Certified for Windows Server 2008 R2 through 2016 and Linux distributions (Ubuntu 11.04, Debian 6.0.x). If your PACS or identity management system runs on either platform, this reader will integrate without driver compatibility drama.
Deployment Considerations:
- Desktop mounting only — not rated for outdoor temperature, humidity, or weather extremes. If credential verification needs to happen at an exterior entrance, plan for a sheltered kiosk or consider a weatherproofed door-mounted reader instead.
- USB cable length constrains placement; verify your access control workstation or terminal can be positioned within practical reach of the credential processing point.
The R50270001 is the right choice for indoor access control stations, data center and secure facility credential verification kiosks, and IT provisioning workflows where a single, bus-powered, dual-interface reader simplifies procurement and reduces ongoing support burden. Skip this if you need wireless, outdoor-rated, or high-throughput multi-lane credential capture.
