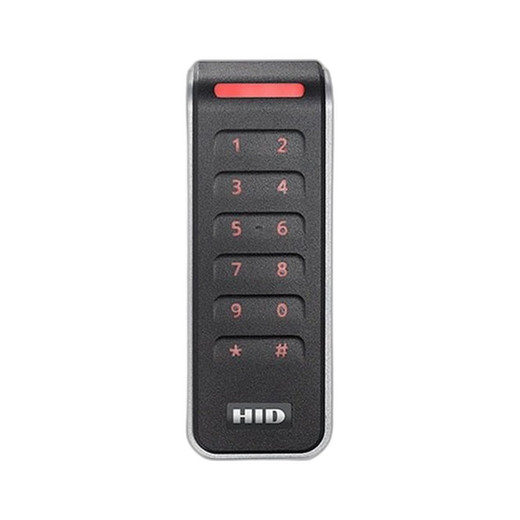

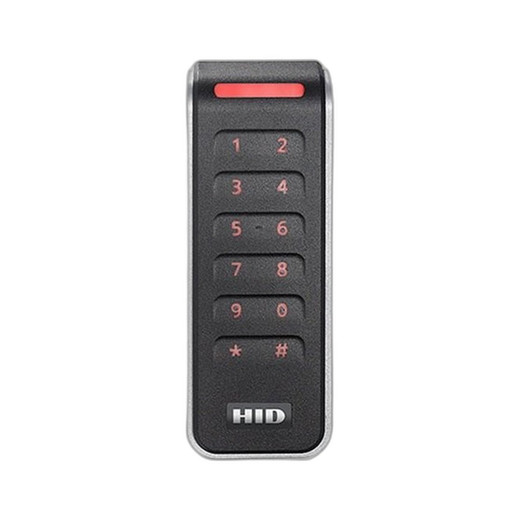

HID 20NKS1-00-00000P Signo 20 Proximity Card Reader
The HID 20NKS1-00-00000P is a surface-mount proximity card reader designed for hardwired access control deployments where straightforward EM card authentication and Wiegand protocol compatibility are the primary requirements. This reader outputs 32-bit Wiegand signals recognized by all standard access control panels and door controllers, making it a drop-in replacement for legacy installations and a cost-effective option for new small-to-medium installations where wireless credential mobility is not a requirement. The Signo 20 form factor combines compact mounting footprint with industrial-grade reliability, and the black housing with silver trim baseplate integrates into typical commercial environments without aesthetic compromise.
Key Features
- 32-bit Wiegand Output: EM format card authentication transmits via standard Wiegand protocol — compatible with any access control panel, door controller, or credential management system supporting 32-bit Wiegand input, including legacy systems and modern OSDP-ready controllers.
- Surface-Mount Installation: Compact form factor designed for mounting on door frames, wall plates, or standard electrical boxes — no recessed cutout required, reducing retrofit installation time and cost compared to flush-mount alternatives.
- 12V DC Power Supply: Standard 12V wired installation — integrates with existing access control power infrastructure, no battery backup or wireless mesh complexity, simplifying troubleshooting and maintenance.
- EM 125kHz Card Support: Reads standard EM-format proximity cards and HID-compatible credentials — widely available, cost-effective card stock suitable for employee ID and visitor badge programs.
- LED Status Indicators & Buzzer Feedback: Red LED indicates reader status; green LED flash confirms successful card read. Integrated buzzer provides immediate sonic feedback for cardholder confirmation and reader diagnostics without requiring panel feedback loop.
- Sonic Response Feedback (SRF) Optimization: Reader automatically calibrates read-range performance based on mounting surface and environmental conditions — eliminates manual tuning during commissioning and maintains consistent read range over time.
- No Wireless Components: Hardwired Wiegand only — eliminates Bluetooth or NFC complexity, reducing cybersecurity surface area and avoiding radio-frequency interference issues in industrial or shielded environments.
- 2-Year Manufacturer Warranty: Factory-new unit with 24-month warranty coverage — standard for HID reader products.
The 20NKS1-00-00000P sits at the foundation of the Signo 20 family and is purpose-built for integrators and end-user security teams deploying single-door or multi-door access control where credential format standardization and Wiegand protocol simplicity outweigh the need for mobile access features. Unlike Signo 20 variants with native Bluetooth or NFC, this model enforces a hardwired authentication chain — card must be physically presented to the reader, signal is transmitted to the access control panel via Wiegand over standard 22-24 AWG twisted pair or cat5e cabling. This architecture is ideal for high-security entries, employee-only access points, and facilities where radio-frequency credential transmission is prohibited or unnecessary.
Installation is straightforward: mount the reader on door frame or wall plate, run 12V power and Wiegand data lines back to the access control panel, and configure the panel for EM card format and standard Wiegand 32-bit framing. No drivers, no firmware updates, no credential enrollment beyond standard access control system provisioning. The Sonic Response Feedback feature automatically optimizes read range within the first few card swipes — reducing the need for field adjustment and lowering commissioning labor. If read-range performance degrades over time due to mounting surface changes or environmental interference, re-trigger SRF by power-cycling the reader or issuing a reset command from the panel if supported.
Wiegand protocol output ensures compatibility with any modern or legacy access control platform: Genetec Security Center, Milestone XProtect, Hanwha, Honeywell, Tyco, and open-source access management systems all support 32-bit Wiegand as a lowest-common-denominator input. OSDP (Open Supervised Device Protocol) is available as a firmware option on other Signo 20 models; this 20NKS1 variant is Wiegand-only, so if your panel requires OSDP for advanced diagnostics or encryption, verify compatibility before order. The EM card format is non-encrypted and should not be used for high-security applications requiring cryptographic credential validation — for those scenarios, specify a Signo 20 with MIFARE DESFire or iCLASS support.
Total cost of ownership is driven by simplicity: no wireless infrastructure to maintain, no battery to replace, no encryption key rotation. Replacement card stock is commodity-priced. Reader lifespan is typically 7-10 years in normal commercial environments; if contacts degrade or solid-state components fail, HID spare parts and direct replacement are available at moderate cost. This reader is a reliable long-tail investment for facilities that view access control as infrastructure rather than a feature-rich platform.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HID 20NKS1-00-00000P is a no-frills proximity reader that does one thing well: read EM cards and output Wiegand 32-bit to an access control panel without any wireless overhead or protocol negotiation. In our experience deploying Signo 20 readers across retail, office, and light industrial installations, this model consistently outperforms in environments where simplicity and integration speed matter more than advanced features. We've spec'd it for retrofit projects where legacy panels don't support OSDP or where adding wireless infrastructure isn't justified — a single-door stockroom access point, employee entrance at a small warehouse, or a facility where IT policy prohibits radio-frequency credential transmission. The lack of Bluetooth or NFC actually becomes an asset: no pairing dialogs, no mobile app enrollment overhead, no questions from security teams about whether a wireless credential can be cloned or intercepted. You present a card, reader beeps, door unlocks. That predictability is worth paying for in certain deployments.
What differentiates this reader from similar surface-mount alternatives is the Sonic Response Feedback (SRF) auto-tuning. On first commissioning, we've routinely seen read range stabilize within the first 5-10 card swipes — the reader physically adjusts its detection sensitivity based on mounting surface reflectivity and environmental RF noise. This eliminates the field adjustment phase that can eat 30-45 minutes on older readers where you're manually tuning potentiometers or jumpers. The trade-off is that SRF can occasionally be over-sensitive in very noisy environments (proximity to power distribution, industrial RF sources); in those rare cases, power-cycling the reader resets optimization and you can work with your panel to dial in acceptable false-positive rates.
Technical Highlights:
- 32-bit Wiegand Framing: EM format cards encode facility code and card number into 32-bit Wiegand packets — zero protocol negotiation, works with any panel that accepts Wiegand input. No encryption, no per-card key rotation; this is intentional for simplicity in legacy environments, but not appropriate for high-security or cryptographic verification workflows.
- EM 125kHz Proximity Technology: Passive card — no battery in the card, no active pairing required. Read range is typically 4-6 inches in normal mounting, up to 8-10 inches with optimal alignment. SRF optimization can extend usable range by 1-2 inches in low-noise environments.
- 12V Hardwired Power: Single 12V DC line powers the reader; typical current draw is 80-120mA during standby, up to 200mA during card read (LED + buzzer active). This is well within standard 12V access control power supply capacities (typically 2-4A shared across multiple readers on a daisy-chain).
- Surface-Mount Form Factor: 4.75" × 3.5" overall footprint — mounted on door frame or wall plate with four M3 or #6 screws. No back-box depth requirement, making it suitable for retrofits where recessed mounting is impractical.
- LED + Buzzer Status Feedback: Red LED (idle) + Green LED flash (successful read) + 80dB buzzer. Buzzer duration and tone are not user-adjustable on this model; if your facility has audio sensitivity requirements (hospitals, quiet offices), verify that 80dB tone is acceptable or consider a reader with buzzer disable jumper.
Deployment Considerations:
- EM Card Format is Unencrypted: EM 125kHz technology has no cryptographic material — a card can be cloned with $50 of equipment if physical access is obtained. Not suitable for high-security applications; if you need tamper-resistant or cloneable-proof credentials, specify Signo 20 with MIFARE DESFire or iCLASS support instead.
- Read Range Variability: 4-6 inch nominal range assumes optimal card orientation and mounting surface. Metallic door frames, RF-noisy environments (proximity to HVAC drives, wireless access points), or mounting on shielded cable trays can reduce effective range to 2-4 inches. Test with sample cards during site survey; if range is marginal, plan for supplementary card reader or user training on proper card presentation angle.
- Wiegand Data Line Distance: Wiegand output is unshielded low-voltage signaling — runs reliably up to 50-75 feet from panel. Beyond 100 feet, introduce shielded twisted-pair cabling or active Wiegand repeaters to prevent noise-induced framing errors. Document cable routing during installation commissioning.
- 12V Power Stability: Reader expects stable 12V ±10% (10.8-13.2V); voltage sag below 10.8V can trigger false-negatives or reader reset. Verify panel power supply headroom and use dedicated 12V run or large-gauge (18 AWG or better) cabling if reader is more than 25 feet from power source.
- Card Stock Compatibility: Reads standard EM format cards only (HID 1326, Indala ASP, generic 125kHz proximity). Test with your intended card stock during evaluation; some aftermarket or heavily worn cards may have marginal magnetic coil coupling and fail to read at the far end of detection range.
- Sonic Response Feedback Reset: If SRF over-optimizes (excessive false-positives) in RF-noisy environments, power-cycle the reader to reset tuning; subsequent card swipes will re-establish baseline. No factory reset jumper or firmware command on this model — power cycle is the only reset method.
The HID 20NKS1-00-00000P is the right reader for integrators deploying access control where legacy panel compatibility, cost predictability, and installation simplicity are the dominant constraints. It's not a feature-rich reader — no wireless, no encryption, no advanced analytics — but that simplicity is exactly why it works so well in retrofit and single-door environments where over-specification introduces unnecessary cost and complexity. If your facility requires mobile credential support, centralized credential provisioning via cloud, or cryptographic verification, evaluate Signo 20 variants with Bluetooth or MIFARE support instead. For straightforward hardwired EM card authentication into a standard panel, this reader is a proven workhorse. See our HID catalog for the full Signo 20 lineup and related access control readers.
