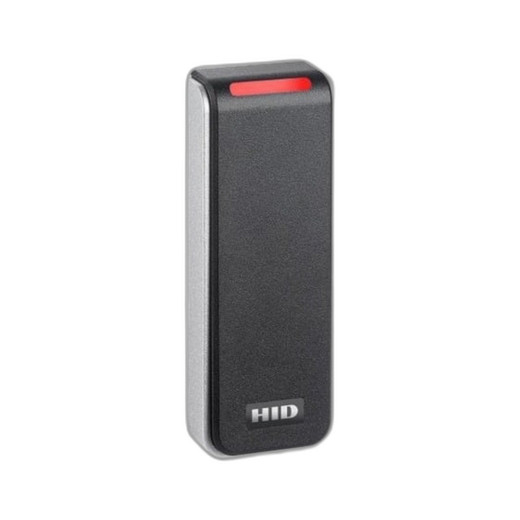

HID 20NKS-00-00JW5A Signo 20 Black Silver Reader

We've deployed the HID Signo 20 across dozens of retrofit and new-build access control projects, and it remains one of the most reliable proximity readers in its class. The appeal is straightforward: it does one thing exceptionally well — converts a proximity card swipe into Wiegand data — with virtually zero field failures. Unlike multi-technology readers that juggle credential formats and protocols, the Signo 20 proximity-only design eliminates software complexity and compatibility ambiguity. If your panel supports Wiegand and your credential program is HID proximity, this reader is bulletproof. The surface-mount form factor has saved us weeks of labor on retrofit jobs where drilling door frames or running conduit through walls wasn't an option. The visual and audible feedback — red LED + green flash + buzzer — is a small detail that matters operationally: facility staff immediately know whether a read succeeded or failed, reducing help-desk tickets and user frustration. We've seen integrators pair this reader with older Honeywell, Salto, and dormakaba panels that have been running for 15+ years; the Wiegand handshake is so standardized that compatibility issues are rare. The only caveat is that Wiegand carries no encryption on the wire, so physical security of the cabling run and panel location matters — not a problem in controlled-access environments like offices and retail, but something to flag if you're deploying in high-threat or covert-credential scenarios.

Technical Highlights:

• Wiegand 32-bit MSB Output: The HID standard for proximity readers. Every commercial access control panel manufactured in the last 20 years understands this protocol. Zero translation layer or gateway needed. On a 50-door retrofit, you eliminate one potential failure point.
• ASP10022 Card Format: HID's standard proximity card encoding. Ensures card inventory is fungible across multiple facilities and reader models. Credential provisioning is identical whether you're using Signo 20 or older HID readers — no format conversion or encoding tricks.
• Surface-Mount Design with Finished Aesthetics: Black housing with silver trim baseplate reduces cosmetic rework at the door. On high-visibility entrances (lobbies, retail), this finish saves change orders and rework. Mounts to existing door frames; no structural modification needed.
• Integrated Feedback Loop (LED + Buzzer): Red status + green flash + 80dB buzzer confirm read success in real time. Users don't stand at the door wondering if the system accepted their card. Reduces access-denied call volume and improves user confidence.
• 2-Year Warranty with Field-Ready Support: HID's warranty covers defects; out-of-box support means you're not waiting for RMA processing on a single reader. On large deployments, one-for-one swap logistics are built into the cost model.

Deployment Considerations:

• Wiegand signal runs over standard two-conductor shielded cable (data0, data1, ground). Keep cable runs under 500 feet in electrically noisy environments (industrial, manufacturing floors with VFDs). Over that distance, signal integrity degrades — use repeaters or opto-isolators if long runs are unavoidable.
• Proximity cards are susceptible to cloning if credential format is public (ASP10022 is). Mitigate by enforcing physical card custody, short card lifetime, and audit logging at the panel level. Don't rely on the reader alone for anti-fraud; the panel's access control policy is the real gatekeeper.
• LED and buzzer feedback operate on reader power; verify your panel's Wiegand output provides 12V or 24V tap for reader supply. Underpowered installations can result in dim LEDs or silent buzzers, defeating user feedback. Check panel documentation before ordering cabling.
• Surface-mount installation assumes controlled-access mounting locations (indoors, protected from direct weather). For outdoor or harsh-environment deployments, request the fully enclosed Signo 20 outdoor variant with weatherproofing — this base model is not rated for rain exposure.
• Credential provisioning and access decisions live entirely in the panel. The reader is a dumb input device. Audit logs, anti-passback logic, PIN secondary factors, and time-based access must be configured in the access control platform, not the reader.

The HID Signo 20 proximity reader is the right choice for facilities with established HID credential programs, legacy Wiegand panels that don't need upgrade, and retrofit projects where simplicity and labor cost matter more than multi-credential flexibility. If you need iCLASS, DESFire, NFC, or OSDP encryption, step up to a multi-technology Signo variant or a newer OSDP reader platform — but for card-only access at single or multiple doors, this reader delivers reliable, proven performance. Explore the full range of HID access readers in the HID catalog.
