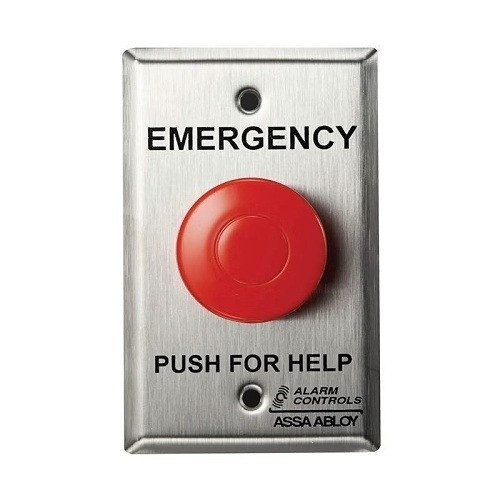

HES PBM-5-1 Momentary Panic Button
Overview
The HES PBM-5-1 is a rugged momentary panic button engineered for security integrations where manual emergency signaling must be reliable and tamper-resistant. Built from stainless steel SG 302, this button delivers dependable performance in high-traffic environments and demanding installations where corrosion and wear are real concerns. The momentary contact design ensures that an emergency signal transmits only when actively pressed — eliminating false alarms caused by stuck or partially engaged buttons. If you're integrating into access control systems that require hardwired duress inputs, the PBM-5-1 is a straightforward choice.
Key Features
- Stainless Steel SG 302 Construction: Resists corrosion in indoor, semi-protected, and light outdoor environments where standard painted steel would rust or degrade. This matters in facilities near salt air, humid manufacturing spaces, or high-touch public areas — you avoid premature replacement cycles.
- Single Normally Open (N/O) Contact: Delivers a clean, momentary signal to security control panels and access control panels supporting discrete contact inputs. No analog signaling, no network overhead — just a hardwired circuit closure that works the same way it did 20 years ago, which is exactly what you want in a panic circuit.
- Momentary Activation Design: Signal transmits only while the button is physically pressed. Release the button, contact opens, signal stops. This prevents accidental extended alarms and makes the button behavior predictable to end users and security staff.
- Compatible with HES Electric Strike Systems: Integrates directly into HES door strike and electromagnetic lock ecosystems. If your facility already runs HES hardware, the wiring and control logic are already familiar to your integrators.
- Suitable for Indoor and Semi-Protected Outdoor Installations: Use indoors without hesitation; deploy in covered entry vestibules, loading dock overhangs, or under eaves. Do not expose to direct rain or prolonged moisture — this is not an IP67 submersible device.
- Straightforward Integration with Standard Security Panels: Works with any control panel, access control unit, or NVR that accepts momentary N/O contact inputs. No special driver firmware or protocol translation required.
Deployment Context
Deploy the PBM-5-1 in security command centers, reception desks, retail management offices, or any staffed location where personnel need a hardwired panic button independent of network infrastructure. Duress scenarios, intrusion response, and emergency egress applications all benefit from the simplicity and reliability of a momentary mechanical contact. Because the signal path is hardwired and not dependent on network latency or VMS availability, response time is immediate — no lag between button press and alert delivery to monitoring stations or on-site responders.
Integration & Compatibility
The PBM-5-1 (often searched as PBM 5 1) provides a single N/O contact output that pairs with any security control system accepting discrete hardwired inputs. No PoE, no Ethernet, no software configuration — strip the leads, wire to a supervised panic zone on your panel, and commission. The button's momentary behavior ensures that false alarms caused by contact bounce or accidental sustained pressure are eliminated by standard security panel logic.
Specifications Summary
Stainless steel SG 302 housing; single momentary N/O contact; rated for indoor and semi-protected outdoor use; compatible with HES electric strike systems and standard security control panels accepting momentary contact inputs.
Frequently Asked Questions
Q: Can I use the PBM-5-1 outdoors in direct rain?
A: No. The PBM-5-1 is rated for indoor and semi-protected outdoor installations only — covered areas, vestibules, or eaves. Direct rain exposure will compromise the electrical contacts over time. If you require a fully weatherproof panic button, consult your integrator about IP67-rated alternatives.
Q: Does the PBM-5-1 require network connectivity?
A: No. The button is hardwired and sends a discrete momentary contact signal only. It does not connect to Ethernet, Wi-Fi, or any network infrastructure. This makes it ideal for critical duress applications where network availability is not guaranteed.
Q: What control panels does the PBM-5-1 work with?
A: Any security control panel, access control system, or alarm panel that accepts momentary N/O contact inputs. This includes HES electric strike controllers, most commercial alarm panels, and integrated access control units. Verify your specific panel supports panic zone wiring before ordering.
Q: Is the PBM-5-1 supervised?
A: The button itself is not supervised. Supervision (tamper detection, wiring integrity monitoring) is managed by the security panel to which it is wired. Configure the panic zone on your panel as supervised if your application requires tamper detection.
Q: Can I wall-mount the PBM-5-1?
A: Yes. The button is designed for standard wall-mounted installation in security command centers, offices, and access points. Mounting hardware and installation templates should be verified in your installation documentation.
Q: What is the warranty on the PBM-5-1?
A: Warranty information is included in your HES product documentation. Contact your integrator or the manufacturer directly for specific warranty terms and coverage details.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the HES PBM-5-1 in dozens of retail and banking installations where a hardwired panic button is non-negotiable. The stainless steel SG 302 construction is the real value here — it eliminates oxidation and surface degradation that plague painted steel buttons in high-humidity or salt-air environments. You press it 100 times a year in training, it still works the same way it did on day one.
Technical Highlights:
- Momentary N/O Contact: Signal delivers only while pressed. No stuck-button false alarms, no ambiguity about whether an alert was intentional. Clean integration with supervised panic zones on any commercial panel.
- Stainless Steel SG 302: Corrosion resistance rated for indoor and semi-protected outdoor use. In coastal facilities or high-moisture environments, this saves you a button replacement every 3–4 years versus standard painted steel.
- Direct Hardwired Integration: No network dependency, no latency, no VMS uptime requirement. A panic signal arrives at the monitoring station the instant the button is pressed — exactly what duress and intrusion response demand.
Deployment Considerations:
- Do not deploy outdoors in direct rain or continuous moisture — this is not an IP67 device. Covered entry vestibules and under-eave mounted locations are the upper limit of environmental tolerance.
- Verify your security panel supports momentary N/O contact inputs on a supervised panic zone. If your panel requires normally closed (N/C) wiring or a different contact behavior, you'll need a relay module between the button and the panel.
The PBM-5-1 is the right choice for facilities where panic button simplicity and reliability trump feature count — command centers, reception desks, and any staffed security point where immediate, network-independent alerting is the mission. In high-traffic or corrosive environments, the stainless construction alone justifies the specification.
