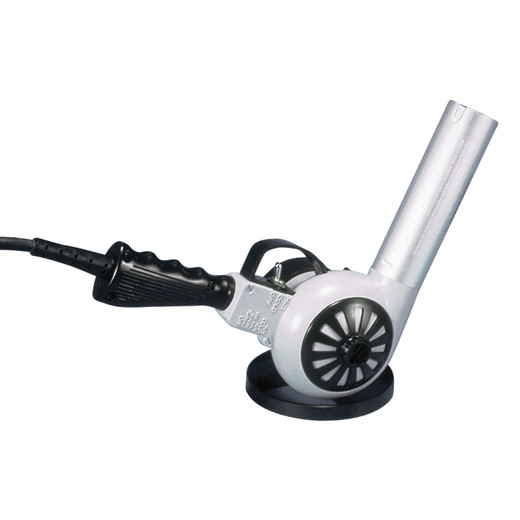

Panduit HSG-115V-650 Dual-Temp Heat Shrink Gun w/ Stand

Panduit HSG-115V-650 Heat Shrink Gun with Stand

Professional heat shrink termination requires controlled, consistent heat delivery—particularly when sealing wire splices, environmental boots, and cable identification markers in security and network installations. The Panduit HSG-115V-650 is a dual-temperature heat gun engineered for bench and field deployment, delivering switchable output between 650°F (343°C) and 900°F (482°C) to accommodate thin-wall tubing, adhesive-lined sleeves, and heavy-duty environmental protection products. The included circular stand converts any workbench into a hands-free shrinking station, letting you feed connectors and cable assemblies through the heat zone while maintaining precise positioning. Rated for 115V AC at 10 amps, this tool handles continuous-duty termination runs in integration shops and temporary jobsite hookups alike.

Key Features

• Dual-temperature switch: 650°F for thin-wall polyolefin tubing, 900°F for adhesive-lined and thick-wall environmental boots
• Included circular stand transforms the gun into a stationary heat tunnel for hands-free operation during high-volume termination runs
• 115V AC, 10-amp rating supports standard jobsite circuits and integration shop outlets without dedicated power infrastructure
• Compatible with Panduit Panduct heat shrink tubing, HSTT series thin-wall tubes, HSTS adhesive-lined sleeves, and third-party 2:1 and 3:1 shrink products
• Ergonomic handle and trigger design reduce fatigue during extended cable-prep sessions
• RoHS compliant construction meets commercial and government procurement environmental standards

The dual-temperature selector addresses the full spectrum of heat shrink materials common in low-voltage and security installations. Set to 650°F for standard polyolefin identification sleeves and thin-wall insulation on twisted-pair splices—this lower setting prevents scorching and ensures even shrinkage on materials with tight activation windows. Switch to 900°F when sealing adhesive-lined environmental boots on outdoor camera pigtails, fiber breakout protection, or heavy-duty 3:1 shrink over conduit-to-enclosure transitions. The higher temperature activates internal mastic sealants and drives full cross-linking in thick-wall products, delivering IP67-grade moisture barriers on exposed cable entries. Both settings deliver focused airflow that shrinks tubing uniformly without overheating adjacent insulation or damaging pre-terminated connectors—critical when working within inches of RJ45 plugs, MC4 solar terminals, or factory-molded camera pigtails.

The included stand is designed for integration benches running production terminations—mount the gun in the circular cradle, set your temperature, and feed connectorized cables through the heat zone with both hands free to control feed rate and rotation. This configuration is standard in shops pre-building IP camera trunk cables with heat-shrink strain reliefs, sealing fiber patch cords with adhesive boots, or applying identification markers to 66-block jumper harnesses. The 10-amp draw runs continuously on standard 15A circuits without tripping breakers, and the 115V requirement matches shop and jobsite power across North America. For field deployment, remove the gun from the stand and operate handheld—the balanced weight distribution and trigger lock support extended shrinking sessions during rack terminations, overhead cable tray runs, and outdoor enclosure weatherproofing. The tool accepts Panduit's optional accessory nozzles (sold separately) for concentrated heat on micro-connectors or diffused airflow across wide cable bundles.

RoHS compliance ensures the HSG-115V-650 meets federal and state environmental procurement standards for government and educational deployments. This gun pairs with Panduit's full heat shrink product line—HSTT thin-wall tubes for wire marking and insulation repair, HSTS adhesive-lined sleeves for environmental sealing, and TCHV heavy-duty boots for outdoor enclosure cable entries—as well as aftermarket heat shrink from TE Connectivity, 3M, and other manufacturers offering 2:1 and 3:1 shrink ratios. Keep this tool in your integration van for field terminations or mount it permanently on the bench for production runs—the dual-temp design and stand flexibility cover the full range of heat shrink applications in commercial security, datacenter, and AV installations.
