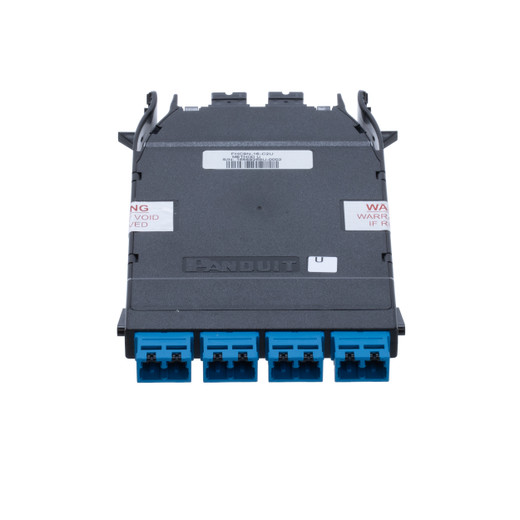

Panduit FHC9N-16-C2U Fiber Cassette

Overview

The Panduit FHC9N-16-C2U is a standard-width HD Flex™ fiber cassette designed for high-density fiber optic deployments. It facilitates the termination of 16 OS2 fibers, utilizing a universal polarity configuration to simplify connections between MPO-12 male connectors and eight CS connectors. This unit is engineered for applications requiring efficient fiber management and reliable signal transmission within structured cabling systems.

Compatibility

This cassette is part of the Panduit HD Flex™ system, designed to integrate with Panduit's fiber optic enclosures and panels. While specific model numbers for compatible enclosures are not detailed in the provided evidence, it is intended for use within Panduit's broader fiber optic infrastructure solutions. The universal polarity ensures broad compatibility with standard MPO trunk cables and CS patch cords.

Installation Notes

The cassette is constructed from polycarbonate material, offering durability in managed environments. It terminates 16 OS2 fibers, with a 9-micron core diameter, suitable for single-mode applications requiring extended reach. The MPO-12 male connector provides a high-density interface, while the eight CS connectors offer a robust, widely adopted connection point for patch cords. The unit supports standard insertion loss, ensuring signal integrity for its intended use cases.
