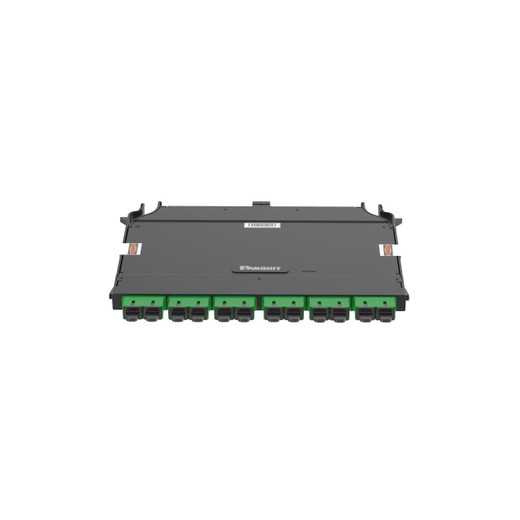

Panduit FHC9N-12-3GU 12-Fiber MPO-SC/APC HD Flex Cassette

Panduit FHC9N-12-3GU HD Flex 12-Fiber MPO to SC/APC Cassette

When you're breaking out MPO trunk cables in high-density fiber enclosures, polarity management and loss budgets become critical. The Panduit FHC9N-12-3GU HD Flex cassette converts one 12-fiber MPO backbone connection into six duplex SC/APC ports, delivering singlemode OS2 performance with standard insertion loss in a compact, hot-swappable module. Built for universal polarity in Panduit's HD Flex system, this cassette fits 1U enclosures that require reliable 40G/100G-to-10G breakout in enterprise data centers, telecom distribution frames, and multi-tenant unit fiber deployments.

Key Features

• One 12-fiber MPO-12 male input to six duplex SC/APC outputs — breakout trunk cables to individual patch connections
• OS2 singlemode fiber (9µm core) — supports 10G, 40G, 100G applications over extended distances up to 10 km and beyond
• Universal polarity cassette — works with Method A, B, or C polarity schemes; field-adaptable without re-termination
• Standard insertion loss specification — meets TIA-568 performance requirements for permanent link budgets
• SC/APC angled physical contact connectors — 8° angle minimizes back reflection below -60 dB for DWDM and high-speed analog applications
• HD Flex hot-swappable design — install or remove cassettes without disrupting adjacent circuits in live enclosures
• Black polycarbonate housing — durable, flame-retardant material suitable for plenum-rated enclosures
• Pre-terminated and factory-tested — arrives ready to install with guaranteed optical performance

The FHC9N-12-3GU cassette uses a 12-fiber MPO trunk interface on the rear and presents six duplex SC/APC ports on the front panel. The MPO connector is male (pins), factory-mated to the female MPO adapter in HD Flex enclosures. Internal fiber routing follows the universal polarity pattern, meaning you can deploy this cassette with any standard MPO trunk cable (Type A, B, or C) and achieve correct transmit-to-receive pairing by selecting the appropriate trunk cable polarity. OS2 fiber provides 9-micron core diameter and supports singlemode applications from 1310 nm to 1550 nm wavelengths, making this cassette suitable for 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4, and DWDM transport. Standard insertion loss (typically ≤0.75 dB per mated connector pair) ensures you stay within TIA-568.3-D permanent link loss budgets even after multiple mating cycles. The SC/APC connector's 8° angle reduces Fresnel reflection to less than -60 dB return loss, critical for preventing signal degradation in DWDM systems, CATV distribution, and high-bitrate coherent optics.

HD Flex cassettes install into Panduit's modular fiber enclosures, patch panels, and zone distribution boxes. Each cassette occupies one slot and latches into place with a push-to-release mechanism, allowing you to add, remove, or rearrange breakout modules without shutting down adjacent circuits. The universal polarity design eliminates the need to stock separate cassettes for each polarity method—deploy the same FHC9N-12-3GU cassette whether your backbone uses Method A (straight-through MPO pinout), Method B (key-up to key-down pair flip), or Method C (twisted pairs). Front-panel SC/APC ports accept standard duplex SC connectors; the APC angle prevents you from accidentally mating SC/UPC patch cords (which would cause high loss and potential damage). In migration scenarios, this cassette enables a staged approach: install MPO trunk cables between buildings or floors, then break them out to SC duplex connections at each floor or zone, preserving your existing SC patch cord inventory while upgrading the backbone to higher-density MPO. Typical deployments include 40G QSFP+ to 10G SFP+ breakout for spine-leaf data center fabrics, fiber-to-the-desk enterprise LANs using centralized electronics and duplex SC wall outlets, and multi-dwelling unit (MDU) installations where a single 12-fiber MPO riser feeds six dwelling units via SC/APC drops.

The FHC9N-12-3GU cassette complies with TIA-568.3-D structured cabling standards for singlemode fiber and IEC 61754-7 MPO connector performance. Factory testing verifies insertion loss, return loss, and fiber geometry before shipment, and each cassette ships with test data traceable to the serial number. The polycarbonate housing meets UL 94 V-0 flammability rating, suitable for installation in plenum-rated enclosures when paired with plenum-rated MPO trunk cables. Panduit HD Flex cassettes integrate with the broader Panduit fiber management ecosystem, including FHD series high-density enclosures, FZ zone boxes, and FAP angled adapter panels, giving you a consistent platform for designing scalable, maintainable fiber infrastructure from the equipment room to the work area.
