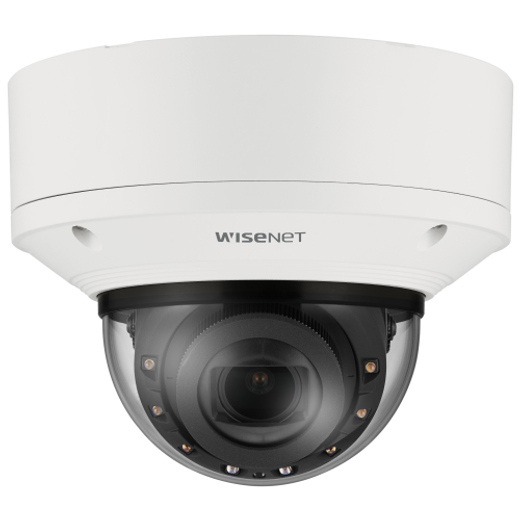

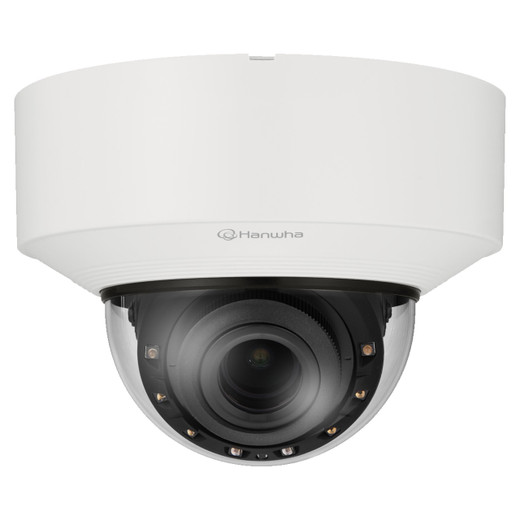

Hanwha XND-C6083RV 2MP AI Dome IP Camera

Hanwha XND-C6083RV 2MP AI Dome IP Camera

The XND-C6083RV is a 2MP indoor dome engineered for deployments requiring AI-driven threat detection and vandal-resistant construction. Built on a 1/2.8" progressive CMOS sensor with motorized varifocal optics (2.8–12mm, 4.3x zoom), this camera delivers adaptive focal control across dynamic indoor environments—eliminating the need for manual re-lens procedures during installation. The motorized lens means you can adjust framing and depth-of-field remotely, reducing site visits and deployment costs.

Key Features

• 2MP Resolution (1920×1080) – Adequate for wide-area monitoring in retail, warehouse, and office environments; trades absolute detail for broader horizontal coverage. Multiple sub-profiles support bandwidth optimization on congested networks.
• Motorized Varifocal Lens (2.8–12mm, 4.3x zoom) – FOV range spans 119.5° (wide) to 27.9° (telephoto). Remote focus adjustment means you avoid the cost and labor of a technician climbing to reposition fixed lenses; especially valuable in ceiling-mount installations where physical access is difficult.
• extremeWDR (150dB) – Simultaneously captures bright and shadowed regions in high-contrast scenes (e.g., loading docks with direct sunlight and deep shadows). Pairs with BLC, HLC, and SSDR for refined backlight handling; essential in mixed-lighting retail or warehouse spaces where a fixed exposure would lose either the bright or dark details.
• WiseIR (40m range, 0Lux operation) – 850nm infrared illumination reaches 40 meters (131 feet) in complete darkness. Minimum illumination of 0.001Lux (B/W, 1/30sec) ensures round-the-clock surveillance without external lighting. Critical for after-hours security in unlit storage areas or exterior entries without streetlights.
• H.265 and H.264 Compression – H.265 cuts storage overhead roughly in half compared to H.264 at equivalent quality, a significant factor when recording 24/7 across dozens of cameras. Supports adaptive smart codec modes (WiseStreamII/III) to dynamically compress less-detailed background regions while preserving clarity in motion areas, further reducing bandwidth and storage.
• AI Object Detection and Business Analytics – Identifies persons, faces, vehicles (car, bus, truck, motorcycle, bicycle), and license plates with intelligent filtering to reduce false alarms from shadows, reflections, or moving foliage. IVA events (virtual line/area crossing, enter/exit, loitering, direction detection) generate alerts without server-side processing. People counting and queue management provide operational insights for staffing decisions—useful in retail and warehouse floor planning.
• IP52/IK08 Rating – IP52 rating seals against dust and water jets; IK08 rating withstands 5J vandal impact (equivalent to a 1.25kg ball dropped from 40cm). Suitable for semi-protected indoor spaces with moderate abuse risk, but not full submersion or extreme impact environments.
• PoE Power (Class 3, 12.95W max) – Draws under 13W via standard 802.3af PoE, so it integrates with existing infrastructure without straining power budgets. No separate 12VDC supply needed unless you prefer hardwired backup; simplifies cabling in conduit-constrained installations.
• Edge Storage (microSD/SDHC/SDXC up to 512GB) – Local recording continues autonomously during network outages or at alarm triggers, independent of the NVR. Useful for liability documentation or low-bandwidth sites where constant cloud upload is impractical.
• Digital Image Stabilization (Gyro-based) – Built-in gyro sensor corrects vibration and shock, critical for ceiling-mount deployments where HVAC systems or structural movement introduce jitter. Significantly improves playback quality and video search usability.
• ONVIF Profile S/G/T and Wisenet Integration – Compatible with standard VMS platforms (Milestone, Wisenet, third-party ONVIF clients). Configurable I/O ports support external alarm integration (door sensors, panic buttons). 2GB RAM and 512MB Flash provide sufficient headroom for edge analytics without cramping performance.

Integration and Compatibility

The XND-C6083RV (often searched as XND C6083RV) supports up to 10 video profiles and 3 virtual channels, accommodating 20 concurrent unicast users without degradation. CBR/VBR bitrate control allows flexible bandwidth management across variable network conditions. SSL/TLS encryption, 802.1X EAP authentication, IP filtering, and pre-installed device certificates secure against unauthorized access. Compatible with standard 1/2" (M20) conduit and gangbox configurations for retrofit installations.

Frequently Asked Questions

Q: What's the maximum frame rate on the XND-C6083RV?

A: 60fps at H.265/H.264 (Main or High profile), 50fps in PAL regions, and 30fps/25fps via MJPEG. Full 60fps support ensures smooth motion capture and playback for real-time monitoring and detailed forensic review.

Q: Can I adjust focus remotely without visiting the camera site?

A: Yes. The motorized varifocal lens (2.8–12mm) allows remote focus and zoom adjustment through the VMS or camera web interface. This eliminates return visits for framing adjustments and reduces installation labor significantly.

Q: Is the XND-C6083RV suitable for outdoor use?

A: No. The IP52/IK08 rating is designed for protected indoor environments (vestibules, loading docks, warehouse aisles). For direct rain or submersion, choose an IP67-rated outdoor dome variant from the Hanwha catalog.

Q: What edge storage options does the XND-C6083RV support?

A: microSD, SDHC, and SDXC cards up to 512GB. This enables local recording during network interruptions and provides forensic backup independent of the NVR.

Q: Will the XND-C6083RV work with my Milestone XProtect VMS?

A: Yes. The camera is ONVIF Profile S/G/T compliant and integrates with Milestone, generic ONVIF clients, and Wisenet platforms. No special drivers or licensing typically required.

Q: How much power does the XND-C6083RV consume?

A: Maximum 12.95W via IEEE 802.3af PoE. This low draw allows multiple cameras on a single PoE switch port without exceeding budget; confirm your switch's per-port and aggregate power ratings during design.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-C6083RV bridges the gap between fixed, low-res domes and premium PTZ systems. Its 4.3x motorized varifocal design eliminates the labor and expense of physical lens swaps—a real operational win on retrofit jobs where re-mounting is disruptive. The 150dB WDR and gyro-based digital image stabilization (DIS) make this camera well-suited to mixed-lighting spaces (loading docks, retail transitions) and ceiling mounts prone to vibration. AI object detection is serious: person/face/vehicle/license-plate classification with intelligent false-alarm filtering reduces alert fatigue and keeps security teams focused on genuine threats.

Technical Highlights:

• Motorized Varifocal (2.8–12mm, 4.3x zoom): Remote focus and zoom adjustment save installation rework. No technician return visits for framing tweaks—especially valuable on high-ceiling deployments where access is costly.
• extremeWDR (150dB) with BLC/HLC/SSDR: Handles high-contrast scenes (backlit corridors, loading docks with direct sun and shadow) without sacrificing either highlight or shadow detail. Essential for forensic usability in mixed-lighting retail or warehouse environments.
• WiseIR (40m, 0Lux): 40-meter IR range with 0.001Lux minimum illumination ensures after-hours coverage in unlit areas without external lighting infrastructure. Lower lux rating than competitors in this class—meaningful in dimly lit storage.
• H.265 + WiseStreamII/III: H.265 reduces storage overhead by roughly 50% versus H.264; adaptive smart codec further compresses static backgrounds, lowering bandwidth on congested links. On a 50-camera 24/7 system, this compounds into weeks of additional retention or lower storage CapEx.
• Edge Analytics (AI Object Detection + IVA): Persons, faces, vehicles, license plates identified on-camera with intelligent filtering. Virtual line/area crossing, loitering, direction alerts trigger without NVR processing—reduces server load and enables island operation during network outages.

Deployment Considerations:

• IP52/IK08 Rating (Protected Indoor Only): Sealed against dust and water jets, rated for 5J vandal impact—adequate for retail, offices, warehouses. Not suitable for full submersion or high-impact vandalism environments; skip this if you need IP67 or higher.
• PoE Power Budget: At 12.95W max, the XND-C6083RV is extremely light on power. Confirm your PoE switch has sufficient aggregate capacity (budget 15–20W per camera in real-world conditions) and verify per-port limits before provisioning more than 4–5 units per switch.
• Gyro-Based DIS Critical for Ceiling Mounts: If you're mounting on a suspended ceiling or near HVAC return air, the built-in gyro sensor prevents vibration blur. Without DIS, ceiling mounts often exhibit subtle jitter that degrades forensic search and playback quality—this camera handles it well.

Best Fit: Protected indoor multi-camera deployments—retail analytics, warehouse floor monitoring, office entry vestibules—where mixed lighting, remote focus adjustment, and on-camera analytics reduce operational overhead. The combination of motorized varifocal optics, edge AI, and sub-13W power draw makes the XND-C6083RV cost-effective for sprawling indoor sites. Avoid outdoor or high-abuse environments; those demand higher IP/IK ratings.
