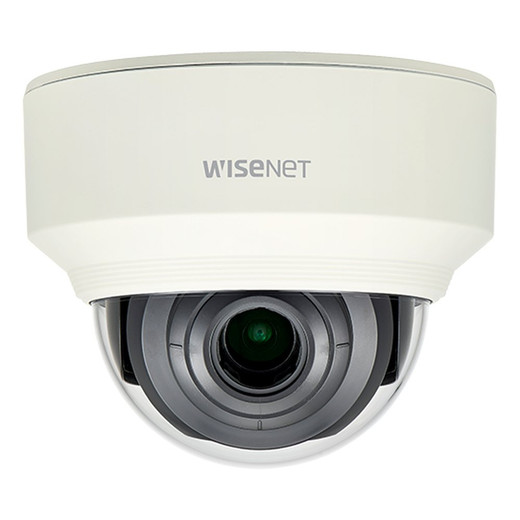

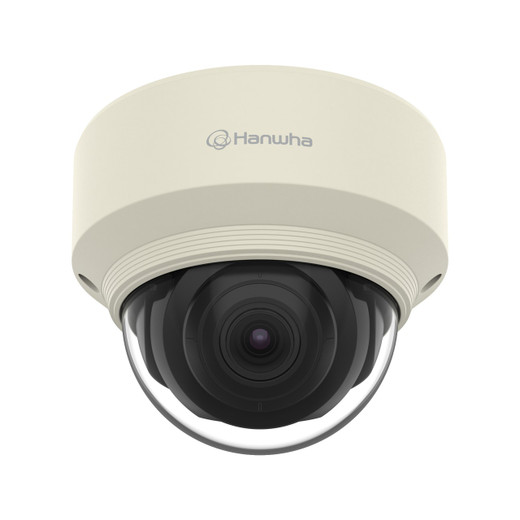

Hanwha XND-L6080V 2MP Vandal Dome IP Camera

Hanwha XND-L6080V 2MP Vandal Dome IP Camera

The Hanwha XND-L6080V is a professional-grade 2MP indoor dome camera engineered for demanding surveillance environments where clarity, durability, and intelligent imaging are critical. Delivering 1080p Full HD video at up to 60fps with advanced Wide Dynamic Range (WDR) technology, this camera captures exceptional detail across variable lighting conditions—from bright office spaces to low-light corridors. The motorized varifocal lens (3.2–10mm, 3.1x zoom) allows operators to fine-tune field of view for precise coverage, while the vandal-resistant dome housing (IK08 rated) withstands tampering and high-traffic environments.

Key Features

• 2MP CMOS sensor with 1920×1080 native resolution
• 60fps video at Full HD using H.265/H.264 codec
• 120dB Wide Dynamic Range (WDR) for challenging lighting
• 3.1x motorized varifocal lens (3.2–10mm)
• Day/night functionality with IR night vision (0.5m minimum focus distance)
• Advanced noise reduction (SSNR V) and defog capability
• Digital image stabilization and electronic shutter (2–1/12,000sec)
• Pan/tilt/rotate: 354°/67°/355°
• IK08 vandal rating for impact resistance
• PoE powered (IEEE 802.3af, Class 3; 4W typical)

Technical Highlights

Imaging & Optics: The 1/2.8" CMOS sensor achieves 0.03Lux color and 0.003Lux B/W sensitivity (F1.6, 1/30sec), enabling robust low-light performance. The DC auto-iris lens with F1.6–F2.9 aperture range adapts to changing light automatically. Multiple resolution outputs (1920×1080 down to 320×240) support flexible streaming and recording strategies.

Video Compression & Efficiency: H.265/H.264 codec at up to 60fps, with H.265 offering superior bandwidth optimization. MJPEG streaming at 30fps provides compatibility with legacy systems. Smart codec features including WiseStream II enable selective region encoding, reducing storage and bandwidth by up to 50% without sacrificing critical areas.

Security & Intelligence: 802.1X authentication, HTTPS/SSL encryption, and IP filtering protect against unauthorized access. Motion detection across 8 polygonal zones triggers recording or alerts. Tamper detection, defocus detection, and privacy masking (32 polygonal zones in multiple colors or mosaic) ensure compliance with privacy requirements. Event-driven FTP/email notifications and SD card recording enable rapid incident response.

Connectivity & Compatibility: Dual Ethernet and USB connectivity support both installation and operational modes. Full ONVIF Profile S/G compliance ensures interoperability with third-party VMS platforms. Supports up to 20 unicast users with multiple streaming profiles. Operational temperature range of −10°C to +55°C suits diverse indoor installations.

Applications

• Office lobbies and entry points
• Retail environments and checkout areas
• Corridors and stairwells requiring wide dynamic range
• High-traffic zones where vandal resistance is essential
• Low-light areas requiring reliable night vision
• Facilities integrating with ONVIF-compliant management systems

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-L6080V combines Hanwha's optical and processing expertise with practical durability for mid-range IP surveillance. The 60fps capability at 1080p distinguishes it from 30fps competitors, delivering smoother motion tracking and forensic replay—valuable in high-activity environments. The 120dB WDR with supporting tools (HLC, SSDR, BLC) handles challenging backlighting without over-processing.

The motorized varifocal design eliminates lens swaps during installation, reducing labor and downtime. Low power consumption (4W typical) and microSD edge storage (up to 256GB) minimize infrastructure costs. The IK08 rating, while robust, sits below IK10; confirm this level meets your specific impact/vandalism exposure.

For organizations standardizing on Wisenet cameras, integration is seamless; for mixed-vendor deployments, ONVIF compliance ensures reliable operation. This model is well-suited to organizations balancing image quality, flexibility, and Total Cost of Ownership in controlled indoor environments.
