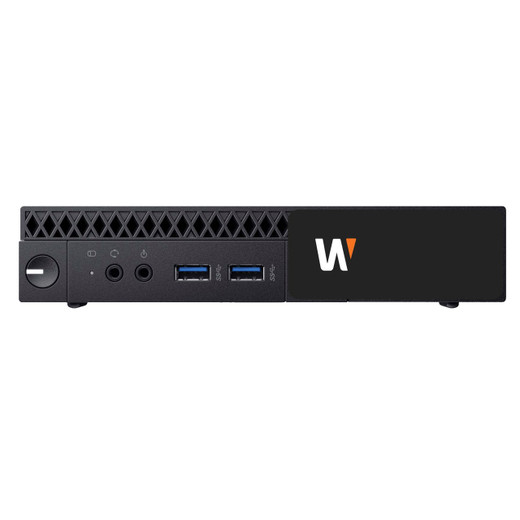

Hanwha WRT-P-3103MW Micro Form Factor WAVE Recording Server

Hanwha WRT-P-3103MW Micro Form Factor WAVE Recording Server

The Hanwha WRT-P-3103MW is a compact, purpose-built network video recording solution designed for organizations requiring flexible deployment in space-constrained environments. This micro form factor server delivers professional-grade video management through Wisenet WAVE software while maintaining an exceptionally small footprint of just 1.4" × 7.0" × 7.2", making it ideal for mounting behind displays, in ceiling cavities, or other discreet locations.

Key Features

• Wisenet WAVE Professional Video Management Software pre-installed with 4 concurrent licenses
• Up to 45 Mbps recording bandwidth for multi-camera deployments
• Intel Core i3 13th Generation processor with 8GB DDR4 RAM for reliable performance
• 256GB M.2 SSD OS drive for fast boot times and system responsiveness
• 2TB SATA storage drive for video archive and retention
• Micro form factor chassis enabling inconspicuous deployment
• Keyboard and mouse included for immediate setup
• Multiple video outputs: HDMI, DisplayPort, VGA, plus DisplayPort-to-HDMI adapter
• Windows 10 IoT Enterprise operating system
• Dual audio input/output ports for two-way communication or monitoring

Technical Specifications

The WRT-P-3103MW operates on universal AC input (100-240V) with minimal power consumption of just 65W, reducing operational costs and thermal load. Networking connectivity is provided via a single 1 GbE RJ45 port, supporting standard enterprise network integration. Rear connectivity includes four USB ports (two 3.2 Gen 1 and two 2.0), while the front panel provides two additional USB 3.2 Gen 1 ports for flexible peripheral support.

The server maintains reliable operation across standard commercial temperature ranges (50°F to 95°F) and humidity levels up to 80% non-condensing, with extended storage temperature capabilities from -40°F to 149°F. International certifications including UL, cUL, CB, and FCC ensure compliance with global safety and electromagnetic standards.

Ideal Applications

• Small to medium-sized business surveillance systems
• Retail locations requiring discreet recording infrastructure
• Office environments where space optimization is critical
• Multi-location deployments benefiting from standardized hardware
• Facilities seeking simplified Wisenet WAVE ecosystem integration

Ted Perry

The WRT-P-3103MW addresses a specific market segment: organizations needing dedicated recording servers in compact form factors without compromising professional video management capabilities. The 13th Gen Intel Core i3 paired with 8GB RAM and SSD-based OS storage provides sufficient processing headroom for the 45 Mbps bandwidth specification, accommodating 4-8 IP cameras depending on resolution and frame rate. The pre-loaded four Wisenet WAVE Professional licenses represent immediate value, eliminating separate licensing acquisition and setup delays.

The 2TB primary storage provides approximately 10-15 days of continuous recording for typical multi-camera deployments, though users can expand via USB external storage if required. The inclusion of keyboard and mouse reduces total cost of ownership and deployment friction. For organizations already invested in Wisenet ecosystems, this server provides a direct, proven integration path with minimal compatibility concerns.
