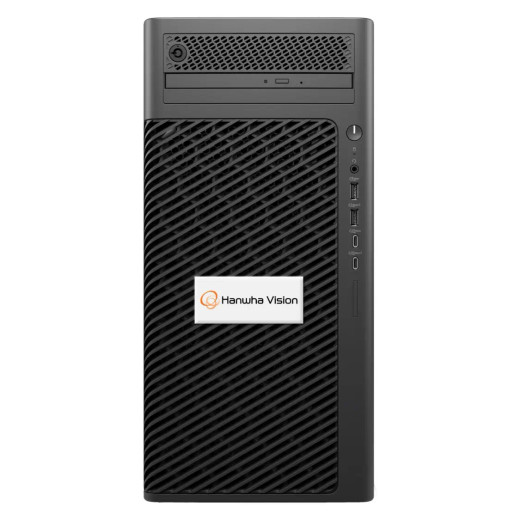

Hanwha WRT-P-5205L-16TB WAVE Recording Server
The Hanwha WRT-P-5205L-16TB is a compact mini-tower network video recorder purpose-built for mid-scale IP surveillance deployments. It ships pre-loaded with Ubuntu 22.04 LTS and Wisenet WAVE VMS, delivering professional-grade video management and storage for security integrators deploying enterprise surveillance infrastructure in controlled indoor environments. This unit bridges entry-level and high-capacity recording without requiring external storage arrays or secondary VMS licensing.
Key Features
- 16TB Raw Storage with Hot-Swap Architecture — Three 3.5-inch front hot-swappable drive bays ship with 16TB capacity and support expansion up to 36TB total. This matters because you can upgrade storage in-place without shutting down the entire system or swapping hardware — critical for 24/7 surveillance operations where downtime costs real money.
- 470 Mbps Recording Bandwidth — Handles simultaneous recording from up to 64 connected IP cameras without bandwidth degradation. For context: a 4K camera at 30 fps consumes roughly 40–80 Mbps depending on codec; this throughput leaves substantial headroom for high-resolution multi-camera deployments and reduces the risk of dropped frames during peak traffic.
- Preloaded Wisenet WAVE VMS with Four Professional Licenses — Ships with Wisenet WAVE video management system and four Professional licenses pre-installed, eliminating separate software procurement and reducing integration overhead. Professional license value typically runs $500+ per license, delivering immediate cost savings and simplified billing for integrator clients.
- Dual Network Connectivity (1 GbE + 5 GbE) — Includes one 1 Gigabit Ethernet and one 5 Gigabit Ethernet RJ45 interface for segregated management and recording traffic. This enables you to isolate high-volume video streams on the 5 GbE port while keeping management commands and alerts on the 1 GbE path, reducing latency and improving overall system stability under load.
- Intel Core Ultra 5 Processor with 16GB RAM — Enterprise-class CPU and memory support stable concurrent multi-stream operations, real-time codec transcoding if required, and responsive VMS interface performance even during active recording and playback.
- PoE Power Support — Compatible with Power-over-Ethernet for connected cameras, simplifying deployment by eliminating separate power runs. This reduces installation labor and cable clutter, particularly valuable in retrofit or campus-scale deployments.
- Audio Integration — Single 3.5mm universal audio input for synchronized audio-video recording, enabling two-way communication workflows or forensic audio capture where required by compliance policies.
- ONVIF Compliance — Supports ONVIF-conformant IP cameras, ensuring flexibility across multi-vendor surveillance ecosystems. You're not locked into Hanwha cameras; this recorder ingests streams from Axis, Hikvision, Dahua, Uniview, and other ONVIF-compliant manufacturers.
Integration and Compatibility
The WRT-P-5205L-16TB operates as a standalone recording appliance or integrates into larger network video recorder environments. Its Ubuntu 22.04 LTS foundation provides long-term OS support (until 2032), reducing the risk of end-of-life security gaps. The preloaded Wisenet WAVE VMS eliminates procurement overhead for organizations standardized on Hanwha IP cameras and surveillance systems, though ONVIF support means you can mix-and-match camera vendors without hesitation.
The dual-NIC architecture is particularly valuable when designing PoE switch layouts and traffic segmentation. Isolating recording streams on the 5 GbE port while keeping management and alerting on the 1 GbE interface prevents bandwidth contention and simplifies network monitoring. Operating temperature range of 50°F to 95°C (10°C to 35°C) constrains deployment to climate-controlled server rooms or equipment closets — outdoor or unventilated spaces will require supplemental cooling or relocation.
For storage retention planning, the WRT-P-5205L-16TB's 470 Mbps throughput and microSD support enable flexible codec selection. H.265 compression (if supported by connected cameras) cuts storage consumption roughly 40–60% compared to H.264, directly extending retention windows or allowing higher bitrate recording without additional drive investment.
When to Choose a Different Model
If your deployment exceeds 64 cameras or requires sub-zero or high-humidity operation, evaluate higher-capacity models in the Hanwha WAVE recording server line. Alternatively, if you need purpose-built edge analytics (on-recorder object detection or people counting), confirm codec and compute support with Hanwha's current product documentation — this unit's strength is reliable baseline recording, not advanced analytics at the NVR edge.
Frequently Asked Questions
Q: What is the typical retention period for the WRT-P-5205L-16TB with 64 cameras?
A: Retention depends heavily on resolution, frame rate, and codec. As a rule of thumb: 16TB at H.264 1080p 30fps yields roughly 30–45 days of continuous recording across 64 cameras; H.265 extends that to 60–90 days. The expandable 36TB maximum pushes high-density deployments into the 6-month range at moderate bitrates. Use your camera bitrate (Mbps) and desired retention window to calculate exact drive allocation.
Q: Can I integrate the WRT-P-5205L-16TB with a third-party VMS like Milestone XProtect or Genetec?
A: Yes, via ONVIF. The WRT-P-5205L-16TB is ONVIF-compliant and can function as a recording appliance within a third-party VMS environment. However, you will not leverage the preloaded Wisenet WAVE licenses in that scenario — they are proprietary to Hanwha's ecosystem. If you are standardizing on a different VMS platform, evaluate whether a third-party NVR or direct camera-to-VMS recording architecture makes more economic sense.
Q: What happens if one of the three drive bays fails?
A: The hot-swap architecture allows you to physically remove a failed 3.5-inch drive and insert a replacement without powering down the unit. Recording continues on the remaining operational bays. Raid configuration, if supported, depends on the installed firmware — verify RAID options with your integrator or manufacturer support before relying on disk-level redundancy.
Q: Is the WRT-P-5205L-16TB suitable for outdoor or uncontrolled-temperature environments?
A: No. The specified operating range of 50°F to 95°F (10°C to 35°C) is typical for server-grade equipment and requires climate-controlled deployment. Outdoor installations, unheated storage rooms, or environments exceeding these bounds will risk thermal shutdown or premature hardware failure. Plan for HVAC or supplemental cooling if siting in marginal spaces.
Q: Does the WRT-P-5205L-16TB include drives, or are the bays empty?
A: The unit ships with 16TB total capacity already installed across the three hot-swap bays. No additional drive purchase is required for immediate deployment, though expansion to 36TB is supported by adding or upgrading individual drives.
Q: What is the warranty coverage?
A: Consult your authorized distributor or Hanwha's warranty terms documentation for specific coverage duration and exclusions. Standard commercial NVR warranties typically run 1–3 years with optional extended coverage available.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hanwha WRT-P-5205L-16TB hits the sweet spot for integrators deploying 30–64 camera systems without the complexity of dedicated server infrastructure. The 470 Mbps recording bandwidth is the real workhorse spec here — it means you can push high-bitrate 4K streams or dozens of 1080p feeds simultaneously without architectural compromises. The dual-NIC design (1 GbE + 5 GbE) is a practical win; most integrators undersell this, but traffic segregation keeps your recording path clean and your management path responsive, which matters in live incident response scenarios.
Technical Highlights:
- Hot-Swap 3.5-inch Drives (16TB standard, 36TB max): Zero-downtime storage expansion is table stakes for 24/7 surveillance. You can swap a failed drive or add capacity without touching the power button — this alone justifies the form factor choice over cheaper NAS-style recorders.
- Preloaded Wisenet WAVE + 4 Professional Licenses: $2,000+ in software value shipped with the hardware. If you're building a Hanwha-centric deployment, this eliminates a major line-item cost and simplifies client billing. ONVIF support means you're not architecturally locked in, but the value prop is strongest in homogeneous Hanwha environments.
- 470 Mbps Throughput with 64-Camera Capacity: Real-world math: four 8MP cameras at H.264 high-quality typically consume 30–50 Mbps each. This unit handles 12–16 such cameras comfortably. At H.265, you're pushing closer to 30+ cameras at equivalent quality. Headroom exists for burstiness and failover recording.
- Ubuntu 22.04 LTS (Support Until 2032): Long OS lifecycle reduces your maintenance debt. Security patches and kernel updates will be available for over a decade — important for compliance audits and risk management in banking, healthcare, and critical infrastructure.
Deployment Considerations:
- Climate Control is Non-Negotiable: 50°F–95°F (10°C–35°C) operating range excludes garages, outdoor cabinets, and unheated warehouses. If your client site lacks stable HVAC, this unit will throttle or fail. Budget for a server room or climate-controlled cabinet upfront.
- Network Switch Provisioning: The 5 GbE port requires a managed PoE+ or PoE++ switch capable of delivering both power and high-speed throughput. Budget for switch upkeep and consider reserved power budget — a 64-camera deployment (assuming 10W per camera) will consume 640W of PoE capacity on top of the recorder itself.
- Drive Lifespan and RAID Strategy: Evidence doesn't confirm RAID support, so assume JBOD (just a bunch of disks) or verify firmware. If RAID is not native, you're trading availability for simplicity — acceptable for many SMB deployments but risky for tier-1 retail or banking. Plan refresh cycles and spares inventory accordingly.
Position the WRT-P-5205L-16TB for mid-market integrations where you control the camera ecosystem, have reliable power/cooling, and want to ship preloaded software and licenses. For heterogeneous multi-brand camera sites or austere deployment environments (no climate control, minimal network infrastructure), evaluate whether a lighter-footprint edge recording appliance or cloud-hybrid architecture better fits the constraints.
