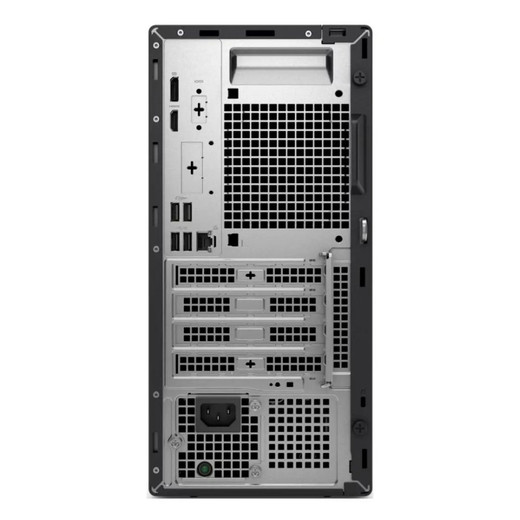

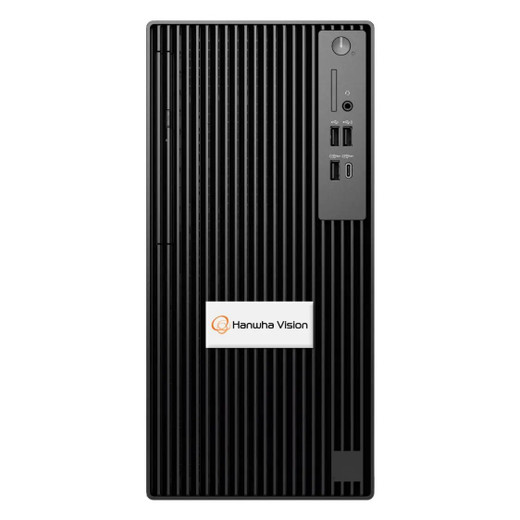

Hanwha WRT-P-3104W1 WAVE Recording Server 16TB

Hanwha WRT-P-3104W1-16TB WAVE Recording Server

Overview

The WRT-P-3104W1-16TB is a compact mini-tower network video recorder purpose-built for integrators deploying mid-market surveillance infrastructure. It ships with Wisenet WAVE VMS preloaded and four Professional licenses included — eliminating software installation and licensing overhead on day one. The unit handles up to 170 Mbps of sustained recording throughput across mixed-resolution camera streams, with 16TB raw storage capacity via three 3.5-inch hot-swappable SATA bays plus a 256GB internal M.2 SSD for the OS. This configuration targets deployments where you need to record dozens of cameras (up to 64 channels supported) without sacrificing frame rate or resolution fidelity.

Compatibility

The WRT-P-3104W1-16TB integrates with any ONVIF-conformant IP camera and works natively with Hanwha Wisenet cameras. It supports PoE-powered devices via its dual 1GbE network ports (one on-board, one PCIe NIC), simplifying camera power and data runs. Wisenet WAVE VMS manages up to 64 camera channels in mixed deployments — licensing scales with the four included Professional seats. The system runs Windows 10 IoT Enterprise LTSC or Ubuntu Linux 22.04 LTS, ensuring compatibility with existing enterprise VMS integrations and third-party event management systems via ONVIF Profile S/T/G support.

Installation Notes

The unit operates between 50°F and 95°F (10°C to 35°C) with non-condensing humidity limits of 20–85%. It draws up to 500W maximum via 100–240V AC input (80 Plus Platinum rated), so verify sufficient wall-outlet or UPS capacity before deployment. The compact form factor (14.68" H × 6.81" W × 16.54" D) fits standard equipment racks or shelf mounting; confirm rack depth clearance to avoid thermal throttling. Two DisplayPort outputs (with DP-to-HDMI adapter) support dual-monitor operator stations. Audio input (3.5mm universal jack) enables microphone or line-level recording. USB 3.2 Gen 2 ports on front and rear support external backup drives or evidence export.

What's in the Box

• 1x WRT-P-3104W1 mini-tower recorder chassis (without data HDDs installed)
• 1x 500W 80 Plus Platinum power supply
• 1x DisplayPort to HDMI adapter
• 1x Wisenet WAVE Keyboard & Mouse
• Wisenet WAVE VMS software (preloaded)
• 4x Wisenet WAVE Professional licenses
