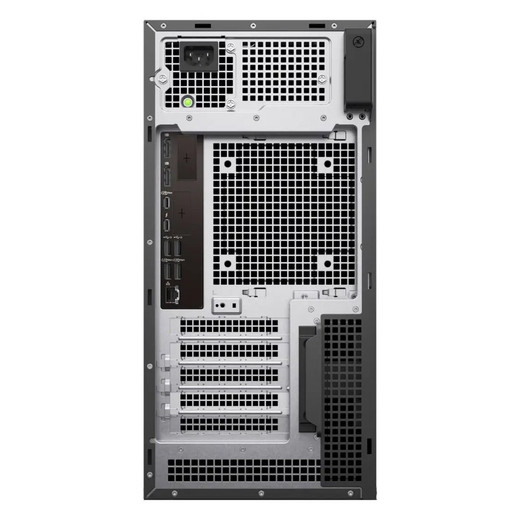

Hanwha WRT-P-5205W-36TB WAVE Recording Server

Hanwha WRT-P-5205W-36TB WAVE Recording Server

The Hanwha WRT-P-5205W-36TB is an enterprise-grade network video recording server engineered for mid-to-large scale IP surveillance deployments. Supplied as a fully configured mini-tower system with Wisenet WAVE VMS preloaded, this server delivers 470 Mbps recording throughput and supports simultaneous ingest from up to 64 IP cameras. With 36TB raw storage capacity, it enables extended retention periods for compliance requirements and forensic investigations in corporate security operations centers and dedicated server facilities.

Key Features

• 36TB raw storage across three 3.5" hot-swappable drive bays with internal 512GB M.2 SSD for OS and application performance
• 470 Mbps recording bandwidth supporting up to 64 simultaneous IP camera channels with headroom for bitrate variations
• Four Wisenet WAVE Professional licenses included—eliminates additional licensing costs for multi-user administrative and operator functionality
• Intel Core Ultra 5 processor with 16GB RAM and Windows 11 IoT Enterprise LTSC 2024 for stable, long-term supported operation with minimal patch cycles
• Dual network interfaces: 1x 1GbE and 1x 5GbE RJ45 ports for traffic segmentation, redundancy, and dedicated camera/management LAN isolation
• PoE power support for simplified camera integration and reduced cabling complexity
• 1x 3.5mm universal audio input for synchronized audio recording
• ONVIF-conformant camera compatibility for vendor flexibility and interoperability
• Operating temperature range: 50°F to 95°F (10°C to 35°C) for controlled server room deployment
• microSD card slot for portable data export and backup capabilities

Technical Specifications

Built on the Intel Core Ultra 5 platform with 16GB RAM, the WRT-P-5205W-36TB combines processing power with thermal efficiency required for 24/7 surveillance operations. The Windows 11 IoT Enterprise LTSC 2024 operating system ensures extended support cycles and predictable security updates—critical for unmanned server room installations. Three hot-swappable 3.5" drive bays provide flexibility for storage expansion or failed drive replacement without service interruption, while the dedicated 512GB M.2 SSD boot drive ensures rapid system startup and application responsiveness independent of recording workload.

Network architecture separates bandwidth-intensive camera traffic (5GbE) from management and client connections (1GbE), preventing congestion and enabling redundant paths. PoE support streamlines IP camera deployment by combining power and data over a single cable run.

Applications

• Corporate headquarters, retail environments, and large-scale facility monitoring requiring extended footage retention
• Multi-building campuses and distributed security operations with centralized recording and management
• Compliance-driven sectors (finance, healthcare, logistics) needing reliable audit trails and forensic-ready archives
• Environments transitioning from analog or hybrid systems to full IP-based architectures

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WRT-P-5205W-36TB represents a mature enterprise recording solution optimized for organizations requiring substantial camera counts and extended retention without custom software development. The inclusion of four Professional licenses eliminates unexpected licensing expenses when deploying multi-operator environments. The dual-network design and hot-swappable storage reflect production-environment best practices, reducing downtime risk in 24/7 surveillance deployments.

Windows 11 IoT Enterprise LTSC 2024 is particularly valuable for organizations seeking minimal OS patch cycles—critical for stability in security-critical applications. The 470 Mbps throughput ceiling and 64-channel cap suit mid-to-large installations; organizations significantly exceeding these parameters should evaluate higher-tier Wisenet platforms. PoE compatibility and ONVIF conformance ensure broad camera vendor integration, reducing lock-in risk.
