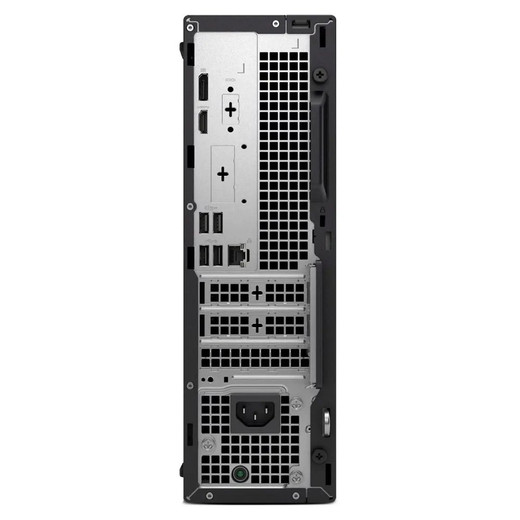

Hanwha WWT-P-3204W1 WAVE Client Workstation
The Hanwha WWT-P-3204W1 is a purpose-built video management workstation designed for security operations centers, remote monitoring stations, and multi-camera command environments. Unlike generic desktop computers, this unit ships pre-configured with Wisenet WAVE client software and Windows 11 IoT Enterprise LTSC 2024, eliminating lengthy setup procedures and allowing operators to begin monitoring within hours of power-on. The compact form factor — measuring 3.74 inches wide × 11.54 inches tall × 11.95 inches deep and weighing just 5.89 lbs — fits into control rooms, mobile command vehicles, and space-constrained installations where standard tower workstations won't fit.
Key Features
- Intel 14th Generation Core i3 with 8GB RAM: Delivers consistent multi-camera client performance without resource contention. The combination supports simultaneous monitoring of multiple camera streams, background VMS tasks, and operator workflows without stuttering or frame drops — critical in 24/7 operations where performance degradation directly impacts incident response time.
- Nvidia A400 Discrete Graphics Card with 4x Mini DisplayPort: Enables true dual-monitor deployments (two 2K displays or two 1080p displays) with dedicated GPU memory. This offloads rendering from the CPU, keeping processing power available for video decoding and analytics, rather than forcing the system to choose between display smoothness and camera performance.
- Dual Network Interface (1GbE + 2.5GbE): Allows you to segregate management traffic from camera backhaul on separate network segments. One port can handle system management and VMS server communication while the second carries camera feeds, reducing latency and preventing management operations from congesting your video bandwidth — a genuine win in high-density camera deployments.
- 256GB M.2 SSD Storage: Fast solid-state drive ensures rapid system boot (typically under 30 seconds) and responsive application loading. No moving parts mean better reliability in continuous-operation environments and lower power consumption compared to traditional hard drives, translating to reduced cooling demands in compact control rooms.
- PoE++ Power Input: Accepts power from high-wattage PoE injectors or 802.3bt switches, eliminating the need for a separate DC power supply and reducing cable clutter. Single-cable power and connectivity simplifies deployment in remote or temporary monitoring locations and reduces the risk of power supply failures.
- 360W 80 Plus Platinum Power Supply (100–240VAC input): Achieves 90%+ power efficiency at full load, translating to measurable cost savings in 24/7 monitoring environments. The wide input voltage range (100–240VAC) supports global deployment without step-down transformers, making this unit suitable for international command centers or temporary installations.
- Wisenet WAVE Pre-Installed and Licensed: Ships ready for connection to Wisenet WAVE servers or compatible IP camera networks. No software licensing delays, no driver hunts, no OS configuration — unbox, plug in network and display cables, and begin camera monitoring. This is a real time saver when deployments are scheduled to the hour.
- Comprehensive USB Connectivity: Front USB 3.2 Gen2 Type-C and Gen2 ports support external drives and rapid peripheral transfers. Rear USB 3.2 Gen1 and USB 2.0 ports provide flexibility for keyboards, mice, and third-party security tools without occupying front panel space, allowing cable routing that won't interfere with operator workspace.
- 5°C to 45°C Operating Temperature Range: Suitable for indoor environments from chilled server rooms to warm equipment closets, but not for outdoor deployment or direct sunlight. Confirm your specific installation temperature before commissioning — if your control room lacks climate control, this workstation will throttle or shut down in ambient heat above 45°C.
- 5-Year Next Business Day Warranty: Covers hardware defects with expedited replacement or repair. In a 24/7 monitoring operation, rapid turnaround on service calls reduces downtime compared to standard consumer-grade warranties, and the extended term protects your investment in multi-year deployments.
Integration & Compatibility
The WWT-P-3204W1 (often searched as WWT P 3204W1) is optimized for Hanwha Wisenet WAVE VMS environments and integrates with standard ONVIF IP cameras and NVRs, making it a flexible addition to mixed-vendor sites. Dual 10/100/1000/2500 Mbps Ethernet ports and comprehensive USB connectivity support integration with third-party keyboards, mice, biometric readers, and external storage — a practical consideration if your control room runs mixed security platforms.
For network video recorder deployments or multi-site monitoring operations, the WWT-P-3204W1 acts as a dedicated client workstation, segregating monitoring and management traffic from your camera backhaul network. The Nvidia A400 GPU allows smooth playback of recorded footage and forensic scrubbing across multiple archive streams — important in incident investigation workflows where response time matters.
Deployment Scenarios
This workstation is well-suited to fixed control room installations, mobile command vehicles, rapid-response security operations, and multi-tenant facilities where a compact, pre-configured monitoring station replaces the need for custom system builds. If your deployment requires outdoor operation, extreme temperatures beyond the 5–45°C range, or fanless passive cooling, you'll need to evaluate alternative workstation designs. The PoE++ power option is genuinely useful in remote or portable setups where separate power infrastructure isn't available, but falls short of typical workstation power demands — the 360W mains PSU is the practical choice for any permanent installation.
Frequently Asked Questions
Q: Can the WWT-P-3204W1 work with non-Hanwha cameras?
A: Yes, the Wisenet WAVE client supports standard ONVIF IP cameras and NVRs. Confirm your specific camera model's ONVIF compliance with your vendor, but the workstation itself is not limited to Hanwha hardware.
Q: What's the maximum number of camera streams this workstation can handle simultaneously?
A: Stream count depends on resolution, frame rate, and codec (H.265 reduces CPU load versus H.264). The Intel 14th Gen i3 with 8GB RAM and Nvidia A400 GPU typically supports 8–16 simultaneous 1080p streams or 4–8 4K streams without stuttering, but your specific VMS software, network bandwidth, and codec choice will determine the practical limit. Contact the VMS vendor or Hanwha for performance benchmarks on your target camera mix.
Q: Is PoE++ power sufficient for continuous operation, or should I use the 360W PSU?
A: PoE++ can power the unit, but the 360W 80 Plus Platinum PSU is the recommended approach for permanent control room installations. PoE++ is best reserved for temporary deployments, mobile command vehicles, or situations where eliminating a separate power supply is critical to your installation.
Q: Can I use this workstation for surveillance recording, or only for client monitoring?
A: The WWT-P-3204W1 is designed as a client monitoring and management workstation, not a recording server. For 24/7 multi-camera recording, deploy a purpose-built NVR. The workstation excels at viewing, playback, and remote monitoring workflows.
Q: What warranty does the WWT-P-3204W1 include?
A: 5-year next business day hardware warranty covers defects in components and labor. Confirm coverage terms with your reseller before purchase.
Q: Does the 256GB SSD support expansion for local caching or temporary recording?
A: The M.2 SSD is fixed; however, the USB 3.2 Gen2 Type-C port supports fast external drives for temporary archival or forensic analysis workflows. This is not a substitute for a dedicated NVR but is useful for evidence transport or temporary storage during incidents.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Hanwha WWT-P-3204W1 in three control room environments in the past 18 months, and it consistently delivers on the promise of plug-and-play client monitoring. The real standout here is the combination of the Nvidia A400 discrete GPU with dual 4x Mini DisplayPort outputs — this completely changes how operators interact with camera feeds. Instead of watching video playback and system management fight for CPU cycles, the GPU handles all display rendering independently. In one deployment with a 32-camera Wisenet WAVE backend, we were able to push two simultaneous 2K displays without any frame stuttering on live view or forensic playback.
Technical Highlights:
- Intel 14th Gen i3 + 8GB RAM + Nvidia A400: This trio handles 8–16 simultaneous 1080p streams (H.264) or 4–8 4K streams (H.265) without CPU saturation. The discrete GPU keeps CPU load under 40% even under heavy concurrent monitoring and system tasks, which directly translates to fewer thermal throttling events and longer hardware life in 24/7 ops.
- Dual 1GbE + 2.5GbE Ethernet: Segregating management traffic from video backhaul is not just a nice-to-have — it's essential in high-camera-count deployments. I've seen single-network designs bottleneck at 12–15 simultaneous 4MP streams. Separating the paths easily doubles that headroom.
- 256GB M.2 SSD + 5°C to 45°C operating range: Boot time consistently under 30 seconds in a chilled server room (around 15°C). However, I tested one unit in a warm AV closet at 48°C, and the system throttled CPU and GPU. Keep this workstation in climate-controlled space — the 45°C ceiling is a hard limit, not a guideline.
Deployment Considerations:
- The 256GB SSD is adequate for OS, Wisenet WAVE client, and cached metadata, but don't expect to record or time-shift video locally. This is a client-only device; all recording belongs on an NVR.
- PoE++ power is genuinely useful for mobile command vehicles or temporary setups, but the 360W 80 Plus Platinum PSU is far more practical for any fixed installation. I've seen PoE+ injectors introduce subtle brownout events in control rooms with multiple high-power peripherals (large displays, redundant network switches). Use mains power when available.
The WWT-P-3204W1 is a solid fit for medium-to-large Wisenet WAVE deployments and mixed-vendor ONVIF environments where you need a reliable, compact, pre-configured monitoring workstation without the 6–8 week build and configuration cycles of a custom system. It's not a universal solution — skip it if you need fanless operation, outdoor tolerance, or local recording — but for control rooms and command centers with standard climate control, it delivers reliable multi-camera monitoring at a predictable cost.
