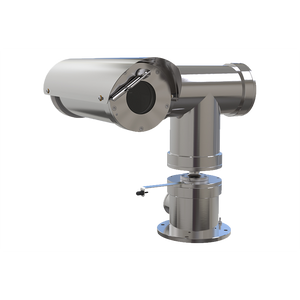

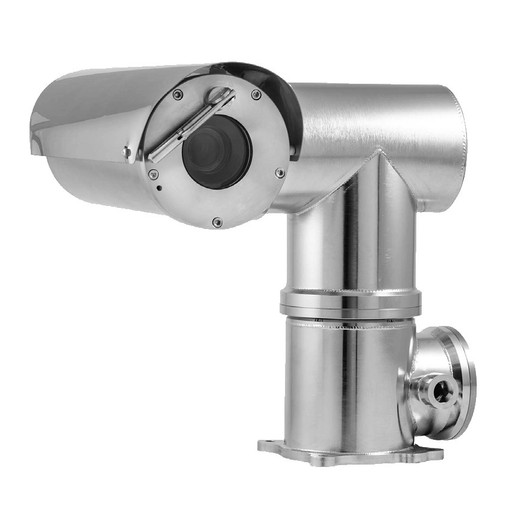

Hanwha TNU-X6320A2F2WT2-C Explosion Proof PTZ Camera

Hanwha TNU-X6320A2F2WT2-C Explosion Proof PTZ Camera

The TNU-X6320A2F2WT2-C is a robust, explosion-protected PTZ camera station engineered for hazardous onshore, offshore, marine, and heavy industrial environments. Built with electro-polished 316L stainless steel and certified to multiple international explosion-proof standards, this camera delivers reliable surveillance where safety and durability are paramount.

Key Features

• 2.4MP CMOS sensor with 1920x1080 resolution at 60fps
• 32x optical zoom with 16x digital zoom (4.44–142.6mm lens, F1.6–F4.4)
• 360° endless pan, 180° tilt with 45°/sec and 24°/sec speeds
• Triple codec support: H.265, H.264, MJPEG with WiseStream II compression
• Intelligent video analytics, motion detection, and gyro-stabilized DIS
• Day/night (ICR), 150dB WDR, HLC, auto focus, auto iris, and defog
• IP66 rated with integrated silicone wiper blades
• Dual M25 cable entries in base for easy termination
• Optional built-in single-mode fiber (duplex 9/125μm)
• Toughened glass camera station window with stainless steel 316L sun shield

Technical Specifications

• Low-Light Performance: Color 0.05Lux, B/W 0.005Lux
• Temperature Range: T1 -40°C to +60°C; T2 -60°C to +60°C
• Power: 24VAC or 110VAC, up to 80W maximum
• Protocols: ONVIF Profile S, TCP/IP, UDP/IP, RTSP, HTTPS, DHCP, SMTP, SNMP, DNS, DDNS, QoS, and more
• Weight: Up to 33kg (73lbs)

Explosion-Proof Certifications

Certified to INMETRO Ex d IIC T4/T5 Gb, CSA cLCus C1/D1 (Class I, Division 1, Groups B,C,D; Class II, Division 1, Groups E,F,G), and cLC CSA standards ensuring compliance in explosive atmospheres containing gases, vapors, dusts, and fibers.

Applications

• Oil and gas drilling, production, and refinery facilities
• Petrochemical plants and chemical processing
• Offshore platforms and marine installations
• Mining and heavy industrial operations
• Pharmaceutical and grain storage facilities
• Any Zone 1/Division 1 hazardous location requiring PTZ surveillance

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320A2F2WT2-C stands out as a premium explosion-proof PTZ solution. The 32x optical zoom with gyro DIS and 150dB WDR provides exceptional situational awareness across large hazardous sites, while the triple codec support and WiseStream II compression optimize bandwidth in bandwidth-constrained offshore and remote deployments. The optional fiber module addresses EMI/RFI isolation concerns critical in high-energy industrial environments.

All-stainless construction and certified wiper blades ensure multi-decade lifespan even in corrosive marine atmospheres. The ONVIF compliance simplifies integration with existing management platforms, while dual cable entries and flexible voltage options (24/110VAC) reduce installation complexity in existing conduit infrastructure. Temperature-rated variants (-60°C to +60°C) extend operational capability to arctic and extreme-heat applications.

For operators managing ATEX, INMETRO, or CSA-regulated sites, this camera delivers proven reliability with minimal lifecycle cost.
