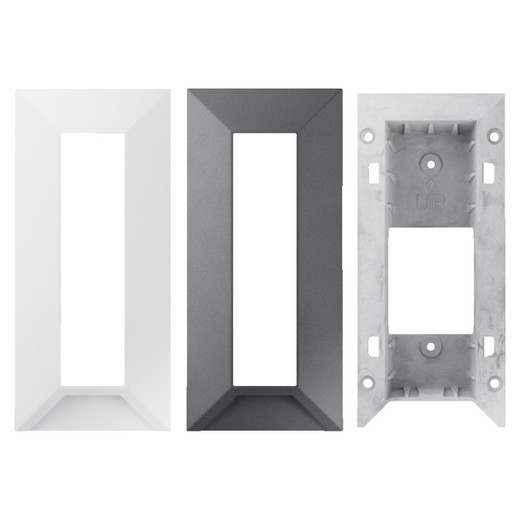

Hanwha SHS-165F Flush Mount Bracket

Overview

The Hanwha SHS-165F is a flush mount bracket built for recessed installation of the Hanwha TID-600R video intercom into a wall or column, giving the unit a clean in-wall profile instead of a surface-mounted box protruding from the finish. This fits entry-control deployments — apartment lobbies, office building perimeters, gated facilities — where the intercom needs to sit flush with siding, brick, or drywall for a finished appearance and reduced tamper exposure.

Compatibility

The SHS-165F is purpose-built for the Hanwha TID-600R intercom and is not a universal bracket — confirm the TID-600R model number on your unit before ordering, since Hanwha's flush and surface mounts are not interchangeable across its intercom lines.

Installation Notes

Constructed from poly carbonate and aluminum in white, the SHS-165F is rated for outdoor use across an operating range of -30°C to +55°C (-22°F to +131°F) at 0-100% RH, so it holds up on an exterior wall through both freeze and high-humidity conditions without a separate enclosure. At 98.2mm(W) x 52.7mm(D) x 214.3mm(H) (3.87 x 2.07 x 8.44in) and 185g (0.41lb), it recesses into a standard back-box cavity sized for the TID-600R's footprint — verify rough-in dimensions against your wall cavity before cutting. Backed by a 3-year warranty matching Hanwha's standard accessory coverage.
