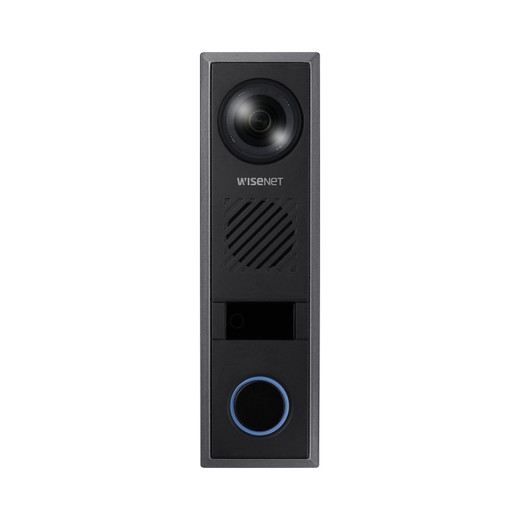

Hanwha TID-600R 1080P Video Intercom

Hanwha TID-600R 1080P Video Intercom

The Hanwha TID-600R is a wired video intercom engineered for access control and two-way communication in enterprise, institutional, and industrial environments. This device combines 1080P clarity with integrated analytics, flexible VoIP integration, and robust environmental protection—designed to serve as both visitor verification and emergency communication point at single and multiple-site deployments.

Overview

The TID-600R (often searched as TID 600R) delivers 2MP resolution over PoE, eliminating the need for separate power infrastructure at entry points. Its 180° horizontal field of view captures the full width of most doorways and lobbies in a single lens, reducing the need for secondary cameras and lowering total cost of ownership. Built-in IR illumination extends operation to 0 lux (lights off), while 0.018 lux color sensitivity preserves identifiable detail in dim ambient light—practical for underground parking entries and unlit corridors where visitor recognition matters.

This intercom integrates SIP 2.0 VoIP natively, meaning it connects directly to PBX systems from Cisco, Grandstream, Yealink, and Asterisk without intermediary gateways. Two-way audio with 85dB speaker output and built-in microphone enables clear communication across entry areas of 200+ square feet—no separate speaker or microphone hardware needed. Echo cancellation prevents feedback during simultaneous talk scenarios common in busy lobbies.

Key Features & Deployment Benefits

• 180° Horizontal / 114° Vertical FOV: Single-lens coverage eliminates blind spots at typical entry widths (doorways, gates, reception areas), reducing camera count and installation labor versus traditional narrow-lens setups.
• H.264/H.265 Codec Support with Bitrate Control: H.265 cuts bandwidth consumption roughly in half compared to H.264 on equivalent quality—meaningful when recording 24/7 across multiple sites or streaming through limited WAN links. CBR/VBR modes adapt to network variance without operator intervention.
• 5m IR Range, 0 Lux IR Mode, 0.018 Lux Color: Night vision reaches 16 feet—sufficient for entry porches, parking lot approaches, and loading dock perimeters. Color capability at 0.018 lux preserves clothing, vehicle, and facial features in near-darkness without requiring color floodlights.
• Power over Ethernet (PoE, 802.3af): Draws under 13W, so no dedicated 12VDC supply or power conduit required. Standard PoE switches handle dozens of these intercoms without upgrade, reducing electrical and cabling costs on retrofit projects.
• IP65 / IK08 Ratings: IP65 (dust-sealed, direct rain-resistant) and IK08 (impact-resistant to 5 joules) allow outdoor mounting and high-traffic indoor areas (crowded lobbies, loading zones) without protective housings. Not rated for submersion or salt spray—skip this if coastal or submerged applications apply.
• WDR (150dB) + Defog + Image Stabilization: Wide Dynamic Range handles backlit scenarios (glass-front lobbies with parking lot views, windows behind visitors) without washing out faces. Defog and stabilization reduce blur in humid or vibration-prone locations (industrial doors, dock areas).
• 8-Zone Motion Detection, Audio Detection, Shock/Tamper Alerts: Motion triggers recording or alerting without constant manual monitoring. Audio detection (glass breaking, shouting) escalates response. Shock/tamper sensors prevent blind spots from physical covering or disconnection.
• 2 Alarm Inputs / 1 Relay Output (12VDC, 550mA): Integrate door strike controls, fail-safe locks, or external gate openers. Trigger on motion, audio, or manual SIP command—no separate relay board required for basic access control workflows.
• Integrated Microsd Storage (up to 256GB): Local event recording ensures forensic footage survives network outages or server failures. No dependency on central NVR for basic compliance recording at unmanned entry points.
• 32-Zone Privacy Masking (Color/Mosaic): Obscure background areas, adjacent offices, or rest rooms—critical for HIPAA (healthcare) or privacy-sensitive lobbies without removing visitor identification from the frame.
• HTTPS/SSL, IP Filtering, 802.1X EAP-TLS, Device Certificates: Enterprise-grade cybersecurity: encrypted streams, certificate-based device authentication, and network-level access control prevent man-in-the-middle attacks and unauthorized firmware updates. Meets compliance requirements for healthcare, finance, and government deployments.

Integration & Compatibility

SIP 2.0 integration enables direct pairing with existing telephony infrastructure—calls route through the PBX rather than proprietary platforms. ONVIF Profile S compliance supports standard VMS platforms (Milestone, Genetec, i-Vms) for centralized monitoring and event correlation. SUNAPI HTTP API allows custom integrations via scripts or workflow automation systems. 10 concurrent streaming profiles with WiseStream II codec technology optimize bandwidth across simultaneous mobile viewers and cloud archival without reducing quality for forensic retention.

Frequently Asked Questions

Q: Can the TID-600R integrate with my existing Cisco or Yealink phone system?

A: Yes. The TID-600R supports SIP 2.0 and has been tested with Cisco, Yealink, Grandstream, and Asterisk systems. It registers as a standard SIP endpoint; consult your PBX documentation for SIP URI and registration details.

Q: What's the maximum IR range, and will it work in total darkness?

A: IR illumination reaches 5 meters (16 feet). At 0 lux (complete darkness), IR mode enables full night vision. At 0.018 lux (very dim ambient light), the camera captures color detail without IR assist.

Q: Does the TID-600R support edge storage for local recording?

A: Yes. MicroSD/SDHC/SDXC cards up to 256GB can be installed for continuous or event-triggered local recording. This preserves video if the network or central recorder goes offline.

Q: Is the TID-600R weatherproof for outdoor mounting?

A: IP65 rating means it resists dust and direct rain, so mounting under an eave or overhang is safe. It is not submersible (IP67) and not suitable for fully exposed positions in heavy rain or salt-spray environments.

Q: Can I mask areas of the video to protect privacy?

A: Yes. 32 polygonal privacy zones support color or mosaic masking, allowing you to obscure sensitive areas (adjacent offices, rest rooms) while retaining visitor identification in the entry frame.

Q: What power supply does the TID-600R require?

A: It draws under 13W via standard 802.3af PoE. No separate power supply or DC converter is needed; a standard PoE-enabled network switch provides power and connectivity via a single Ethernet cable.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TID-600R fills a critical gap in distributed access control by consolidating video verification, two-way communication, and SIP telephony into a single PoE device. The 180° horizontal field of view eliminates the need for multiple narrow-lens cameras at entry points, and the 5-meter IR range provides visitor identification in near-complete darkness—essential for secure entry verification without installing separate floodlights. ONVIF Profile S compliance and SUNAPI HTTP API support streamline integration into heterogeneous security ecosystems without vendor lock-in.

Technical Highlights:

• H.265 Codec + WiseStream II: H.265 reduces storage demand 40–60% versus H.264 at equivalent quality. On 24/7 recording across distributed sites, this cuts NVR storage requirements and WAN bandwidth by half—a tangible cost factor over multi-year deployments.
• 150dB WDR + Defog: Handles backlit lobbies (glass entry walls with outdoor views) and humid loading docks without image washout. Defog technology maintains facial clarity in steamy or fogged conditions—important in healthcare and cold-climate entries.
• PoE 802.3af (under 13W): Eliminates the need for dedicated 12VDC runs or UPS backup at entry points. Standard PoE switches power dozens of intercoms; retrofit installations avoid expensive electrical infrastructure upgrades.
• 32-Zone Privacy Masking: Operators can obscure background areas, patient rooms, or adjacent offices while preserving visitor faces in the frame—critical for HIPAA and privacy-sensitive sectors without blind spots in the entry zone itself.

Deployment Considerations:

• SIP integration requires active PBX or cloud-hosted VoIP system; standalone or proprietary intercom platforms may not support direct SIP endpoints—verify your phone system's SIP compatibility before ordering.
• IP65 rating handles rain and dust but not sustained submersion or salt-spray corrosion; avoid coastal installations or submerged outdoor boxes without additional gasket/enclosure protection.
• Edge storage (microSD up to 256GB) provides local failover recording but does not replace centralized retention—use it as a forensic holdover during network outages, not as primary archive.

Position the TID-600R for corporate office lobbies, healthcare facility patient communication, industrial loading-dock access control, and multi-tenant residential entry systems where unified video + voice + access integration reduces hardware count and simplifies PBX administration. The 180° FOV and native SIP support make it a strong alternative to narrow-lens intercoms that demand secondary cameras or gateway middleware.
