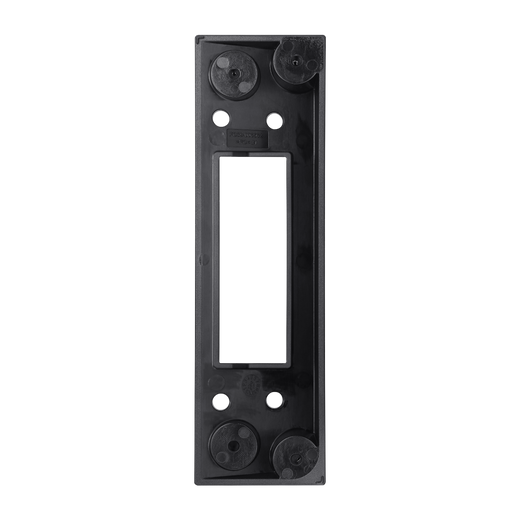

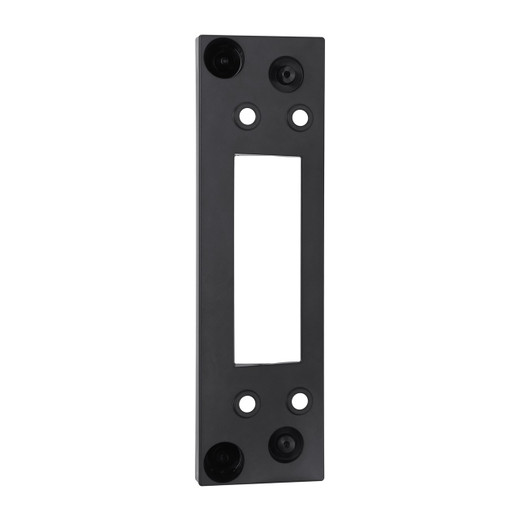

Hanwha SBS-165TM Tilt Mount for TID-600R
Overview
The SBS-165TM is a purpose-built tilt mount accessory for the Hanwha TID-600R video intercom. This mount solves a real installation problem: fixing a video intercom at a single rigid angle often leaves blind spots or forces awkward sightlines for users. The adjustable tilt functionality lets you dial in the exact viewing angle needed for your entry point — whether that's a doorway, reception desk, or loading dock. It's a straightforward mechanical solution, nothing fancy, but the engineering matters for long-term reliability.
Key Features
- Adjustable tilt mechanism: Positions the TID-600R at the angle that works for your space, eliminating the need for custom brackets or workarounds that often fail under vibration or temperature cycling.
- Polycarbonate construction: This material resists impact better than ABS and won't yellow or degrade as quickly in UV-heavy outdoor areas. It's not as rigid as aluminum, but for a 35-gram mount supporting a ~1-kg intercom unit, the trade-off is acceptable.
- Compact footprint: Dimensions of 47.7(W) × 29.8(D) × 163.6(H) mm keep the overall profile clean—important when mounted in visible areas like office lobbies or residential entry points where aesthetics matter alongside function.
- Minimal weight: At 35 grams, this mount won't stress your wall substrate or require over-engineered fastening. Standard anchors suitable for drywall, concrete, or steel will hold it securely.
- Wide temperature tolerance: Operating range of -30°C to +55°C (-22°F to +131°F) covers most North American climates and heated/cooled indoor spaces. If you're deploying in Arctic or equatorial regions, this range is still workable for sheltered entry points; unheated outdoor stairwells may push the limits.
- Humidity agnostic: Full 0–100% RH rating means condensation, steam rooms, and damp loading docks won't degrade the mount itself. Pair this with the TID-600R's own environmental rating to confirm the complete assembly meets your site requirements.
- Black finish: Neutral appearance blends with most architectural styles—residential, commercial, or industrial settings.
Compatibility & Integration
This mount is designed exclusively for the TID-600R intercom. Do not attempt to force-fit it to other Hanwha intercom models or third-party units; the mechanical interface is proprietary. If you're rolling out multiple TID-600R units across a facility, standardizing on the SBS-165TM for all adjustable-angle installations simplifies parts inventory and installation training.
When to Choose a Different Approach
If your TID-600R installation is fixed-angle (e.g., straight-on wall mount with no viewing adjustment needed), this mount is unnecessary. If you need a wall-recessed or flush-mount installation, you may need a different bracket—consult the intercom mounts and accessories category or the TID-600R documentation for alternatives. For outdoor installations in salt-spray, corrosive-gas, or high-vibration environments (heavy machinery areas), consider whether polycarbonate's lower rigidity versus aluminum or stainless steel fasteners is a constraint; the mount itself is rated for the temperature and humidity, but mechanical fatigue under extreme shock loads may require reinforced alternatives.
Installation Context
The SBS-165TM is a component—not a complete installation kit. You'll supply your own wall anchors (toggle bolts for drywall, lag bolts for wood, concrete anchors for masonry) and fasteners appropriate to your substrate. Mounting height and angle depend on your site survey; the installation planning guides for entry control systems can help you determine optimal placement for video coverage and user ergonomics.
Frequently Asked Questions
Q: Is the SBS-165TM compatible with other Hanwha intercoms?
A: No. This mount is designed specifically for the TID-600R. Do not use it with other intercom models unless Hanwha explicitly confirms compatibility.
Q: What fasteners do I need to mount the SBS-165TM?
A: Fasteners are not included. Choose anchors and bolts based on your wall material: toggle bolts for drywall, lag bolts for wood studs, or concrete anchors for masonry. Standard M6 or M8 hardware is typical for this class of mount.
Q: Can the SBS-165TM be used outdoors?
A: The mount's operating range (-30°C to +55°C) and humidity rating (0–100% RH) support outdoor use in most climates. However, verify that the TID-600R itself is rated for your outdoor environment (splash, rain, or salt exposure). The mount material does not provide corrosion protection if exposed to chemical spray or salt air.
Q: What angle range does the tilt adjustment offer?
A: The evidence provided does not specify the tilt angle range. Consult the SBS-165TM datasheet or contact the manufacturer for the exact tilt degrees.
Q: Does this mount require any tools to adjust?
A: The evidence does not specify whether the tilt is tool-free or tool-assisted. Refer to the installation instructions included with the mount or the datasheet for adjustment procedure.
Q: What is the maximum weight the SBS-165TM can support?
A: The evidence does not state a load rating. The TID-600R unit weighs approximately 1 kg; confirm with the manufacturer that the SBS-165TM is rated to support this weight safely when mounted to your substrate.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBS-165TM is a no-frills tilt mount that solves a genuine deployment problem: rigid intercom mounting. If you're specifying TID-600R units across a multi-door entry system—office tower, warehouse receiving, residential complex—the ability to dial in viewing angle per location saves rework and callbacks. The polycarbonate construction and 35-gram weight mean this isn't over-engineered, but it's engineered correctly for the load it carries.
Technical Highlights:
- Adjustable tilt mechanism: Lets you optimize sightlines for each door or entry point without field-fabricating brackets or wedges—both of which fail under thermal cycling.
- Polycarbonate durability: Better UV and impact resistance than ABS, critical for lobbies and outdoor canopies where sunlight exposure is constant.
- Full humidity range (0–100% RH): Condensation, steam, and salt spray on the mount itself won't cause warping or corrosion—though your wall substrate fastening method matters more than the mount's material rating.
- Compact 163.6mm height: Fits tight spaces and doesn't dominate the wall surface, which matters in upscale or residential settings where aesthetics factor into final approval.
Deployment Considerations:
- Fastener responsibility: The mount includes no hardware. You must source appropriate anchors for drywall, concrete, or steel. Undersizing fasteners is the #1 field failure mode; a 1-kg intercom on a poor anchor will eventually shift or fall.
- Tilt adjustment spec gap: The datasheet does not specify tilt angle range. Before ordering, confirm the adjustment range meets your sightline requirements—some mounts offer only 10–15°, others 30°+. Verify before procurement.
- Outdoor condensation risk: At -30°C, condensation will form inside any humid enclosure (like a covered entry canopy). The mount itself tolerates it, but ensure the TID-600R's seal is intact and your fasteners won't rust.
Deploy the SBS-165TM for any multi-door TID-600R rollout where site conditions demand viewing angle flexibility—office lobbies, loading docks, residential entries—and you're confident about fastener selection. It's a legitimate part of a professional install; don't skip it just to save a few dollars on bulk orders.
