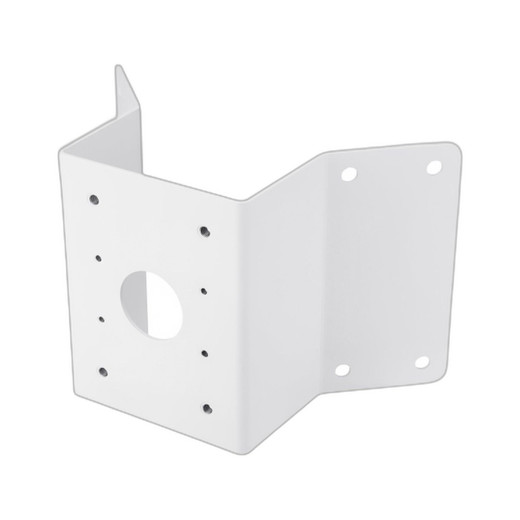

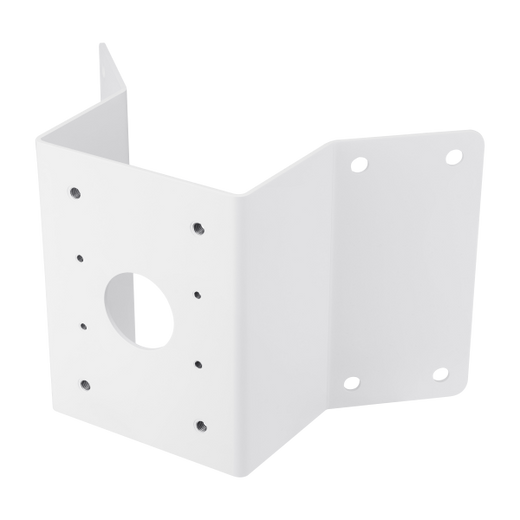

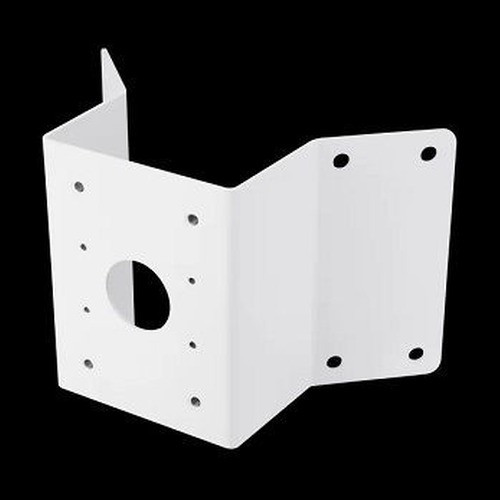

Hanwha SBP-300KMW1 Corner Mount Base
The Hanwha SBP-300KMW1 is a corner-specific mounting bracket engineered to position IP cameras in tight architectural corners where wall or ceiling mounts create sightlines or accessibility issues. Built from aluminum alloy, it solves a real integration problem: maximizing coverage in confined spaces without sacrificing structural integrity or aesthetics.
Key Features
- Corner-Optimized Design: Positions cameras in corners to capture coverage areas that standard wall or ceiling mounts cannot reach effectively — eliminates wasted coverage angles and dead zones in retail, office, and institutional layouts.
- Aluminum Alloy Construction: Resists corrosion and environmental degradation across temperature swings from -50°C to 50°C (-58°F to 122°F), meaning you can deploy this mount in both arctic warehouses and hot outdoor climates without material failure or finish peeling.
- Compact Footprint: At 228.5 x 173.5 x 91.2 mm, the SBP-300KMW1 sits tight in corner pockets without protruding into adjacent wall space — critical when ceiling-to-wall transitions are tight or when aesthetics matter in visible areas.
- White Finish: Blends into institutional and modern interiors; minimizes visual footprint in spaces where mounting hardware draws attention.
- Broad Camera Compatibility: Works with Hanwha Techwin X, Q, and P series IP cameras, plus Wisenet-branded models — gives you flexibility across multiple camera families within the same deployment.
- 1.5 kg Weight: Light enough for standard drywall anchors and concrete fasteners; does not require reinforced framing or heavy-duty ceiling structures.
Integration & Compatibility
The SBP-300KMW1 mounts Hanwha IP cameras in corner positions where traditional pendant, wall, or flush-ceiling brackets fall short. It is designed to work with the X, Q, and P series product lines — check your specific camera's mounting interface before ordering to confirm the bracket pattern aligns. If you are unsure whether your camera model supports this mount, verify the mounting footprint against the camera's installation guide.
Corner mounting becomes critical in retail environments where sightlines need to cover blind spots near shelving or merchandise displays, in office spaces where corner conference rooms lack usable wall space, and in warehouse automation settings where camera placement must avoid equipment and racking structures. The operating temperature range (-50°C to 50°C) also supports outdoor corner deployments — building overhangs, loading dock corners, and exterior warehouse perimeters where temperature swings are extreme.
When to Choose a Different Accessory
If your installation requires a flush wall mount or a pendant downrod mount instead of a corner bracket, consider alternative mounting options within the Hanwha accessory line. For ceiling applications where corners are not a constraint, standard ceiling mounts offer simpler installation and lower cost. If the camera must be pole-mounted on a standalone structure, a pole-mount bracket is the appropriate choice.
Frequently Asked Questions
Q: Is the SBP-300KMW1 suitable for outdoor corner installation?
A: Yes. The aluminum construction and operating range of -50°C to 50°C support outdoor use in covered corners (overhangs, alcoves, underside of soffits). For fully exposed outdoor corners subject to direct rain and UV, confirm that your camera body itself carries an appropriate IP rating (IP66 or higher) — the mount alone does not waterproof the installation.
Q: What fastening hardware is required to install the SBP-300KMW1?
A: Hardware is not specified in the product documentation. Contact the installation team or refer to the camera manufacturer's installation guide for the appropriate fasteners for your substrate (drywall, concrete, wood). Standard concrete anchors or drywall toggles rated for 1.5 kg (3.3 lbs) plus camera weight are typical.
Q: Does the SBP-300KMW1 fit all Hanwha Techwin camera models?
A: The mount is compatible with X, Q, P series and Wisenet IP cameras. Not all models within these series may share the same mounting footprint. Verify your camera's mounting interface pattern before purchase — check the camera's installation guide or contact manufacturer support.
Q: Can the SBP-300KMW1 be used indoors and outdoors?
A: Yes. The aluminum alloy and temperature rating (-50°C to 50°C) support both indoor and outdoor deployments. However, ensure the camera attached to the mount also carries outdoor certifications if it will be exposed to weather or extreme temperatures.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The SBP-300KMW1 is a straightforward corner-mounting solution that solves one specific problem well: deploying cameras in architectural corners where standard ceiling or wall brackets either block sightlines or require recessed installation. At 228.5 x 173.5 x 91.2 mm, the footprint is compact enough not to create visual clutter, and the aluminum construction handles temperature swings from -50°C to 50°C without material fatigue — a real asset in uninsulated storage, loading bays, and covered exterior spaces.
Technical Highlights:
- Aluminum Alloy Build: Resists corrosion and environmental attack across a 100°C operating range; no repainting, no surface degradation in freeze-thaw cycles or high-humidity warehouses.
- Weight Under 2 kg: 1.5 kg mount plus typical camera (0.3–0.6 kg for compact models) stays well within capacity of standard drywall anchors and concrete fasteners; no reinforcement or structural engineering required.
- Hanwha X/Q/P Compatibility: Works across three major product families — gives you mount flexibility if you rotate camera models during refreshes or add mixed SKUs across sites.
Deployment Considerations:
- Verify your camera's mounting footprint against this bracket before purchase — not all X/Q/P models share identical interfaces.
- Fastening hardware is not included or specified in the product docs. Bring your own fasteners matched to substrate (drywall toggles, concrete anchors, expansion bolts) rated for 1.5 kg plus camera load.
- For outdoor exposed corners, the mount does not seal or weatherproof the camera connection — your camera must carry its own IP66+ rating and the bracket pocket must remain dry.
The SBP-300KMW1 is the right pick for retail loss-prevention corners, office perimeter monitoring, and warehouse automation sightlines where corner placement eliminates coverage gaps that wall and ceiling mounts cannot address. It is not a solution for situations where a pendant downrod, flush wall mount, or pole mount would work equally well — simpler geometry usually means lower cost and faster installation.
