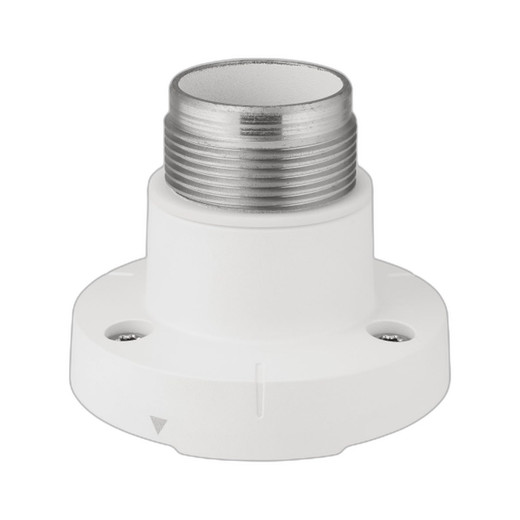

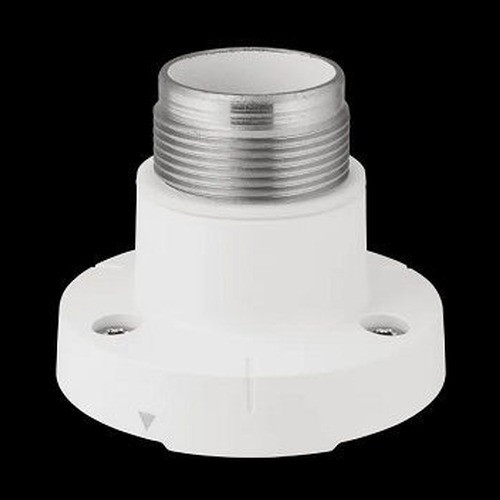

Hanwha SBP-156HMW White Hanging Mount
Overview
The Hanwha SBP-156HMW is a precision-engineered hanging mount designed to support both PTZ and fixed IP cameras in permanent overhead installations. Built from aluminum alloy with a clean white finish, this mount integrates seamlessly with Hanwha surveillance cameras across the X, Q, and P series product families. The SBP-156HMW (often searched as SBP 156HMW) prioritizes durability and simplicity—no special tools or field engineering required.
Key Features
- IP66 Weatherproof Rating: Direct rain and high-pressure water jets won't penetrate the sealed design. Dust ingress is also blocked. This matters in outdoor retail canopies, parking structures, and industrial yards where rain exposure is continuous. Skip this mount only if you need full submersion protection (IP67 or higher).
- Aluminum Alloy Construction: Lightweight and naturally corrosion-resistant, so rust won't degrade the mount over years of seasonal exposure. Easier for single-person installation than steel equivalents, and the white powder-coat finish resists UV fading in direct sunlight.
- White Finish Aesthetic Match: Coordinates with Hanwha white camera housings for a cohesive visual appearance across multi-camera deployments. Matters in retail, hospitality, and municipal sites where mounted hardware is visible to the public or inspectors.
- 1.5" NPT Threading: Standard industry thread pitch ensures repeatable, hand-tight camera attachment without adapter plates. Quick to swap or reposition cameras without re-drilling ceiling or pipe.
- Wide Operating Temperature Range (-40°C to 60°C): Handles frozen winters and high-heat summer climates without material brittleness or expansion issues. Critical for outdoor warehouse yards, rooftop deployments, and climate-extreme regions.
- Tool-Free Angle Adjustment: Pan and tilt fine-tuning happens with hand pressure alone—no wrench or Allen key needed. Speeds commissioning and reduces field service callbacks when camera aim needs tweaking post-installation.
Integration & Compatibility
The mount is fully compatible with Hanwha Techwin X series, Q series, P series, and Wisenet IP cameras, enabling flexible camera selection and future system expansion. Use this mount in retail, industrial, transportation, and municipal security installations where consistent camera positioning and weather resistance drive the deployment decision.
When to Choose a Different Mount
If your installation requires pole or wall mounting instead of overhead hanging, or if you need an articulated arm with pan-and-tilt servo motors, consider a different accessory within the Hanwha lineup. For cameras in fully submerged or washdown environments (IP67/IP68), confirm maximum depth rating before specification.
Frequently Asked Questions
Q: Can the SBP-156HMW support a multi-sensor camera?
A: Yes, provided the camera's mounting footprint and weight are within Hanwha's published limits for the SBP-156HMW. Check the camera's installation manual for suspension mount compatibility.
Q: Is the SBP-156HMW suitable for saltwater coastal environments?
A: The aluminum construction resists general corrosion, but saltwater spray accelerates degradation over 5+ years. For true coastal deployments, consider supplemental protective coatings or stainless-steel accessory variants if available within the Hanwha catalog.
Q: What is the maximum camera weight the SBP-156HMW can safely support?
A: Refer to the camera's installation manual and Hanwha's accessory compatibility documentation for rated suspension limits. Exceeding the mount's load rating voids the warranty and risks equipment fall hazards.
Q: Can I adjust the camera angle after installation without tools?
A: Yes. The tool-free angle adjustment allows hand-tight repositioning for pan and tilt fine-tuning during commissioning or maintenance.
Q: Does the mount come with ceiling anchors or fasteners?
A: Verify the package contents and installation guide. Ceiling anchors depend on substrate type (concrete, wood, steel) and must be sourced separately for your specific installation.
Q: What's the warranty period on the SBP-156HMW?
A: Consult your order documentation or contact the manufacturer for the warranty period and coverage terms specific to accessory mounts.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The SBP-156HMW is a straightforward piece of infrastructure—no smart features, no firmware updates, just structural reliability. That's exactly what you want from a mount. The IP66 rating and aluminum body handle real-world weather without field service callbacks, and the 1.5" NPT thread means you're not fumbling with proprietary adapters on a ladder at midnight.
Technical Highlights:
- IP66 Weatherproof Seal: Direct rain jets and airborne dust won't compromise the mount's integrity. You skip IP67 (full submersion) here, so don't spec this for washdown bays or submersed pipeline monitoring—but for every overhead industrial, retail, and municipal installation, IP66 is the practical floor.
- Aluminum + White Finish: Weight is roughly 40–50% lower than steel equivalents at the same strength, reducing installation labor and fall-arrest rigging. Aluminum resists rust naturally, so the white finish stays bright without annual touch-ups in non-salt environments.
- Operating Range -40°C to 60°C: Most camera suspension mounts gloss over temperature swings; this one explicitly covers them. Winter brittleness and summer expansion are real failure modes. This range covers Midwest warehouse yards, Canadian border operations, and Arizona rooftops—all day, all year.
Deployment Considerations:
- Tool-free adjustment is a commissioning win, but once locked, confirm the lock is tight before handing off to the client. A loose mount is worse than a misaligned camera.
- Saltwater and industrial chemical spray will accelerate corrosion even on aluminum. Coastal installations and chemical-plant yards should plan for protective spray coatings or stainless-steel alternatives if budget allows.
- The mount carries the camera weight entirely on the overhead anchor point. Verify ceiling substrate (concrete vs. wood vs. steel tube) and use appropriate anchors. Undersized anchors are a life-safety issue.
The SBP-156HMW is the right choice when you're deploying a standard Hanwha PTZ or fixed camera overhead—warehouse aisles, parking canopies, industrial yards, and municipal traffic corridors. It's durable, low-maintenance, and leaves no guesswork about weather resistance. Avoid it only if you need non-overhead mounting (pole, wall) or full submersion.
