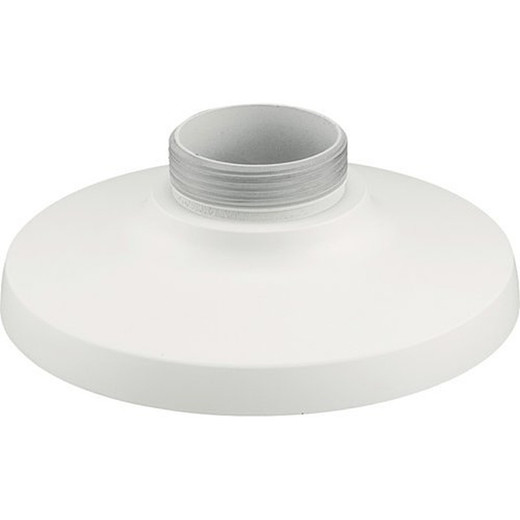

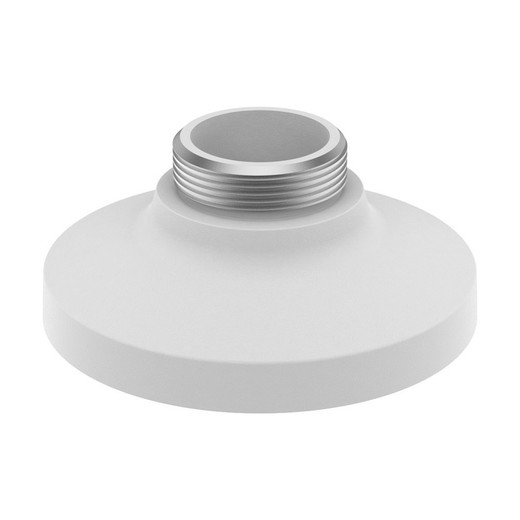

Hanwha SBP-300HMW7 Hanging Mount, White
The Hanwha SBP-300HMW7 is a lightweight aluminum hanging mount engineered for secure ceiling and overhead camera installations across surveillance deployments. This accessory addresses a fundamental installation challenge: overhead mounting requires minimal structural load while maintaining rigid support under thermal cycling and vibration. At just 145 grams, the SBP-300HMW7 reduces ceiling load compared to heavier alternatives, a real advantage when mounting across multiple camera positions in warehouses, retail facilities, or industrial environments where structural capacity is finite.
Key Features
- Lightweight aluminum construction (145g): Minimizes load on ceiling infrastructure — critical in warehouse and retail installations where you may be mounting 8–20+ cameras across different ceiling locations. Lighter mounts mean fewer reinforcement brackets and simpler installation logistics.
- PF 1 1/2" male thread interface: Standard 1 1/2" pipe thread compatible with common wall and ceiling mount adapters (SBP-300WM, SBP-300WM1, SBP-300CM, SBP-300LM), allowing flexible positioning and angle adjustment without additional adapters or threading hardware.
- Extreme temperature tolerance (-50°C to 60°C): Handles thermal cycling without material degradation or loose fasteners. Relevant for loading docks, transitional spaces, and climates with seasonal swings — prevents mount drift or creep as temperatures fluctuate.
- Full humidity tolerance (0–100% RH): No moisture-related corrosion or electrical leakage concerns. Deploy in high-humidity environments (food processing, car washes, greenhouse facilities) without degradation of the aluminum or thread interface.
- White finish: Blends with modern drop ceilings and architectural environments, reducing visual clutter compared to black or unpainted aluminum — a practical benefit in customer-facing retail or office installations where aesthetics matter.
- Compatible with 11+ Hanwha camera models: Works with XNV, QND, and SBP series cameras, reducing the number of mount types you need to stock or qualify during system design. Check your specific camera model against the compatibility list to confirm thread alignment.
Integration & Compatibility
The SBP-300HMW7 integrates with the Hanwha Hanwha IP camera lineup via its PF 1 1/2" male thread. It pairs with wall mount adapters and corner mount kits in the SBP-300 family, giving you flexibility to position cameras at various angles and heights without swapping the mount itself. Verify that your selected IP camera includes a compatible female thread or adapter before ordering.
When to Choose This Mount
Select the SBP-300HMW7 if you need a low-weight ceiling or overhead solution for Hanwha cameras in environments with significant thermal variation or high humidity. If your installation is indoors, temperature-controlled, and requires only basic pendant mounting, a lighter bracket may suffice. If you need wall mounting instead of hanging, explore the SBP-300WM variants. For PTZ cameras or heavier models requiring rigid bracing, confirm weight ratings with Hanwha technical support.
Frequently Asked Questions
Q: Is the SBP-300HMW7 suitable for outdoor installations?
A: The mount itself tolerates outdoor temperature and humidity extremes (-50°C to 60°C, 0–100% RH). However, the camera you attach must also be outdoor-rated. Pair this mount with an outdoor Hanwha camera (e.g., XNV or QND outdoor models) for full outdoor deployment.
Q: What is the weight capacity of the SBP-300HMW7?
A: The evidence does not specify a maximum load rating. Contact Hanwha technical support or your system integrator to confirm weight limits before mounting a camera significantly heavier than the typical Hanwha models it's designed for.
Q: Can I use the SBP-300HMW7 with non-Hanwha cameras?
A: Not directly. The SBP-300HMW7 is engineered for Hanwha's PF 1 1/2" thread interface. Use a camera-specific mount adapter if you need to attach a different brand.
Q: Does the SBP-300HMW7 come with fasteners and installation hardware?
A: The evidence provided does not detail included fasteners or installation kits. Confirm with your supplier whether fasteners are included or must be sourced separately based on your ceiling type (drywall, metal, etc.).
Q: What's the difference between the SBP-300HMW7 and wall-mount alternatives?
A: The SBP-300HMW7 is designed for hanging from ceiling or overhead structures. Wall mount variants (SBP-300WM, SBP-300WM1) are designed for vertical wall surfaces. Choose based on your installation geometry.
Q: Is the white finish weather-resistant?
A: The white finish is durable and rated for humidity extremes, but the evidence does not specify UV resistance or long-term outdoor fade characteristics. In direct sunlight over years, expect some color change. For high-UV exposure sites, confirm fade resistance with Hanwha.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The SBP-300HMW7 solves a genuine logistics problem in multi-camera overhead installs: weight. At 145 grams, it's a legitimate advantage when you're mounting across a 50-camera warehouse deployment where cumulative load matters. The extreme temperature rating (-50°C to 60°C) and full humidity tolerance (0–100% RH) mean this isn't just a casual indoor bracket — it's engineered for dock doors, transitional spaces, and facilities with real thermal swings where mounts creep or fatigue over time.
Technical Highlights:
- 145g aluminum construction: Reduces cumulative ceiling load across multi-camera deployments. In a 20-camera warehouse install, that's roughly 3 kg less structural stress compared to heavier alternatives — a real factor if your ceiling is already near capacity.
- PF 1 1/2" male thread: Standard pipe thread ensures compatibility with Hanwha's SBP-300 mount family (WM, WM1, CM, LM variants). No proprietary adapters; you can mix and match positioning hardware as your layout requires.
- -50°C to 60°C thermal range: Accommodates arctic cold storage, loading docks in winter, and hot climates without material creep or fastener loosening. This matters in automotive plants, food distribution, and outdoor transitional spaces where thermal cycling happens daily.
Deployment Considerations:
- Weight capacity is not specified in the evidence. Before hanging a heavy industrial camera or large-format sensor model, get explicit load confirmation from Hanwha technical support. Don't assume it handles every Hanwha model equally.
- The mount itself is rated for extreme temperatures, but verify that your camera optics and sensor also tolerate the cold or heat. A camera rated only to 0°C will fail regardless of mount durability.
Best fit: warehouse, cold-storage, and loading-dock installations where you're deploying 8+ overhead Hanwha cameras and want to minimize ceiling structure impact. If your facility is climate-controlled and indoor-only, a standard plastic or lighter aluminum mount may serve fine. If you need wall mounting or a different thread pattern, check the SBP-300WM or SBP-300CM variants instead.
