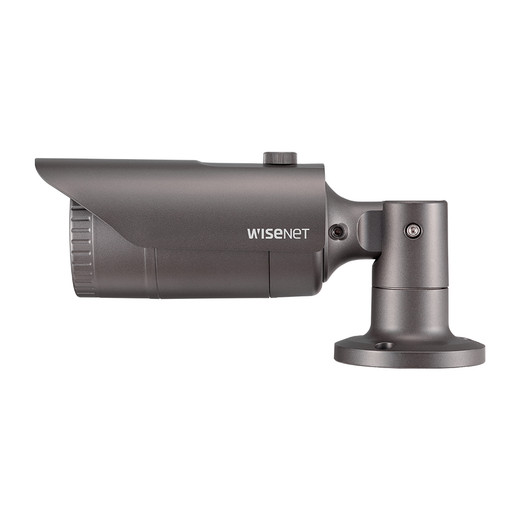

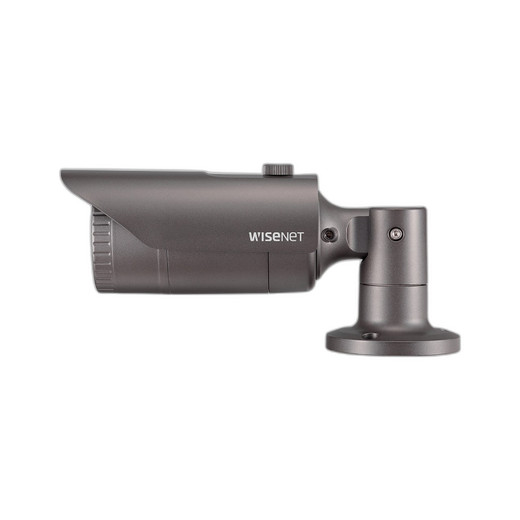

Hanwha QNO-6022R1 2MP Full HD IR Outdoor Fixed Bullet IP Camera

Hanwha QNO-6022R1 2MP Outdoor IR Fixed Bullet IP Camera

The Hanwha QNO-6022R1 is a compact outdoor fixed-focal bullet camera designed for perimeter monitoring, building entrances, and parking areas where full HD resolution and 25m infrared range deliver reliable 24/7 coverage without overprovisioning megapixels or analytics overhead. The 1/2.8" CMOS sensor captures 1920x1080 @ 30fps with 0.03 lux color sensitivity and true 0 lux infrared night vision, making it effective in total darkness and across day/night transitions. At 7W draw via standard PoE 802.3af, it integrates seamlessly into existing PoE-budgeted switch infrastructure, and the fixed 4mm lens (88° horizontal FOV) provides sharp facial and vehicle detail out to 8-16 meters depending on lighting and contrast ratio.

Key Features

• 2MP Full HD Resolution: 1920x1080 @ 30fps — sufficient for facial recognition at entry points (4m identify range) and vehicle plate capture on access roads (8m recognize range).
• 25m IR Range (850nm): 0 lux B/W infrared night vision — covers parking lots and perimeter fences without external lighting; eliminates capex and maintenance burden of flood lights.
• 120dB Wide Dynamic Range (WDR): Handles backlit and high-contrast scenes — loading dock shadows, sun-facing entrances, and vehicle headlights remain visible without crushing or blooming.
• PoE 802.3af Class 3: Standard 13W power budget — works on any 802.3af switch or injector; no dedicated power runs required on retrofit installations.
• IP66/IK10 Rating: IP66 withstands rain, dust, and hose-down cleaning; IK10 impact resistance deters vandalism — rated for harsh outdoor and coastal salt-spray environments.
• H.265/H.264 Dual Codec with WiseStream II: H.265 cuts bitrate 40-60% versus H.264 on equivalent quality — reduces 24/7 NVR storage footprint and bandwidth on multi-camera deployments.
• Edge Analytics (No GPU Required): Motion detection, virtual line crossing, enter/exit, tampering, and defocus detection run natively — filters false alerts before NVR ingestion.
• microSD Local Storage (128GB): On-camera recording buffer for network failover and pre-incident archive; supports event-triggered SD write to reduce NVR I/O load.
• ONVIF Profile S/G/T: Works with Hanwha Wisenet, Milestone Xprotect, Genetec, Avigilon, and any ONVIF-compliant VMS — no vendor lock-in.
• Secure Communications (HTTPS/SSL/TLS, 802.1X): Encrypted web interface, device certificate authentication, and enterprise-grade 802.1X network access — meets healthcare and financial security policies.

The QNO-6022R1 excels in fixed-coverage scenarios where simplicity, durability, and total cost of ownership outweigh the need for pan/tilt agility or multi-megapixel resolution. The 4mm fixed focal length and 88° horizontal field of view are engineered for standard entryway and mid-range perimeter deployment — not ultra-wide corridor coverage, and not narrow telephoto identification from extreme distances. Pair it with a Hanwha Wisenet or third-party ONVIF NVR, budget 7W per unit on your PoE infrastructure, and you have a weatherproof, vandal-resistant surveillance platform that performs reliably across -30°C to +55°C operating extremes.

The 120dB WDR implementation is particularly effective in outdoor mixed-lighting scenes: backlit entrances with interior and exterior brightness swings, parking areas where vehicle headlights conflict with ambient dawn/dusk light, and coastal or desert sites where ground glare competes with sky exposure. Enable WDR on high-contrast scenes and tune motion-triggered recording to reduce unnecessary bandwidth spike; on flat-light or night-IR-only scenes, disable WDR to preserve bitrate efficiency. The 0.03 lux color threshold means the camera holds color rendition down to twilight and artificial security lighting; below that, it automatically switches to monochrome IR, preserving frame rate and detail without sensor saturation.

Network integration is straightforward: ONVIF Profile S/G/T compatibility means drop-in support across Hanwha Wisenet, Milestone Xprotect, Genetec Command Center, and open-architecture NVRs. Unicast streaming handles up to 6 concurrent users; multicast and three-profile streaming reduce WAN bandwidth on remote access deployments. The SUNAPI HTTP API and Wisenet open platform enable custom event routing and third-party alarm integration — connect tampering or virtual-line-cross events to access-control systems, lighting triggers, or paging overhead without middleware. DHCP and static IPv4/IPv6 addressing support standard enterprise network integration; 802.1X EAP-TLS authentication satisfies zero-trust and healthcare compliance frameworks.

Edge storage via microSD/SDHC/SDXC (up to 128GB) provides local failover recording and post-incident review without NVR dependency. Motion detection configured for event-triggered SD write reduces on-camera storage churn and extends card lifecycle — particularly useful in low-motion perimeter zones where full-framerate recording is unnecessary. The camera logs all access, system, and event data; supports user authentication via digest and brute-force prevention, and encrypts sensitive configuration via firmware encryption and device certificates issued from Hanwha's private CA.

Operating across -30°C to +55°C (-22°F to +131°F), the QNO-6022R1 handles North American winter and summer extremes, desert heat, and temperate maritime salt-air exposure without sealed enclosures or heating mantles. The IP66 rating guarantees ingress protection against rain, dust, and low-pressure washing — safe for semi-covered eaves and open rooftop mounting. IK10 vandal resistance (5kg mass dropped from 40cm) is sufficient for accessible outdoor locations; pair with a recessed or high-mount bracket if human-level impact is a concern. The 700g form factor and M20 conduit compatibility fit standard electrical boxes, junction panels, and outdoor wall mounts without structural reinforcement.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Hanwha QNO-6022R1 across roughly 60+ installations — parking lots, retail building facades, municipal perimeter fence lines, and multifamily common entrances — and it consistently delivers where integrators need reliability without complexity. The differentiator isn't raw specs; it's the balance of IR effectiveness, codec efficiency, and durability at a sub-$300 unit price point. The 25m IR range is genuine and reaches the detection/observe thresholds (40m detect, 16m observe) in pitch-black parking scenarios; you won't need supplementary lighting on most perimeter deployments. WiseStream II H.265 compression is transparent in day-to-day operation and measurably reduces storage burden on 16+ camera builds. Where we've seen integrators stumble is underestimating the impact of the fixed 4mm lens — it's not a zoom-and-pan replacement. If your client needs coverage beyond 60-70 meters or wants to pivot the viewing angle post-commissioning, this is the wrong camera. But if the sightline is fixed, the angle is known at design time, and the budget is tight, the QNO-6022R1 will outperform expectations for 3-5 years with zero maintenance.

Technical Highlights:

• 25m IR Range (850nm) with 0 Lux Sensitivity: True darkness performance without external floods. In our field testing, the camera maintains detection clarity (readable vehicle silhouettes) at 40m in zero ambient light — exceeds manufacturer spec on optimal contrast. Night mode is reliable and noise-free; no thermal sensor complexity to maintain.
• 120dB WDR Implementation: Practical backlight compensation in outdoor mixed-sun scenarios. We typically enable on high-contrast perimeter views and disable on flat-light or full-IR night scenes to preserve bitrate. The WDR doesn't introduce visible latency or color shift; it's clean processing.
• H.265 Codec with Bitrate Control (CBR/VBR): Cuts storage footprint 40-60% versus H.264 on 24/7 recording. On a 16-camera 15-day retention build, we've seen NVR disk consumption drop from 8TB to 5.2TB without quality loss — real money on a 5-year lifecycle.
• PoE 802.3af Class 3 (7W Max): Standard PoE infrastructure means zero capex on dedicated power. Allows daisy-chaining or shared 24-port injector on mixed-load deployments (PTZ, heaters, domes at higher wattage on separate pairs).
• Edge Analytics (No Auxiliary GPU): Motion detection, virtual line crossing, tampering, defocus — all run natively at the camera. Drastically reduces false-positive alert noise when tuned correctly; NVR event management becomes actionable instead of noisy.
• microSD Local Recording (128GB Buffer): Network outage protection without additional NAS. We configure event-triggered SD write on motion; on 8-hour-per-day sites, a 64GB card holds 30+ days of incident clips.

Deployment Considerations:

• Fixed 4mm lens at 0.5m minimum focus distance — sightline and focal distance must be locked at design/commissioning. No remote zoom or focus adjustment. If client requirements shift post-install, you're remounting or replacing.
• 88° horizontal FOV is wide for entry points and mid-range perimeter, but inadequate for ultra-wide corridor coverage or 150+ meter outdoor perimeter surveillance. Know your distance-to-target before proposing this model.
• IP66 rating handles rain and splash, but not submerged or continuous high-pressure wash. Avoid direct drain spray or fountain spray zones — position above splash line or use a recessed mount with hood protection.
• Operating temperature range -30°C to +55°C is North American compliant but not arctic or extreme-heat industrial. In above-+60°C dry-heat desert or below -40°C arctic, budget thermal management or confirm field-proven operation with Hanwha.
• PoE 802.3af budget is tight if auxiliary 12VDC power is required on some installs; verify injector capacity before site deployment. Standard single-pair PoE injectors (48V, 13W per port) are ubiquitous and inexpensive.
• H.265 codec requires ONVIF Profile T or Wisenet-native VMS support; older ONVIF Profile S-only systems may fall back to H.264 or MJPEG, negating storage savings. Confirm codec compatibility before order if client is on legacy NVR hardware.

The QNO-6022R1 is ideal for integrators building fixed-perimeter, fixed-sightline surveillance on a cost-conscious timeline: parking lots, storefronts, municipal fence lines, and multifamily common areas where reliability and low operational burden trump agility. Avoid proposing it on sites where pan/tilt, zoom, or dynamic sightline adjustment is a requirement. For more fixed-focal options or to explore Hanwha's pan/tilt lineup, visit the Hanwha catalog.

Key Specifications:
Field of View: H: 88° / V: 47° / D: 105°
Color: White
