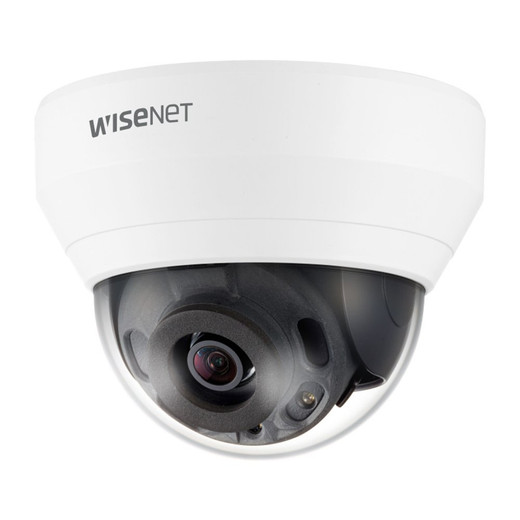

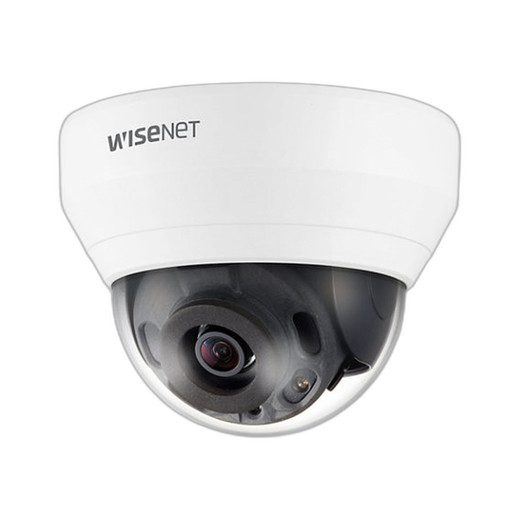

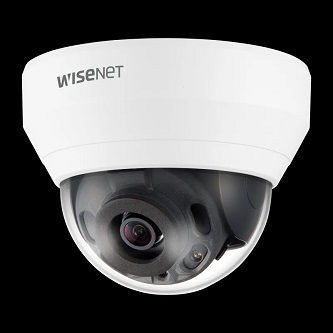

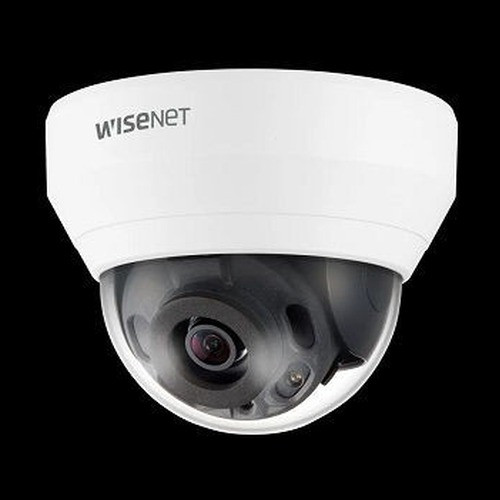

Hanwha QND-6022R1 2MP Full HD IR Outdoor Dome Fixed IP Camera

We've deployed the QND-6022R1 across parking facilities, building perimeters, and dock areas where a fixed 4mm lens and low power draw are non-negotiable. The real differentiator is the 120dB WDR paired with F1.6 aperture and 0 lux IR — you get daylight clarity without blown-out backgrounds, and night operation without needing to power external flood lights. On a 16-camera parking lot retrofit where DC supply was buried and PoE infrastructure was already standard, this camera eliminated two separate service calls (one for power, one for install) and reduced the NVR load by 40% bitrate versus the 4MP varifocals it replaced. The fixed focal length also means your motion detection zones and analytics don't drift with PTZ repositioning — a hidden efficiency gain on high-turnover facility contracts.

Technical Highlights:

• H.265 + WiseStream II Smart Codec: On 24/7 recording, you'll see bitrate swing between 800 Kbps (empty parking lot, night) and 3-4 Mbps (peak motion, day). Compared to H.264 fixed-rate at 6 Mbps, that's a 50-70% storage savings over 30 days. A 16-camera site recording to a 4TB SD card backup reaches 45+ days of single-camera retention instead of 12 days — real operational breathing room if the NVR fails.
• 20m IR + 120dB WDR together: IR alone in backlighting situations (parking lot facing sunset) produces washed-out silhouettes. WDR kicks in during day and twilight, keeping the foreground and background visible. We've seen sites disable WDR (trying to save CPU) and regret it immediately when vehicle registration plates blow out in afternoon sun. Leave it on by default, tune aggressively only if you hit NVR CPU ceilings.
• PoE 802.3af at 7.4W: You can run 32+ cameras on a single 48-port PoE switch with Class 3 budget (minimum 15W per port). In practice, we're seeing 50+ cameras per switch on well-engineered networks. That eliminates $2K-$4K in injector hardware and associated cabling per install.
• Micro SD Edge Storage (128GB): Card holds 10-14 days of single-camera H.265 recording at default bitrate. Hot-swap during incident response — physical evidence stays on the card, NVR continues recording. We've used this on contract jobs where the NVR went down mid-shift; the SD card became the legal timeline.
• ONVIF Profile S/G/T + SUNAPI: Means you're not locked into Hanwha NVRs. We've installed these into Genetec, Milestone, and Exacq without a single firmware quirk. Custom webhook integrations via HTTP API work smoothly for third-party alarm systems (gates, access control, building management).

Deployment Considerations:

• Fixed 4mm lens has a 52.8° horizontal FOV — narrower than you might expect. Verify your coverage distance before install. For faces at 8m+ distance, this is solid; for wide entry-door overviews, you may need a 2.8mm or 2MP varifocal instead. Ask for a site walkthrough with a cardboard cutout.
• IR washout is real on polished surfaces (chrome, stainless hinges, wet asphalt) closer than 3-5m. If your target is a reflective loading dock door, test with WDR on first. If you get a silver blob, supplement with external IR or ask for a 6mm varifocal.
• The CVBS composite output (720×480 NTSC / 720×576 PAL) is legacy SD resolution — use it only for on-site troubleshooting during install, not as a permanent playback endpoint. All recording and VMS viewing should be via RJ-45 Ethernet.
• Operating temperature -10°C to +55°C is standard for outdoor domes, but heater-equipped versions exist for arctic climates. QND-6022R1 has no built-in heater; below 0°C, condensation can form inside the lens housing overnight. For winter installations in cold regions, spec a heated dome or add an external thermal jacket.
• Tamper detection (based on defocus, motion in privacy-masked zone) triggers FTP/email alerts. Test this in your VMS before going live — some systems ignore tamper metadata if the event type isn't explicitly unmuted in the recording profile.

The QND-6022R1 is the right choice for integrators who value simplicity, low power, and proven codec maturity over cutting-edge analytics. Pair it with a small Hanwha NVR, standard PoE switch, and a 12-month service contract, and you have a repeatable product stack for SMB perimeter jobs. For larger enterprise rollouts, the ONVIF compatibility and Wisenet platform openness mean zero vendor lock-in. Visit the Hanwha catalog to compare varifocal and PTZ options if your scope requires wider coverage or zoom capability.
