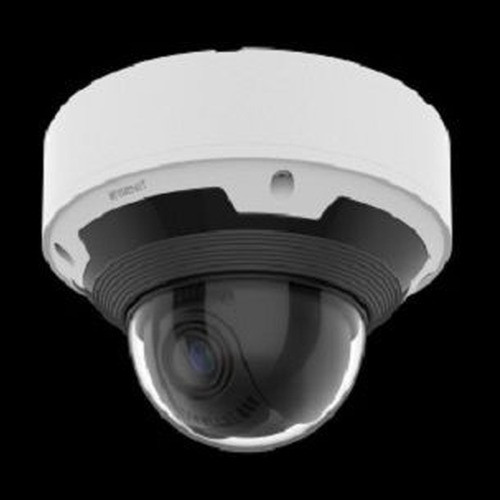

Hanwha XNV-6083RZ 2MP Full HD IR Varifocal Outdoor Dome IP Camera

Hanwha XNV-6083RZ 2MP Full HD IR Varifocal Outdoor Dome IP Camera

The Hanwha XNV-6083RZ is a fixed-dome outdoor surveillance camera designed for perimeter protection, parking areas, and large open spaces where field-of-view flexibility and low-light performance matter. This is a 2MP (1080p) camera with a motorized varifocal lens, infrared illumination, and a compact dome housing rated for direct rain, dust, and vandal resistance. It operates via Power over Ethernet (PoE), meaning one Ethernet cable handles both video and power — no separate 12V supply needed.

Key Features

• 2MP Full HD Resolution (1920×1080): Captures 1080p video across the frame. At this resolution, facial detail is marginal beyond 20–25 feet; use this camera when you prioritize wide coverage over zoom-in identification. The 2MP sensor is mature, well-supported by NVRs and video management systems, and keeps bitrate manageable on bandwidth-constrained sites.
• Motorized Varifocal Lens (2.8–12mm, 4.3x Zoom): Adjust the field of view remotely without visiting the camera. A 2.8mm setting delivers roughly 110° horizontal coverage for perimeter overview; 12mm narrows it to roughly 29° for focused monitoring of gates or loading docks. This flexibility means you can tune coverage post-installation rather than ordering multiple fixed-lens models.
• IR Illumination Up to 50m (164 feet): Built-in infrared LEDs extend the camera's night vision to 50 meters in total darkness. At 40m, expect usable detail; beyond that, shapes are recognizable but fine features fade. This range suits large parking lots and building perimeters; skip this if your site has ambient streetlighting or if you need face-level detail in the dark.
• Extreme WDR (150dB): Wide Dynamic Range technology lets the camera handle simultaneous bright sunlight and deep shadows in a single frame — critical for scenes with glass doors, bright skies, or mixed indoor/outdoor transitions. 150dB is aggressive; backlit subjects remain visible rather than silhouetted. This reduces the need for manual exposure tuning and cuts false alarms from glare-triggered motion detection.
• Day/Night Mode with ICR: An infrared cut filter (ICR) automatically switches between daylight color mode and monochrome night mode. The transition is mechanical, not electronic, so it's reliable and doesn't introduce color-shift artifacts.
• H.265 Video Compression: Cuts bandwidth and storage footprint roughly 40–50% compared to H.264 at equivalent quality. On a 24/7 outdoor camera, this translates to genuine cost savings: fewer NVR channels needed, slower hard-drive wear, longer retention windows on the same storage. Confirms backward compatibility with H.264 if your system requires it.
• PoE+ Powered (Max 22.5W, Typical 11W): Draws typical power of 11W, well within standard 802.3af PoE (15.4W budget). This means you can run it from any gigabit PoE switch without a separate power injector, simplifying installation and reducing wall-outlet dependencies. The 22.5W max is for full-brightness IR; typical operation sits comfortably under the limit.
• IP66 / IP67 / IP6K9K Rated: IP66 handles direct rain, hose spray, and dust ingestion — the hard-coated dome bubble resists scratches and impacts. IP6K9K adds high-pressure jet resistance (like a power washer at close range). Skip this if you need full submersion (IP68); this camera is outdoor-tough, not waterproof for underwater mounting.
• Vandal Resistance (IK10+): IK10 means the dome withstands impacts up to 40 joules (equivalent to a 5kg weight dropped from 0.8m) without cracking. The "plus" designation indicates enhanced durability beyond standard IK10. Not unbreakable, but serious enough for schoolyards and high-traffic areas where casual bumps occur.
• AI-Based Analytics: Embedded object detection identifies persons, faces, and vehicles in real-time. Additional algorithms detect motion, fog, audio events, and physical shock (dome tap). These run on the camera itself, reducing CPU load on the NVR and enabling edge-level filtering (e.g., alert only on vehicle detection, not every shadow).
• WiseNRII Noise Reduction & WiseStreamIII Compression: WiseNRII smooths grainy night-vision footage without over-blurring, preserving sharp edges on moving objects. WiseStreamIII is Hanwha's adaptive bitrate engine — it boosts bitrate during high-motion scenes (person running) and throttles back during static shots, optimizing bandwidth without manual tuning.

Integration & Compatibility

The XNV-6083RZ connects via standard RJ-45 Ethernet (10/100/1000BASE-T) and supports ONVIF Profile S, meaning integration with Milestone XProtect, Genetec, Axis Camera Station, and most third-party video management platforms. H.265 and H.264 codec support ensures compatibility with legacy NVRs that may not yet support H.265. Embedded web interface for configuration; no proprietary software required for basic setup.

When to Choose a Different Model

If you need higher resolution and zoomed-in facial recognition beyond 25–30 feet, a higher-megapixel outdoor dome in the Hanwha catalog (4MP or 5MP variants) will deliver better detail. If your site has abundant ambient lighting at night (street lamps, security floods), you may not need the 50m IR range and can downgrade to a non-IR model for cost savings. If the site requires full submersion or extended underwater operation, specify an IP68-rated variant or a different product family entirely.

Frequently Asked Questions

Q: What is the maximum IR range on the XNV-6083RZ?

A: The camera delivers usable infrared illumination up to 50 meters (164 feet) in total darkness. Beyond 40m, image detail degrades but shapes and motion remain visible. Actual range depends on reflectivity and lens focal length — narrower zoom (longer focal length) concentrates IR over a smaller area, extending effective range.

Q: Can I adjust the lens zoom remotely on the XNV-6083RZ?

A: Yes. The motorized varifocal lens (2.8–12mm) supports remote zoom and focus adjustment via the camera's web interface or your video management system. No visit to the camera required after initial mounting.

Q: Does the XNV-6083RZ support H.265 compression?

A: Yes. H.265 is the default codec and cuts bandwidth roughly 40–50% versus H.264 at the same quality. H.264 is also available if your NVR or recorder does not yet support H.265.

Q: What is the power consumption of the XNV-6083RZ, and can a standard PoE switch power it?

A: Typical power draw is 11W; maximum is 22.5W during full IR operation. Standard 802.3af PoE (15.4W budget) is sufficient in typical mode. A single Ethernet cable provides both power and video — no separate 12V supply needed.

Q: Is the XNV-6083RZ suitable for wet environments like car washes or pool areas?

A: The XNV-6083RZ is rated IP66/IP67 and handles direct rain, hose spray, and dust. IP67 allows brief submersion, but it is not designed for continuous water spray at close range (like a car-wash bay). For high-pressure jet environments, specify the IP6K9K rating or a submersible variant.

Q: What analytics does the camera perform on-board?

A: The XNV-6083RZ includes AI-based object detection (persons, faces, vehicles), motion detection, fog detection, audio detection, and physical shock detection. These algorithms run on the camera itself, reducing NVR CPU load and enabling edge-level event filtering.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-6083RZ occupies a practical middle ground in outdoor fixed-dome design. It's not a megapixel beast — 2MP keeps bitrate reasonable on sites with aging switching infrastructure — but the 50m IR range and 150dB WDR give you genuine night and backlight performance without wrestling with exposure settings. The motorized varifocal lens is the real efficiency win: commission one SKU and tune coverage in the field rather than ordering three fixed-lens variants.

Technical Highlights:

• H.265 + WiseStreamIII adaptive bitrate: On a busy perimeter with 24/7 recording, this combo cuts storage consumption 40–50% versus H.264, translating to 3–4 extra weeks of retention on the same hard drive. Useful when your NVR is already at capacity.
• 150dB WDR at 2MP: Most 2MP domes offer 120dB WDR; 150dB is more typical in 4–5MP classes. This means you can mount the camera at a loading dock with bright sunlight behind the subject and still resolve faces in the foreground — no backlit silhouettes.
• Typical 11W PoE draw: At under 12W, you can daisy-chain these across a standard 48-port switch without hitting the power budget. A 24-port 802.3at PoE switch can typically supply 4–6 cameras of this class; the XNV-6083RZ doesn't demand a PoE++ refresh.
• On-camera AI object detection: The embedded person/vehicle/face detection runs edge-side, not on your NVR. This lets you filter trivial alerts (wind-blown debris, shadows) before they consume NVR disk I/O and recording bandwidth.

Deployment Considerations:

• IR bloom in reflected surfaces: Mount the camera above and away from reflective surfaces (metal fencing, polished glass). Close reflections bounce IR back into the lens and wash out detail. Test the final mounting angle with IR on before finalizing hardware.
• 2MP resolution ceiling: Expect usable facial identification up to 20–25 feet in good daylight. Beyond that, you're reading behavior and gait, not reading lips. If your threat model includes identity verification from distance, step up to a 4MP or 5MP camera in the Hanwha line.
• Motorized focus drift in thermal cycling: Varifocal lenses can drift focus slightly as the camera warms or cools in outdoor temperature swings. Commission with focus-assist tools and perform a re-check after the first season. Newer firmware often addresses this; confirm firmware revision before deploying a fleet.

The XNV-6083RZ is built for perimeter and facility-scale deployments where you want one-cable simplicity, low power draw, and real night vision without the cost and complexity of higher megapixel classes. Deploy it where wide coverage matters more than zoom-in detail, and where you can tolerate a 11W per-unit footprint on your PoE infrastructure.
