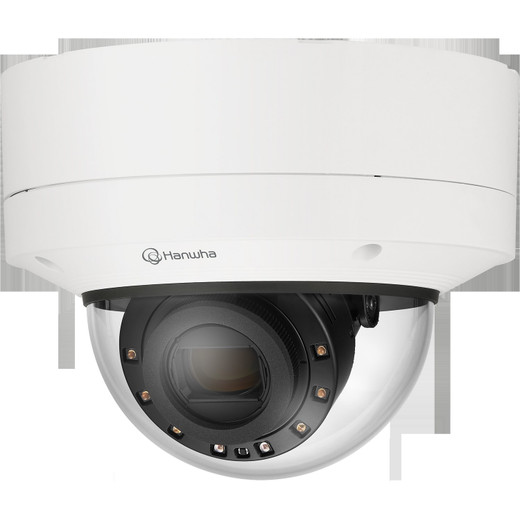

Hanwha XNV-6123R 2MP Outdoor AI IR Vandal Dome Camera

The Hanwha XNV-6123R is a professional-grade 2MP outdoor network dome camera engineered for demanding surveillance applications. Combining a 12x motorized zoom lens, advanced AI analytics, and robust vandal-resistant construction, this camera delivers reliable long-range monitoring in extreme weather and high-security environments.

Key Features

• 2MP 1/2.8" CMOS sensor with 1920x1080 native resolution
• 12x optical zoom (5.2–62.4mm) with 32x digital and 384x total zoom capability
• WiseIR 90-meter (295 ft) IR illumination for extended night vision
• ExtremeWDR technology (150dB) for high-contrast lighting scenarios
• AI-powered analytics: person, face, vehicle, and license plate detection
• IP66/IP67/IP6K9K and IK10+ rated for harsh outdoor environments
• Dual SD card slot edge storage (up to 1TB total)
• PoE+ and 12VDC power options with redundancy failover
• Advanced defog, tampering detection, and shock sensing

Imaging and Low-Light Performance

The XNV-6123R achieves exceptional clarity in minimal light with a 0.03 lux color sensitivity and 0.003 lux black-and-white sensitivity. WiseNRII noise reduction, based on the integrated AI engine, maintains image quality while reducing digital artifacts. The extremeWDR (150dB) system processes high-contrast scenes with simultaneous detail in bright and dark areas, eliminating blooming and crushing common in challenging lighting.

Optical and Zoom Capabilities

The motorized 12x zoom lens (F1.6 wide, F3.0 telephoto) provides 54.58° to 5.30° horizontal field of view, enabling both wide-area monitoring and detailed identification. At tele position, the camera can identify subjects at 83 meters (272 feet) and recognize details at 165.9 meters (544 feet). Focus control includes one-shot AF and focus save, with lens distortion correction (LDC) in fill and stretch modes.

AI Analytics and Intelligence

Integrated AI engine provides classified object detection distinguishing persons, vehicles, and license plates with detailed attributes (vehicle type: car, bus, truck, motorcycle, bicycle). Virtual line crossing/direction analysis, loitering detection, and intrusion detection enable proactive security responses. DetectionShot analytics trigger targeted recording and event notifications automatically.

Durability and Environmental Rating

Built for unforgiving outdoor deployment, the XNV-6123R meets IP66/IP67/IP6K9K (dust and water jet resistance), NEMA4X (corrosion protection), and IK10+ (vandal impact resistance) standards. Operating range spans -40°C to +60°C with humidity control via GORE vent technology. The aluminum dome with hard-coated bubble resists tampering and environmental degradation.

Connectivity and Encoding

Gigabit Ethernet (10/100/1000BASE-T) supports H.265/H.264 and MJPEG compression with WiseStream intelligent bitrate management. Multiple simultaneous profiles (up to 10) serve 20 concurrent unicast users. ONVIF Profile S/G/T/M compliance ensures platform interoperability, with SUNAPI and Wisenet open platform integration for custom applications.

Security Framework

TPM 2.0 (FIPS 140-2 Level 2), HTTPS/SSL encryption, 802.1X EAP authentication, IP filtering, and pre-installed device certificates protect against unauthorized access. User access logs and secure firmware updates maintain audit trails.

Applications

• Critical infrastructure and utility monitoring
• Perimeter security and intrusion detection
• Parking facilities and traffic management
• Industrial campuses and logistics centers
• Transportation hubs and border protection

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-6123R represents Hanwha's commitment to intelligent outdoor surveillance. The combination of 150dB WDR and AI-driven noise reduction addresses real-world challenges in mixed-lighting perimeter environments where traditional fixed-aperture cameras fail. The 90-meter IR range and 384x total zoom provide unmatched flexibility for large-area detection and identify-level recognition at distance.

PoE+ efficiency (typical 15.5W) reduces infrastructure costs while redundancy failover ensures continuous operation. The dual-slot SD card design with NAS recording options enables intelligent hybrid storage strategies. For integrators requiring both human intelligence and machine analytics in a single outdoor platform, the XNV-6123R's ONVIF compliance and open API support streamline deployment into diverse VMS ecosystems.

Available in Black.

Key Specifications:
Field of View: H: 54.58˚(Wide)~5.30˚(Tele) V: 32.19˚(Wide)~3.00˚(Tele)
Color: White
