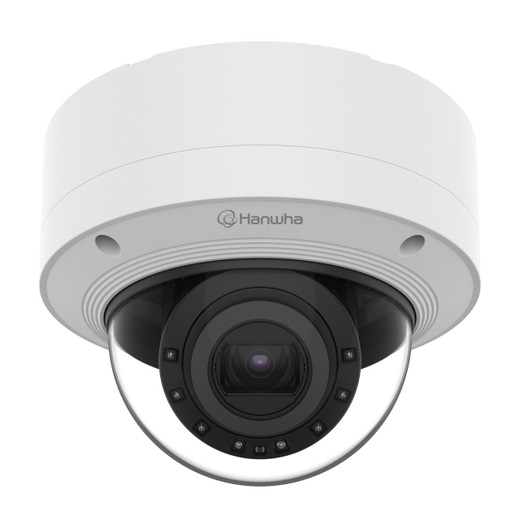

The Hanwha XNV-6123R/KAP delivers reliable 2MP surveillance in a ruggedized dome form factor designed to withstand harsh outdoor environments and deliberate tampering.
Image quality is supported by a varifocal DC auto iris lens and Wide Dynamic Range (WDR) processing, enabling clear video across varying lighting conditions. The camera achieves 0.06 Lux sensitivity at F1.6, ensuring effective low-light performance. Dual infrared night vision capabilities extend surveillance into complete darkness. Video compression options include H.265, H.264, and MJPEG, providing flexibility for bandwidth and storage optimization. The 2GB RAM and 512MB Flash memory support robust on-camera processing and buffer capacity.
Built for durability, the XNV-6123R/KAP carries an IP66/IP67 rating for complete dust and water ingress protection, and an IK10 vandal rating for impact resistance. Operating temperature range of -40°C to +60°C ensures function in extreme climates. The dome housing shields the lens and sensor from direct physical damage and UV exposure, making it ideal for high-risk or public-access locations where camera tampering is a concern.
Deployment is simplified through PoE+ (IEEE 802.3at) power delivery, eliminating the need for separate power infrastructure at the camera location. The metal-shielded RJ-45 Ethernet connection supports 10/100/1000BASE-T network speeds. On-camera title overlay capability accommodates up to 85 characters for location identification or timestamp annotation.
Integration is standardized through ONVIF Profile S/G/T/M compliance, ensuring seamless compatibility with third-party management platforms, video management software, and NVR systems. Audio input capability expands the camera's role in hybrid surveillance deployments. Storage temperature range extends to -50°C to +60°C, enabling flexible archival and transportation.
- 2MP resolution with WDR and varifocal auto iris lens
- IP66/IP67 rated waterproof; IK10 vandal-resistant dome
- 0.06 Lux IR night vision for low-light environments
- PoE+ powered with 1Gbps Ethernet connectivity
- H.265/H.264/MJPEG codec support for bandwidth efficiency
- ONVIF Profile S/G/T/M for ecosystem integration
The XNV-6123R/KAP is purpose-built for environments where cameras face physical risk—parking structures, transit hubs, outdoor retail. The IK10 rating and dome form factor provide genuine protection without bulky external guards. Pair the PoE+ efficiency with H.265 codec support, and you reduce both installation labor and bandwidth costs on larger deployments. ONVIF compliance means you're not locked into proprietary software, a critical consideration for multi-vendor system architectures.
