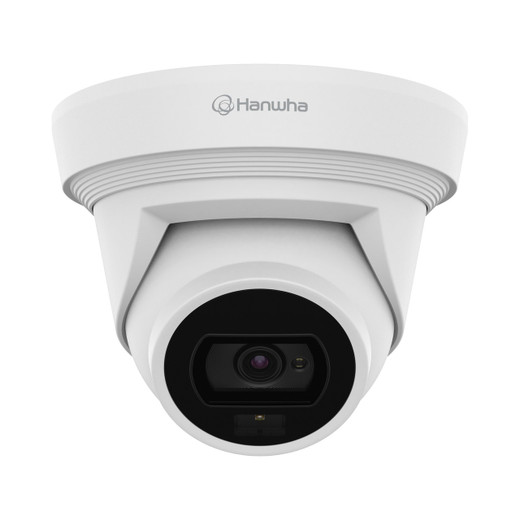

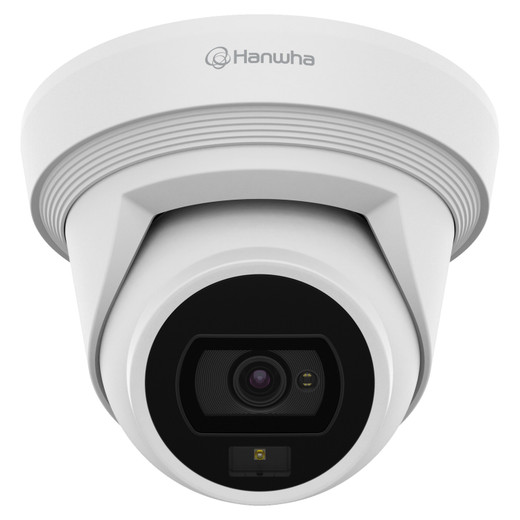

Hanwha QNE-C9013RL 8MP 4K Outdoor AI Dual Light Dome

Hanwha QNE-C9013RL 8MP 4K Outdoor AI Dome Camera

The QNE-C9013RL is a purpose-built outdoor surveillance dome designed for environments where low light, vandalism, and weather exposure are operational facts. It combines 8MP 4K resolution with dual illumination (white LED and IR), edge-based AI analytics, and WiseStream III codec compression—all powered via standard PoE. This is a fixed-lens camera, not a PTZ; focus on coverage footprint and field of view as primary site-planning factors.

Key Features

• 8MP 4K (3840×2160) at 30fps: Delivers 4K resolution from a 1/2.8" CMOS sensor. Provides enough pixel density to identify faces and vehicle plates at distance, but expect realistic coverage radii of 40–60 feet for readable detail depending on lens and lighting. Not a substitute for zoom when covering large areas.
• Dual Light System—30m white LED + 30m IR: White light produces color images in twilight and early evening, preserving detail that IR alone would lose to grayscale. IR illumination handles complete darkness without relying on amplified low-light modes that introduce noise. Dual approach cuts false positives from shadows and reflective surfaces—operationally significant for outdoor motion-detection workflows.
• 120dB Wide Dynamic Range (WDR): Handles scenes with extreme brightness variance—think backlit entryways, glass doors, reflective pavement. Prevents blown-out highlights or crushed shadows when sun and shade occupy the same frame. Standard WDR on most fixed-lens cameras runs 100–110dB; 120dB is competitive and reduces manual iris adjustments in the field.
• AI Object Classification: On-camera analytics distinguish people from vehicles (with sub-types: car, bus, truck, motorcycle, bicycle). Removes trivial motion triggers from leaves, weather, and shadows—reduces alert fatigue and eases rule configuration. Complements rather than replaces a VMS analytics layer.
• WiseStream III Codec—H.265/H.264 with adaptive bitrate: Hanwha's proprietary smart codec reduces bandwidth by up to 90% versus standard H.264 on static scenes. Real-world savings typically 40–60% depending on scene motion complexity. Stores bitrate data; size matters when deploying dozens of cameras on constrained WANs or into NVRs with limited storage. Supports up to 20 concurrent unicast users per camera.
• IP66/IP67 and IK10 durability: IP66 means direct rain and dust spray—suitable for outdoor walls and eaves. IP67 adds brief submersion tolerance; IP66 does not. IK10 resists impacts up to 20J (equivalent to a 5kg weight dropped from 40cm)—genuine protection against vandalism, though not impact-proof glass dome. Operating range -40°C to +60°C; verify against your site extremes if deploying in arctic or desert climates.
• 3mm Fixed Lens—108° H × 59° V FOV: Wide horizontal angle minimizes blind spots in perimeter and facility monitoring. Fixed focal length means no motorized focus drift or calibration; image remains sharp from installation forward. Tradeoff: no zoom flexibility. Plan site camera placement carefully—this is not a variable-coverage tool.
• Low PoE Consumption—4.5W typical, 10W max: Draws Class 3 power (max 12.95W per IEEE 802.3af). Your standard office PoE switch or injector handles this without strain. Simplifies power distribution; no separate 12VDC supply needed. Budget 13W per camera for power infrastructure planning.
• Enterprise Security—Signed firmware, 802.1X, HTTPS/SRTP, SD card encryption: Covers baseline corporate cybersecurity requirements. Firmware signatures prevent tampering; certificate-based authentication integrates with domain directories. SD card encryption protects edge-stored footage if the camera is physically stolen. Not a substitute for network segmentation, but standard for government and financial deployments.

Integration & Compatibility

The QNE-C9013RL supports ONVIF (Profile S) for third-party VMS compatibility and integrates with Hanwha IP cameras ecosystems via Hanwha WiseNet platform. H.265 and H.264 dual-codec output simplifies deployment into mixed-generation NVRs. Edge analytics (person/vehicle detection, counting, queue management, heatmap) offload processing to the camera, reducing VMS CPU load on large-scale network video recorder deployments. For PoE switch and power planning, assume 13W worst-case per camera.

When to Choose a Different Model

The QNE-C9013RL is a fixed-lens outdoor dome. If your deployment requires zoom capability or pan-tilt coverage, evaluate a PTZ variant in the outdoor camera range. If you operate primarily in low-crime, well-lit facilities (e.g., warehouse interiors), consider a lower-cost 5MP variant to reduce storage footprint. If you need 360° coverage from a single mounting point, multi-sensor or panoramic models offer better efficiency. For indoor retail or office monitoring, a smaller turret or compact dome with PoE will be more discrete and cost-effective.

Deployment Scenarios

Perimeter monitoring (parking lots, building exteriors, fence lines), commercial facilities (loading docks, entryway verification), industrial sites (yard monitoring, equipment bays), traffic management (vehicle counting, queue detection), and public spaces benefit from the combination of 4K detail, dual-light coverage, and edge AI classification. AI object detection is particularly valuable in outdoor settings where traditional motion detection generates noise from vegetation and weather.

Frequently Asked Questions

Q: Does the QNE-C9013RL support PoE or require a separate power supply?

A: It is powered entirely via PoE (IEEE 802.3af Class 3). No separate 12VDC supply is required. Maximum power draw is 10W typical, 12.95W worst-case, so a standard office PoE switch will handle multiple cameras without strain.

Q: What is the real-world coverage range for identifying faces or license plates?

A: With the 3mm fixed lens and 8MP sensor, realistic identification range is 40–60 feet depending on lighting, subject contrast, and scene detail. Use the 108° horizontal field of view as your primary site-planning metric; position the camera to cover your critical zones, then evaluate detail sufficiency from live footage before final install.

Q: How much bandwidth does the QNE-C9013RL consume at 4K 30fps?

A: WiseStream III compression reduces typical bitrate 40–60% versus standard H.264 on static or slow-motion scenes. Exact bandwidth depends on scene complexity and codec profile; request a demo stream from the manufacturer or your integrator to baseline against your WAN capacity before large-scale rollout.

Q: Is the camera compatible with my existing Milestone or Genetec VMS?

A: The QNE-C9013RL supports ONVIF Profile S, which most modern VMS systems (Milestone, Genetec, Axis Camera Station, etc.) recognize. Verify ONVIF driver and codec support in your VMS before purchase. Edge analytics (person/vehicle detection) are an added feature but not required for basic recording.

Q: What happens if the camera is exposed to temperatures below -40°C or above 60°C?

A: Operating range is specified as -40°C to +60°C. Exposure outside this range may degrade image quality or damage internal components. If your site experiences extremes beyond this window, confirm thermal management (heater/cooler kit, shade) with your integrator before final selection.

Q: Can the QNE-C9013RL be wall-mounted or does it require a ceiling mount?

A: The compact aluminum dome design supports both ceiling and wall mounting. Verify bracket compatibility and weatherproofing of the junction during installation; water ingress at the mount is a common field failure point in outdoor domes.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNE-C9013RL is a balanced 4K outdoor play—genuinely useful where dual illumination and edge analytics matter. The white LED + IR pairing is the real differentiator; it eliminates the grayscale mush and false positives that plague pure low-light color amplification in outdoor settings. For a fixed-lens camera at this price point, the 120dB WDR is legitimately competitive, handling backlit loading docks and reflective surfaces that trip up cheaper models.

Technical Highlights:

• Dual Light System (white 30m + IR 30m): Color detail in twilight, switchover to IR in complete darkness. Cuts motion-detection noise from shadows and wind-blown debris—operational win in 24/7 outdoor monitoring where false positives drive analysts crazy.
• WiseStream III H.265 compression: 40–60% bandwidth reduction versus H.264 on typical outdoor scenes. On a 50-camera deployment, that translates to meaningful NVR storage savings and reduced WAN congestion. Real numbers matter; don't assume marketing compression claims without testing your specific scene types.
• AI Person/Vehicle Classification: Reduces trivial motion alerts to reportable events. Combined with edge-based counting and heatmap analytics, supports facility optimization without forcing every alert through the VMS analytics layer.
• PoE Class 3 (4.5W typical, 10W max): Lightweight power footprint. Your standard office switch handles a dozen of these without breaking a sweat. No separate 12VDC infrastructure needed; simplifies cabling in distributed outdoor installs.

Deployment Considerations:

• Fixed 3mm lens is a commitment to wide-angle coverage; placement decisions are non-negotiable. This is not a zoom camera. Map your critical zones before committing to mounting locations.
• Dual light has a runtime cost: white LED burn hours and IR heating in full-darkness scenarios will be higher than passive IR-only designs. Budget for heater/cooler modules if operating in -40°C extremes.
• ONVIF Profile S support is standard, but WiseStream III bitrate optimization is Hanwha-specific. Validate codec handling in your target VMS before committing to a 50-camera rollout.

The QNE-C9013RL is the right call for perimeter and facility monitoring where weather resilience, dual-spectrum coverage, and AI-based alert filtering outweigh the need for zoom flexibility. Parking lots, building exteriors, and industrial yards benefit most; indoor or light-duty retail deployments will find better value in smaller turrets.
