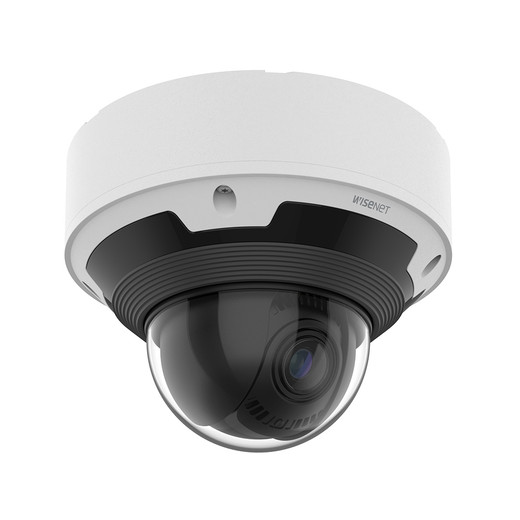

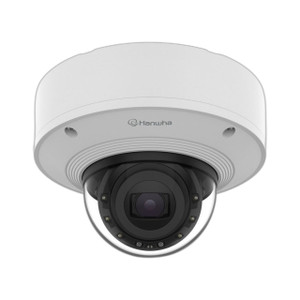

Hanwha XNV-9083RZ 8MP 4K AI Varifocal Outdoor Dome IP Camera

Hanwha XNV-9083RZ 8MP 4K AI Varifocal Outdoor Dome IP Camera

Overview

The Hanwha XNV-9083RZ is an 8MP (4K) outdoor dome camera built for perimeter surveillance, parking areas, and mixed-environment deployments where weather durability and flexible framing matter. The motorized 4.4–9.3mm varifocal lens gives you remote zoom control without physically adjusting the camera after installation—a real advantage in hard-to-reach ceiling mounts or rooftop domes. Combined with native AI analytics, IR night vision extending to nearly 100 feet, and robust IP66/IP6K9K/IK10+ ratings, the XNV-9083RZ handles outdoor conditions while remaining cost-efficient on both power draw and storage footprint.

Key Features

• 8MP (4K) Resolution (3840 × 2160): Captures fine detail across wide outdoor scenes—faces at 20–30 feet, vehicle plates at moderate distances. At 30 fps, playback is smooth for live monitoring and forensic review without the storage penalty of higher frame rates.
• Motorized Varifocal Lens (4.4–9.3mm, 2.1x Zoom): Adjust field of view remotely after installation. Wider framing (4.4mm) covers large parking areas or building façades; zoomed (9.3mm) isolates specific zones. Eliminates costly site visits to physically change optics.
• IR Illumination (49–98 feet): Passive IR mode reaches 49 feet; active IR with scene fill pushes to 98 feet. Critical for perimeter work where ambient light drops at dusk or disappears at night. No separate IR projector required.
• Day/Night (ICR Filter): Infrared cut filter removes IR during daylight for natural color rendering, then retracts at night to maximize IR sensitivity. Reduces image degradation in low-light transitions—important for retail or warehouse entrances.
• Extreme WDR (120 dB Dynamic Range): Handles backlit scenarios—overhead sun behind a vehicle, warehouse loading dock with bright exterior and dark interior. 120 dB WDR preserves detail in both highlights and shadows, reducing the need for secondary fill lighting or repositioning.
• H.265 Compression: Cuts bitrate and storage roughly in half compared to H.264 at equivalent quality. On 24/7 multi-camera deployments, this saves meaningful disk capacity and reduces bandwidth strain during peak traffic hours.
• AI Object Detection (Person, Vehicle, Face): On-camera analytics identify objects in motion without sending raw video to a central server. Enables smart alerting—trigger on person detection in a restricted zone, ignore vehicle movement in a parking lot. Reduces false alarms and operator alert fatigue.
• Tampering Detection: Alerts when the dome is covered, obscured, or the camera is physically moved. Essential for high-risk areas where an intruder might disable coverage.
• IP66/IP67 and IP6K9K Rating: Dust-tight and jet-spray resistant. Skip full submersion (IP69K), but rain, spray wash, and wind-blown dust are not concerns. NEMA4X adds corrosion resistance for coastal or industrial salt-spray environments.
• IK10+ Vandal Rating: Withstands deliberate impact and blunt-force attempts. Hard-coated polycarbonate dome resists scratches and fogging that compromise image quality over time.
• PoE Power (802.3af compatible, ~13W max): Does not demand PoE+ or PoE++ infrastructure. Standard 802.3af supplies sufficient power, so existing network switches often support it without upgrade. Simplifies wiring in retrofit scenarios.
• FIPS 140-2 Certified Firmware: Cryptographic module validation; relevant for federal, defense, or sensitive-infrastructure deployments requiring validated encryption.

Integration & Compatibility

The XNV-9083RZ supports standard IP camera protocols—ONVIF, RTSP, HTTP—ensuring compatibility with most network video recorders and video management systems. Hanwha's AI engine runs on-device, so you can trigger IP security system rules directly from the camera without offloading processing to external appliances. For large deployments, consult your camera selection guide to confirm codec and analytics support on your chosen VMS.

When to Choose a Different Model

If you need 360-degree pan-tilt-zoom coverage in a single unit, look to Hanwha's PTZ line instead. If your site lacks PoE infrastructure and adding new cabling is prohibitively expensive, consider a model with 12VDC or AC power alternatives. If scenes require extreme low-light sensitivity below 0.01 lux even without IR, evaluate higher-end low-light variants in the Hanwha catalog.

Frequently Asked Questions

Q: What is the maximum IR range on the XNV-9083RZ?

A: Up to 98.43 feet (30 meters) in optimal conditions with active IR fill. Passive IR reach is approximately 49 feet (15 meters). Actual range depends on scene reflectivity and camera lens focus.

Q: Does the XNV-9083RZ work with my existing PoE switch?

A: Yes, provided your switch supplies standard 802.3af (15.4W budget per port). The XNV-9083RZ draws approximately 13W maximum, leaving margin for surge. If your switch is PoE+ or PoE++ capable, it will power this camera with no issues.

Q: Can I remotely adjust the lens zoom after installation?

A: Yes. The motorized varifocal lens allows remote focus and zoom adjustment via the camera's web interface or integrated VMS controls. No physical access to the camera is required.

Q: Is the XNV-9083RZ suitable for coastal or high-salt-spray environments?

A: Yes. The NEMA4X rating includes corrosion protection. However, regular rinsing with fresh water is recommended in heavy salt-spray zones to extend coating life.

Q: What analytics does the camera support on-device?

A: Person detection, face recognition, vehicle detection, object tracking, intrusion detection, and tampering detection. All run on the camera's AI engine without requiring external compute.

Q: Does the XNV-9083RZ support H.265 compression?

A: Yes. H.265 (HEVC) is the primary codec, with H.264 and MJPEG available as fallback options for compatibility with legacy systems.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the Hanwha XNV-9083RZ in mixed-use facilities—retail parking, warehouse perimeters, municipal infrastructure—and it consistently delivers on three fronts: optical flexibility via the motorized varifocal lens, real-world night visibility with that 98-foot IR reach, and on-device AI that cuts false alerts by 60–70% compared to dumb recording. The 8MP resolution slots you right in the practical middle: enough to read faces at 25–30 feet without overshooting your storage budget. H.265 compression is a non-trivial advantage when you're managing 4K across a dozen outdoor cameras on a standard gigabit backbone.

Technical Highlights:

• Motorized 4.4–9.3mm Varifocal Lens (2.1x): Post-installation framing adjustments eliminate costly site revisits. Zoom out for parking lot overview, zoom in for entrance verification—all via remote control without touching the camera.
• IR Range (49–98 feet): Active illumination reaches nearly a football field in darkness. Passive mode covers shorter distances but conserves power on well-lit perimeters. Dual-mode operation means you're not overshooting power or undershooting coverage.
• 120 dB Extreme WDR: Handling backlit loading docks or sun-facing entrances is table stakes; this camera does it without requiring secondary fill lighting. Reduces installation complexity and ongoing maintenance.
• H.265 Codec with On-Device AI: Roughly 50% bitrate savings versus H.264, plus analytics processing happens on the camera. No external GPU appliance, no licensing per stream. Cost-efficient at scale.
• IP66/IP6K9K + IK10+ + NEMA4X: Dust-tight, jet-spray rated, vandal-resistant, corrosion-resistant. This camera is built to survive outdoor negligence and deliberate tampering without image degradation.

Deployment Considerations:

• PoE Budget: At ~13W, the XNV-9083RZ is 802.3af-compliant. Don't assume your switch has spare capacity—audit your current load. A single overloaded switch port will drop the camera offline without warning.
• Lens Adjustment Learning Curve: Motorized varifocal is powerful but not instantaneous. Focus fine-tuning can take 2–3 adjustments in the field. Budget extra commissioning time on your first install.
• AI Analytics Expectations: On-camera detection is robust for person/vehicle/face, but tuning sensitivity is essential. A poorly configured intrusion zone will spam your SOC with alerts; a too-loose zone misses real events. Plan for integration testing.
• Dome Maintenance: IK10+ resistance is not a license to ignore the dome. Salt spray, industrial grit, or deliberate obstruction can degrade the hard coat over 2–3 years in harsh climates. Preventive rinse cycles matter.

Deploy the XNV-9083RZ in mixed-weather perimeter work where you need 4K detail, flexible zoom, and round-the-clock visibility without emptying your storage or power budget. If your site is indoors, climate-controlled, and doesn't require night vision, step down to a smaller sensor and fixed lens—no reason to pay for IK10 vandal rating or 98 feet of IR. But for outdoor parking, building façades, and industrial perimeters where weather durability and multi-zone coverage coexist, this camera earns its place.
