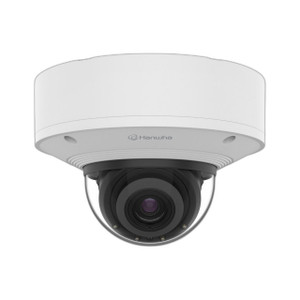

Hanwha PNV-A9081R 8MP 4K Varifocal WDR IR Outdoor AI Dome Camera

Hanwha PNV-A9081R 8MP 4K Varifocal WDR IR Outdoor AI Dome Camera

Overview

The Hanwha PNV-A9081R is a purpose-built outdoor surveillance dome designed for critical infrastructure, city-wide monitoring, and high-security perimeters where both image clarity and edge-based intelligence matter. This IP camera combines 8MP (4K) resolution with a motorized 4.5–10mm varifocal lens, 30-meter infrared range, and integrated AI analytics—all hardened against weather and impact. The PNV-A9081R (often searched as PNV A9081R) operates over standard Ethernet with Power over Ethernet (PoE), meaning you won't need to run separate power lines to the dome.

Key Features

• 8MP 4K Resolution (3840 × 2160): Captures 4K UHD video, reducing the number of cameras required to cover a given area compared to 1–2MP alternatives. This matters when you're covering large outdoor perimeters or need to read faces, plates, or details from distance.
• Motorized Varifocal Lens (4.5–10mm, 2.2× zoom): Field of view adjusts from 27° to 103° (horizontal), letting you zoom remotely without touching the camera. Useful for repositioning coverage after installation without climbing a ladder.
• 30-Meter IR Illumination: Built-in infrared LEDs deliver usable video in complete darkness out to roughly 98 feet. This extends surveillance into nighttime without external lighting, a key factor for unattended outdoor sites.
• 120dB Wide Dynamic Range (WDR): Handles extreme lighting contrasts—such as a bright sky behind a person or vehicle, or deep shadows adjacent to sunlit pavement. Without WDR, backlit scenes wash out or darken unpredictably.
• AI-Based Analytics: On-camera object detection and classification identify persons, faces, vehicles, and license plates. Face mask detection, loitering, directional crossing, and audio analytics reduce false alarms and focus operator attention on genuine events.
• H.265 Compression: Reduces bandwidth and storage by roughly 40–60% compared to H.264, depending on scene complexity. On a 24/7 multi-camera deployment, this difference accumulates into meaningful reductions in network load and NVR storage needs.
• IP66 / IP67 / IP6K9K Weatherproofing: Resists rain, dust, and high-pressure water jets. IP6K9K specifically handles direct spray and wash-down scenarios. Paired with an IK10+ vandal-resistance rating, the dome tolerates impact without housing deformation.
• Dual SD Card Slots: Onboard storage up to multiple terabytes (via two microSD cards) provides local backup if network connection is lost, ensuring video isn't lost during brief outages.
• Gyro-Stabilized Video: Built-in gyro sensor reduces vibration artifacts, keeping image steady even if the dome is mounted on a vibrating structure.
• PoE Power (802.3af compatible): Draws under 13W, so standard 802.3af PoE injection powers the entire camera. No separate 12VDC or 24VAC supplies needed, simplifying installation and reducing clutter at the switch.
• Two-Way Audio: Built-in microphone and speaker support audio analytics and remote communication.
• ONVIF Support: Standards-based ONVIF Profile compliance ensures integration with third-party NVRs and VMS platforms beyond Hanwha's own ecosystem.

Integration & Compatibility

The PNV-A9081R integrates natively with Hanwha's network video recorders and security software. ONVIF standards support ensures compatibility with third-party video management systems (Milestone XProtect, Genetec Security Center, Axis Camera Station, and others). H.265, H.264, and MJPEG codec options provide flexibility when balancing bandwidth against frame rate or archival requirements.

What's in the Box

• Hanwha PNV-A9081R 4K Outdoor Dome Camera
• Quick Start Guide
• Mounting template

When to Choose a Different Model

If your installation requires higher optical zoom (beyond 2.2×), consider a motorized zoom PTZ variant from the Hanwha line. If you don't need AI analytics or can accept lower resolution, a fixed-lens outdoor dome may reduce cost. For indoor applications, choose a compact indoor dome or turret instead.

Frequently Asked Questions

Q: What is the maximum IR range on the PNV-A9081R?

A: The camera delivers usable infrared illumination out to 30 meters (approximately 98 feet) in total darkness.

Q: Does the PNV-A9081R support ONVIF?

A: Yes. The camera supports ONVIF standards for integration with third-party video management systems beyond Hanwha's own NVRs.

Q: Can I adjust the lens remotely on the PNV-A9081R?

A: Yes. The motorized varifocal lens (4.5–10mm) allows remote zoom and focus adjustment via the management interface, so you can reposition coverage without physical access to the camera.

Q: What power does the PNV-A9081R require?

A: The camera draws under 13W and operates over standard 802.3af PoE (Power over Ethernet). No separate power supply is needed.

Q: What compression formats does the PNV-A9081R support?

A: The camera supports H.265, H.264, and MJPEG. H.265 is the most efficient for bandwidth and storage reduction.

Q: Is the PNV-A9081R suitable for outdoor installation in harsh weather?

A: Yes. The camera carries an IP66/IP67/IP6K9K weatherproofing rating and IK10+ vandal resistance, making it suitable for rain, dust, high-pressure spray, and impact in outdoor environments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the PNV-A9081R across municipal and industrial sites where outdoor coverage and event filtering matter equally. The combination of 8MP resolution, 30-meter IR, and on-camera AI analytics makes this dome a solid workhorse for unattended perimeters. The 120dB WDR handles backlighting gracefully—I've watched it maintain usable detail in scenes where lesser domes produce silhouettes. H.265 compression is worth the integration attention, especially at 4K; you'll see meaningful storage and bandwidth savings at scale.

Technical Highlights:

• Motorized Varifocal Lens (4.5–10mm, 2.2× zoom, 27°–103° FOV): Flexibility to adjust framing post-install without re-mounting. The 2.2× range is modest—it won't match a dedicated PTZ—but it's enough to fine-tune coverage over a 50–100 foot perimeter segment without adding equipment cost.
• 30m IR + 120dB WDR: IR reach and dynamic range together handle the hardest scenario: a vehicle approaching at dusk with headlights blasting the dome. The WDR flattens the backlight, and the IR kicks in as ambient fades. Result: readable frames from dusk through midnight.
• H.265 Codec + Dual SD Slots: H.265 cuts file size roughly 45–50% vs. H.264 on high-motion outdoor scenes. Dual microSD provides local failover; if your network link drops for 6 hours, the camera buffers locally and uploads when the connection restores. Critical for remote industrial sites.
• PoE (under 13W) + 802.3af: Low power draw means you can chain multiple cameras on a single 95W PoE switch without over-subscribing. No 12V or 24V power injectors required—cleaner cabling, fewer failure points.

Deployment Considerations:

• The 2.2× zoom is adequate for repositioning but not for reading plates or faces beyond 40–50 feet without running a PTZ line in parallel. If your site needs dedicated plate-capture, pair this camera with a separate PTZ or higher-zoom fixed optic.
• AI analytics (object detection, face mask, loitering) run on-camera. This reduces server load but also means firmware updates are critical—monitor Hanwha's security bulletins, as edge AI stacks can harbor blind spots. Test analytics tuning in your lighting conditions before rolling out to 50 sites.
• Dual SD cards help, but don't rely on them as a primary archive. They're a 12–24 hour buffer, not a substitute for NVR or cloud backup. Loss of an SD card mid-incident is worse than no local storage.

Position the PNV-A9081R for mid-to-large outdoor perimeter coverage where AI filtering and low power draw offset the modest zoom range. It's not a plate-capture specialist, and it's not a compact budget dome. It's a balanced 4K outdoor platform for facilities that need analytics without the complexity or power cost of a PTZ fleet.
